Meiji Techno FQ-5000-US-RL – Annular LED Fiber Optic System (110V)

• Rugged Housing – suitable for mounting or stacking in space constrained places
• High quality design and latest generation
• 110/120V, 50/60Hz Operation
• Daylight – Temperature (5000K – 8300K)
• Advanced Heat Pipe Technology by using metal core printed circuit boards
• Superior cooling system which allows for extreme quiet operation

Meiji Techno’s new FQ-5000 LED series is the next generation of fiber optic illuminators.

FQ-5000 Series illuminators sets the standard for the new generation of LED Fiber Optic Illuminators. These illuminators harness the power of being one of the industry’s highest performing high-output LED’s in alternative to Halogen lighting. This series is designed for optimal thermal management to maximize reliability and optical performance. The FQ-5000 series provides exceptional stability, uniformity, and a more consistent color temperature than traditional EKE light sources.

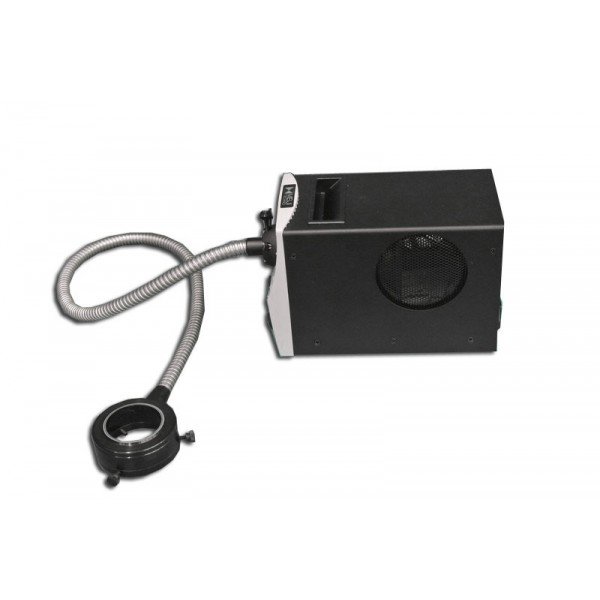

The FQ-5000-US-B1 LED illuminator Power supply has a color temperature of 5000K – 8300K (daylight) and is 80 watts, 110V. Some of its features consists of having continuous dimming, having a multichip design, and having a minimum 80 CRI. The lighting settings are controlled manually. The nosepiece insert attached is 0.625″ (Standard). It is an auto voltage sensing power supply with USA standard electrical cord. It also has a black powder coat finish. The FL150/10 attached is a ring light with a 60mm inner diameter top and 50mm inner diameter bottom. It has SS sheathing and 36″ fiber cables. This Fiber Optic Annular Ring provides 360-degree illumination at a range of focal lengths. A rugged black anodized aluminum housing contains and protects the Borosilicate fiber. This ring light is part of the FQ-152, FQ-152/220, and FQ-5000-RL Annular fiber illumination systems.
