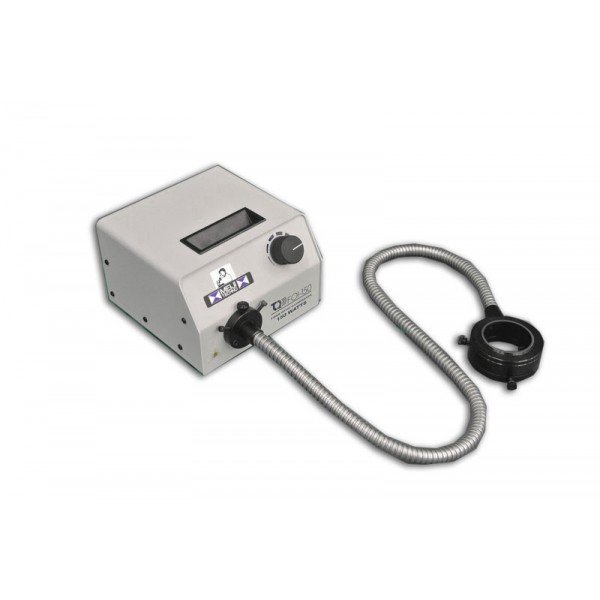

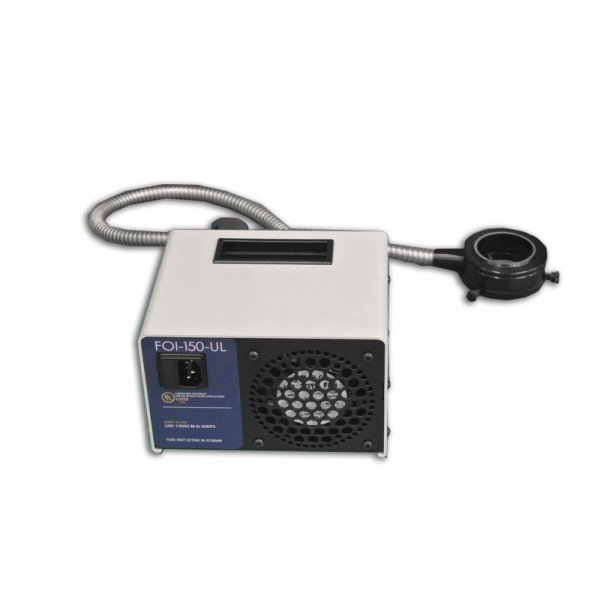

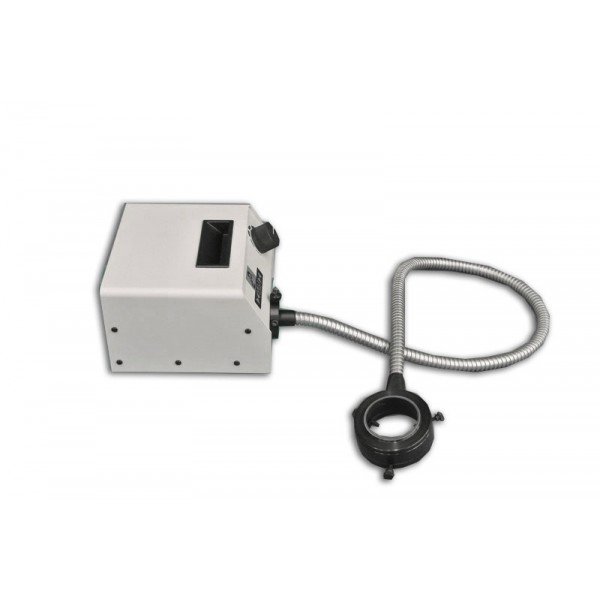

Meiji Techno FQ152 – Annular Fiber Halogen Illumination, 115V, 36 inch Fiber Cables

• High Output 150 watt quartz halogen
• 110/120V, 50/60Hz Operation
• Single on/off intensity control increases lamp life
• Easy lamp access without tools
• Heavy duty all metal construction

FQ150 Series illuminators are used in a wide range of manufacturing, microscopy, metrology, medical, research, and other applications. Users can choose from 150 watt and 250 watt versions. The Fiber Optic Illuminators are often referred to as “Cold Light” Illuminators because they provide high intensity, focused light without the heat typically associated with high intensity lamps. The common uses for the FQ series are: Microscopes and Video Microscopes Borescopes, Industrial Imaging (Machine Vision), and Custom Process and Inspection Equipment (Wire Bonders, Laser Welding).

The FQ150/115 allows a uniform halogen illumination of focused white light which can be used in different applications. Included is an on/off intensity control which allows easy adjustment of intensity. In addition, the lock-in feature allows light guides to stay in place and permits the illuminator to operate on its back without fear of falling off.

The FL150/10 included is a ring light with a 60mm inner diameter top and 50mm inner diameter bottom. It has SS sheathing and 36″ fiber cables. This Fiber Optic Annular Ring provides 360 degree illumination at a range of focal lengths. A rugged black anodized aluminum housing contains and protects the Borosilicate fiber.
