Description

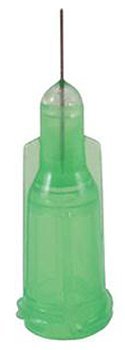

Metcal 934025-TE – TE Series Tip, 34 Gauge, 1/4″ (6.35mm)
The TE series consists of stainless-steel cannula with a double helix Polypropylene hub. This premier line of dispensing needles is burr-free with an electro-polished cannula for unobstructed and consistent material flow. In addition, they are silicone and chloride free. Sold in packs of 50.
| Gauge | 1/4″ (6.35mm) | 1/2″ (12.7mm) | 1″ (25.4mm) | 1-1/2″ (38.1mm) |
| 14 | 914050-TE | 914100-TE | 914150-TE | |
| 15 | 915050-TE | 915100-TE | 915150-TE | |
| 18 | 918025-TE | 918050-TE | 918100-TE | 918150-TE |
| 20 | 920025-TE | 920050-TE | 920100-TE | 920150-TE |
| 21 | 921025-TE | 921050-TE | 921100-TE | 921150-TE |
| 22 | 922025-TE | 922050-TE | 922100-TE | 922150-TE |
| 23 | 923025-TE | 923050-TE | 923100-TE | 923150-TE |
| 25 | 925025-TE | 925050-TE | ||
| 27 | 927025-TE | 927050-TE | ||
| 30 | 930025-TE | 930050-TE | ||
| 32 | 932025-TE | |||
| 34 | 934025-TE |
| Color Coding and Gauge For TE Series and TE Bent Tips | ||||
| Gauge | Color | I.D. (inches) | I.D.(mm) | |
| 14 | Olive | 0.063 | 1.600 | |
| 15 | Amber | 0.054 | 1.371 | |
| 18 | Green | 0.033 | 0.838 | |
| 20 | Pink | 0.024 | 0.610 | |
| 21 | Purple | 0.020 | 0.508 | |
| 22 | Blue | 0.016 | 0.406 | |
| 23 | Orange | 0.013 | 0.330 | |
| 25 | Red | 0.010 | 0.254 | |
| 27 | Clear | 0.008 | 0.203 | |
| 30 | Lavender | 0.006 | 0.152 | |
| 32 | Yellow | 0.004 | 0.102 | |
