Metcal MSA-35L-11 – Smoker Absorber with Carbon Filter (120V)
19 people are viewing this product right now
Original price was: $85.80.$81.50Current price is: $81.50.
Shipping calculated at checkout.
Estimated delivery:3 days
Benchtop Smoke Absorber, Carbon Filter, 120V
- Absorption Capacity Vertical Position: 1.1 m3/min (38 cfm)
- Absorption Capacity Horizontal Position: 0.5 m³/min (18 cfm)
- Space-saving design allows the unit to easily fit on most workstations
- Absorbs lead-free flux fumes and smoke from soldering
- Dual position: vertical (standing up) or horizontal (laying down)
- Horizontal position airflow is approximately 2-times as efficient
- Quiet operation
- ESD- complaint
- Fast and easy filter replacement
- One activated carbon filter included
Guarantee Safe and Secure Payment Checkout
Description
Metcal MSA-35L-11
- Absorption Capacity Vertical Position: 1.1 m3/min (38 cfm)
- Absorption Capacity Horizontal Position: 0.5 m3/min (18 cfm)
- Space-saving design allows the unit to easily fit on most workstations
- Absorbs lead-free flux fumes and smoke from soldering
- Dual position: vertical (standing up) or horizontal (laying down)
Smoker Absorber with Carbon Filter (120V)

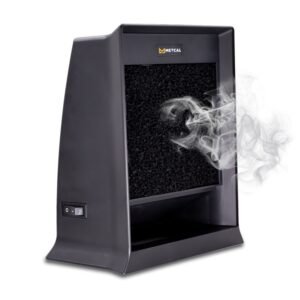

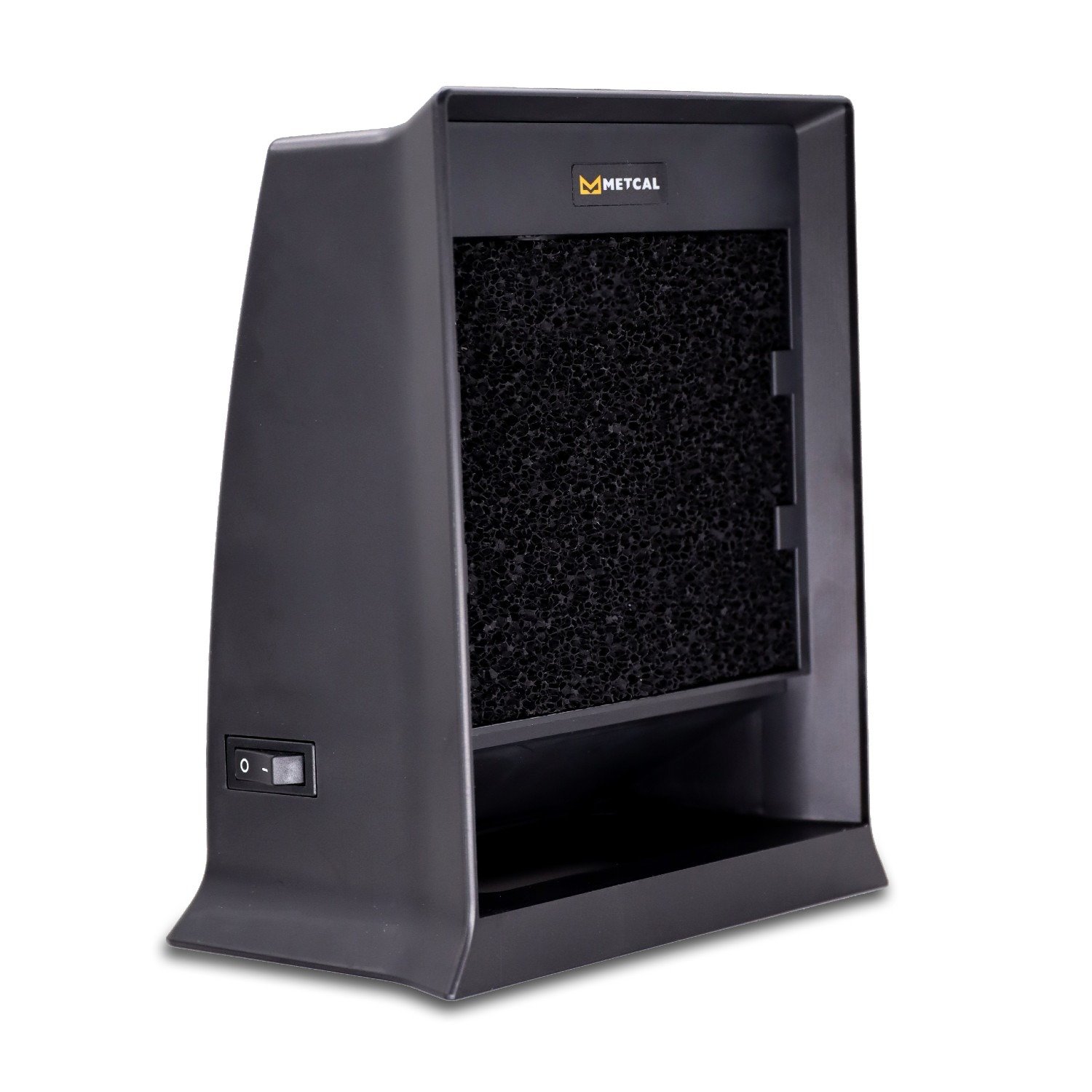

MSA-35L-11 is a safe, space-saving and efficient way to remove smoke and fumes during hand soldering.
While in the vertical position, the MSA-35L-11 has an absorption capacity of 1.1 m3/min (38 cfm) and 0.5 m3/min (18 cfm) while in the horizontal position.
Specifications:
| Model | MSA-35L-11 |
| Input Voltage | 120 VAC |
| Input Frequency | 60 Hz |
| Absorption Capacity Vertical Position | 1.1 m3/min (38 cfm) |
| Absorption Capacity Horizontal Position | 0.5 m3/min (18 cfm) |
| Noise level | 48 dBA |
| Related Input | 25 W |
| Dimensions H/W/D (inches) | 8.54″ (H) x 7.32″ (W) x 4.37″ (D) |
| Certifications | CSA |
| Weight | 0.93 kg / 2.05 lbs. |
Soldering Equipment/Fume Extraction Template | |
|---|---|
| Type (Fume Extraction) | Bench-Top |
| Filter Selection | Carbon Filter |
| Variable Speed Control | No |
| Maximum Vacuum /Suction | 38 cfm |
| Noise Level | 48 dB |
Product General Attributes | |
| Warranty | 1 YEARS |
| Safety Approval | CSA |
| Product Weight | 2.05 LBS |
| Product Height | 8.54 IN |
| Product Length | 4.37 IN |
| Product Width | 7.32 IN |
| Power Supply Voltage | 120V 50/60 Hz |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 2.05 lbs |
|---|---|
| Dimensions | 4.37 × 7.32 × 8.54 in |
