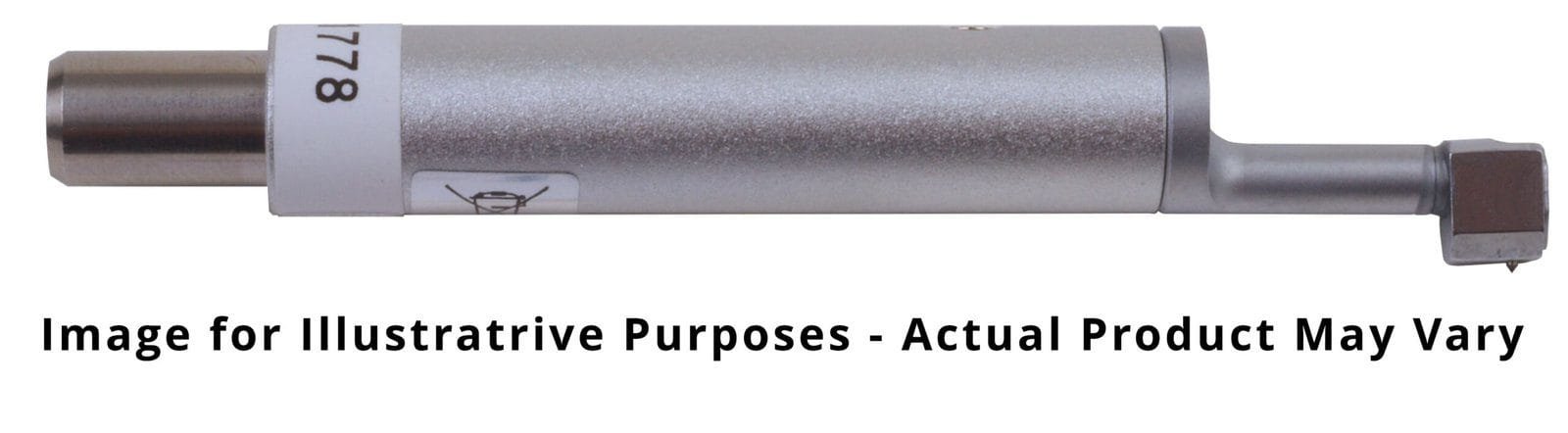

Mitutoyo 178-398 – Gear-tooth Surface Detector for SJ-210 / SJ-310 (4 mN, 5umR/60 degrees)

Name: Mitutoyo 178-398 - Gear-tooth Surface Detector for SJ-210 / SJ-310 (4 mN, 5umR/60 degrees) - NESTES Instruments
SKU: Mitutoyo 178-398
Price: 1490.62 USD
Availability: InStock

Brand:

Mitutoyo

Please, activate Wishlist option to use this widget.

Please, activate Compare option to use this widget.

48 people are viewing this product right now

Original price was: $1,590.00.Current price is: $1,490.62.

Shipping calculated at checkout.

Add to quote

Estimated delivery:3 days

GEAR TOOTH DETECTOR, 4MN

Gear-tooth surface detector
Measuring force: 4 mN
Stylus form (tip radius/tip angle): 4 µmR/90 degrees
Connects to drive unit of SJ-210 or SJ-310

SKU: Mitutoyo 178-398 Tags: Accessories, Precision Measuring Instrument Accessories Categories: Precision Measuring Instrument Accessories

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Description

Reviews (0)

Manuals/Guides

Description

Mitutoyo 178-398

Gear-tooth surface detector
Measuring force: 4 mN
Stylus form (tip radius/tip angle): 4 µmR/90 degrees
Connects to drive unit of SJ-210 or SJ-310

Gear-tooth Surface Detector for SJ-210 / SJ-310 (4 mN, 5umR/60 degrees)

A wide range of optional detectors is available, including detectors for small holes, extra small holes, gear tooth surfaces, and deep grooves.

Model	Measuring Force	Stylus Form (Tip Radius/Tip Angle)	Remarks
178-296	0.75 mN	2 μmR/60˚	Dedicated to the standard/retractable drive unit
178-390	4 mN	5 μmR/90˚	Dedicated to the standard/retractable drive unit
178-387	0.75 mN	2 μmR/60˚	Dedicated to the transverse tracing drive unit
178-386	4 mN	5 μmR/90˚	Dedicated to the transverse tracing drive unit
178-391	4 mN	10 μmR/90˚	Dedicated to the standard/retractable drive unit
178-395	0.75mN	2 μmR/90˚	Dedicated to the standard/retractable drive unit
