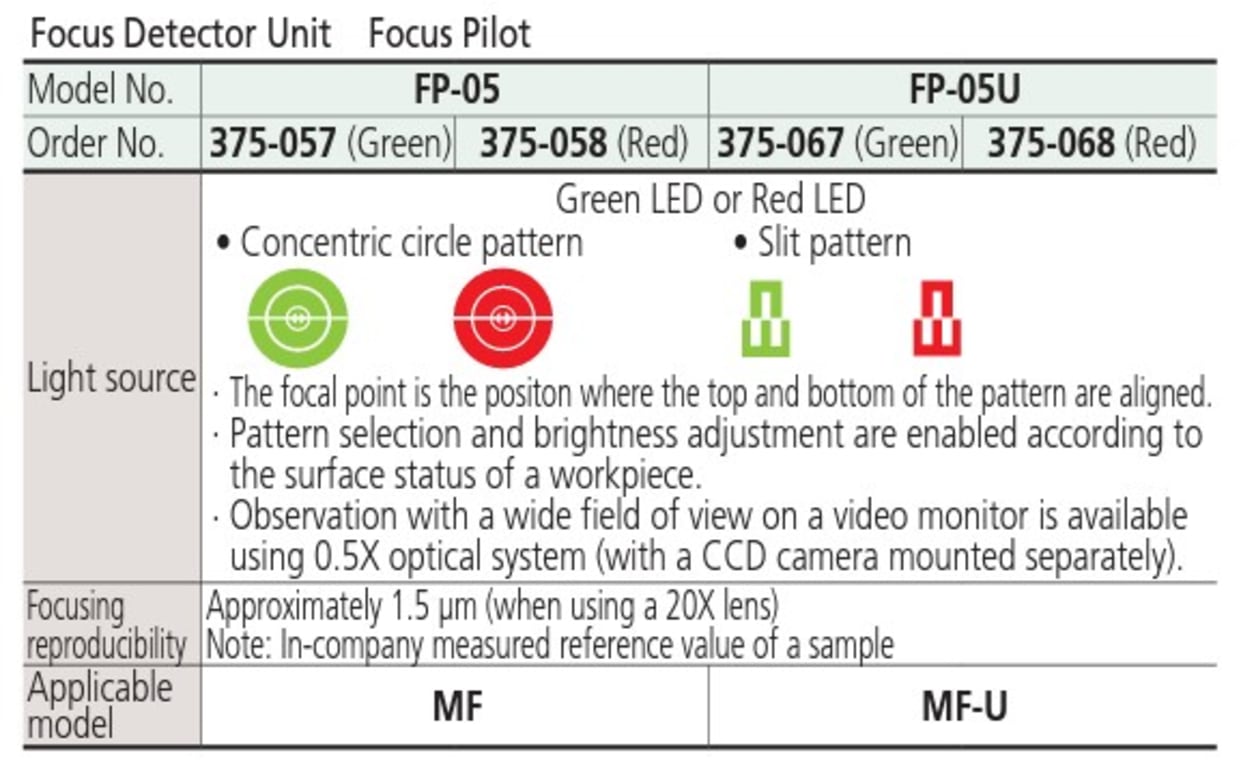

Mitutoyo Focus Pilot

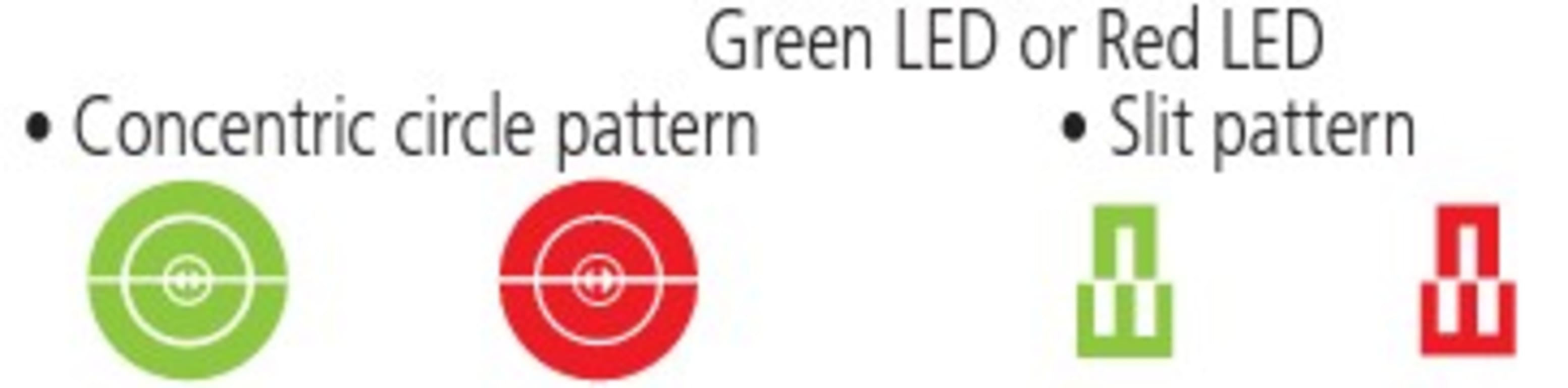

Projecting an LED-generated chart pattern on the target enables easy and high accuracy focusing, effectively reducing human and repetition errors in height measurement. The concentric circle pattern and slit pattern can be switched. The color of the pattern is selectable from green and red to suit workpiece surface characteristics.

• The focal point is the position where the top and bottom of the pattern are aligned
• Pattern selection and brightness adjustment are enabled according to the surface status of a workpiece
• Observation with a wide field of view on a video monitor is available using 0.5X optical system (with a CCD camera mounted separately)
• FP-05 Models for Mitutoyo MF Measuring Microscopes
• FP-05U Models for Mitutoyo MF-U Microscopes
