Motic 1101001904711 – EPI-LED S Fluorescence Attachment

Motic 1101001904711 – EPI-LED S Fluorescence Attachment

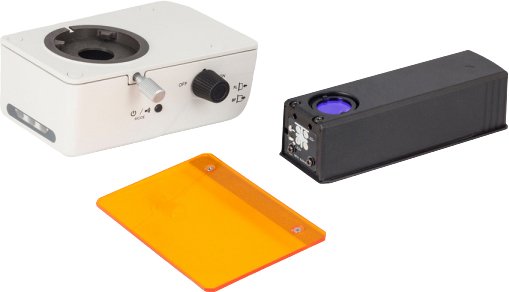

Motic’s Epi-LED S is an LED Fluorescence intermediate module specially designed for the BA210E. It consists of a 3W LED light source, combined with a suitable filter combination.

The module is placed as an add-on between microscope stand and eyepiece tube. A fast change from Bright field to Fluorescence and vice versa is possible by moving the LED module back and forth. A change in excitation is possible by simply exchanging the compact illumination module.

The integrated IR-sensor detects the user and turns off the Fluorescence automatically when the microscope is left, again taking young users into consideration.

Led Light in Microscopy

The advantages of LEDs are numerous. No warm-up period has to be taken into consideration, so the teacher can quickly implement the fluorescence method into the daily curriculum. No special alignment of the illumination is needed. Just switch on the system and start working. A convenient intensity adjustment protects delicate and rare samples from bleaching. The initial costs for LED fluorescence are by far lower than for a mercury based system, and LED lifetime of minimum 20.000 hours reduces running costs significantly.

Epi-LED S Fluorencence attachement – AO

Wavelength (nm)

Epi-LED S Fluorencence attachement – MB

Wavelength (nm)

Epi-LED S Fluorencence attachement – G

Wavelength (nm)
