Myron 753IIOEM-11-PC – Resistivity Digital OEM Monitor/Controller, 0 – 20 MΩ, 115VAC Power Cord

• OEM model – no enclosure
• Sensor sold separately – see accessories
• Digital monitor/controller
• Range: 0-20 MΩ
• 115VAC power cord (8-ft/2.44 meters) with plug and strain relief

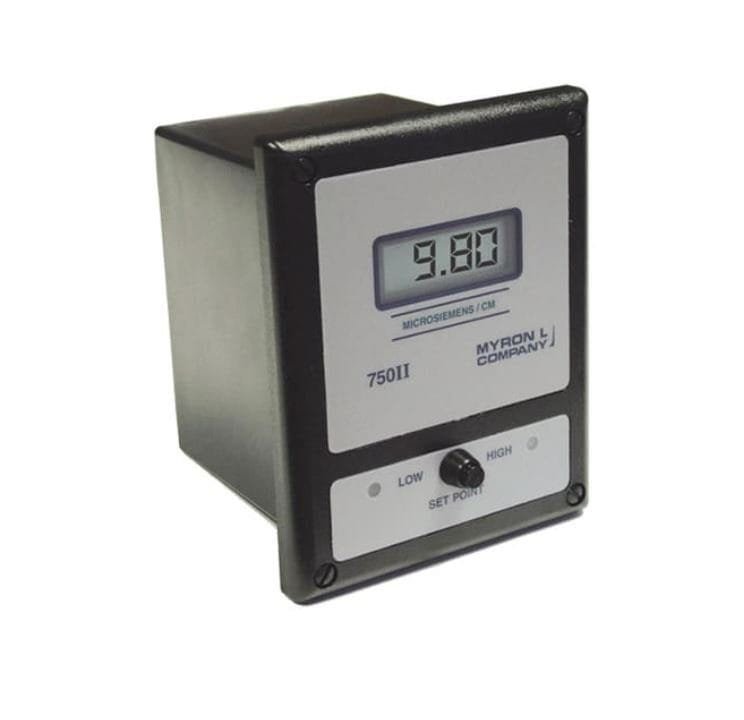

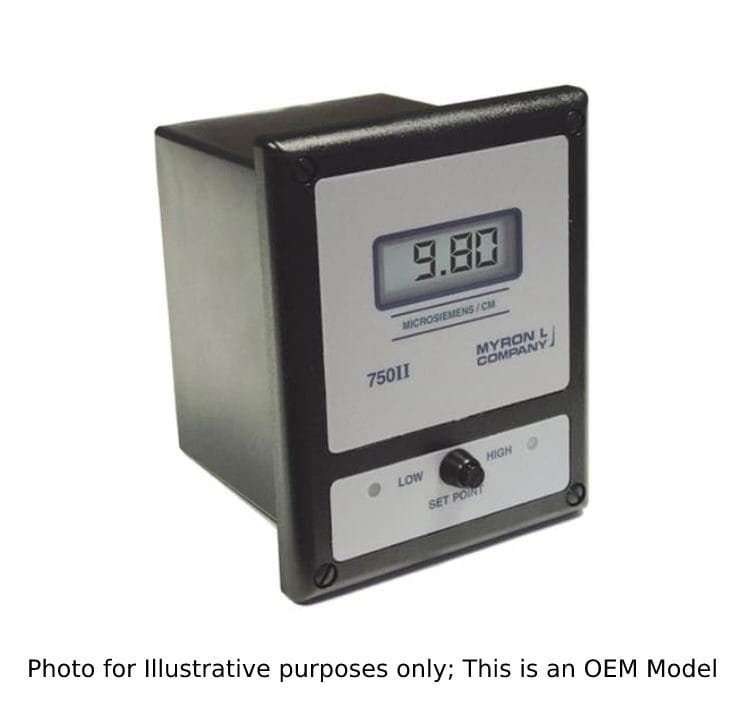

The Myron L 753IIOEM-11-PC is an OEM digital resistivity monitor/controller with a range of 0-20 MΩ and a 115VAC, 8-ft power cord with plug and strain relief. Please note, the sensors are sold separately. An OEM model does not have an enclosure.

The unique circuitry of the Myron L 750 Series II Resistivity Monitor/controllers guarantees accurate and reliable measurements. Drift-free performance is assured by field-proven electronics, including automatic DC offset compensation and highly accurate drive voltage. Since temperature compensation is at the heart of accurate water measurement, all Myron L Monitor/controllers feature a highly refined and precise TC circuit. This feature perfectly matches the water temperature coefficient as it changes. All models were corrected to 25°C. The TC may be disabled to conform with USP requirements.

Built-in electronic calibration allows for fast quality checks without standard solutions. (Note: for maximum system accuracy standard solutions are recommended). A push-to-test button makes setpoint checks easy, while the internal alarm set discourages unauthorized adjustments.

Standard on all controller models is a heavy-duty 10-amp output relay, operating on either increasing or decreasing readings.

Applications

• Deionization (Dl) and distillation ultrapure water treatment systems
• Electronics
• Pharmaceuticals
• Laboratories
• Food Processing
• Plating
• Power Plants
• Boiler Condensate
• Process Control

Resistivity Sensors

All 750 Series II Resistivity models require a CS10 series sensor. This reliable sensor features two integral thermistors to ensure accurate and rapid automatic temperature compensation. The sturdy polypropylene standard bushing is modular for an easy, inexpensive replacement. A PVDF or 316 stainless steel bushing can also be ordered. The metal portion is available in either 316 stainless steel (standard) or titanium. Sensors are sold separately – please see the accessories section.
