Myron CS50-1-TP-25T – Conductivity/TDS Sensor with 1.0 Cell Constant, Temperature Sensor, and 25 ft Cable

• Conductivity/TDS sensor with a temperature sensor of 0-200°C
• Range 0-10 to 0-20,000 µS/ppm
• 25 ft / 8 meter shielded cable (8 wire – conductivity temperature sensor)
• A double threaded body can be used for submersion or insertion
• Dual O-ring seals for high on-stream reliability

The Myron CS50-1-TP-25T is a conductivity/TDS sensor with a temperature sensor and a 25-foot, 8-wire conductivity temperature sensor cable. These sensors are designed for use in general purpose applications up to approximately 20,000 µS/ppm and provide outstanding chemical resistance. Open front-end geometry resists clogging and reduces maintenance requirements to a minimum.

Wetted materials of construction are CPVC on this version with 316 Stainless Steel electrodes as standard. The option to select other metals as electrode materials provide an unequaled chemical resistance capability. Dual O-ring EPR seals increase sensor reliability and service life. The first O-ring absorbs the brunt of the chemical attack, allowing the second O-ring to operate in a protected environment, and ensure continued sealing.

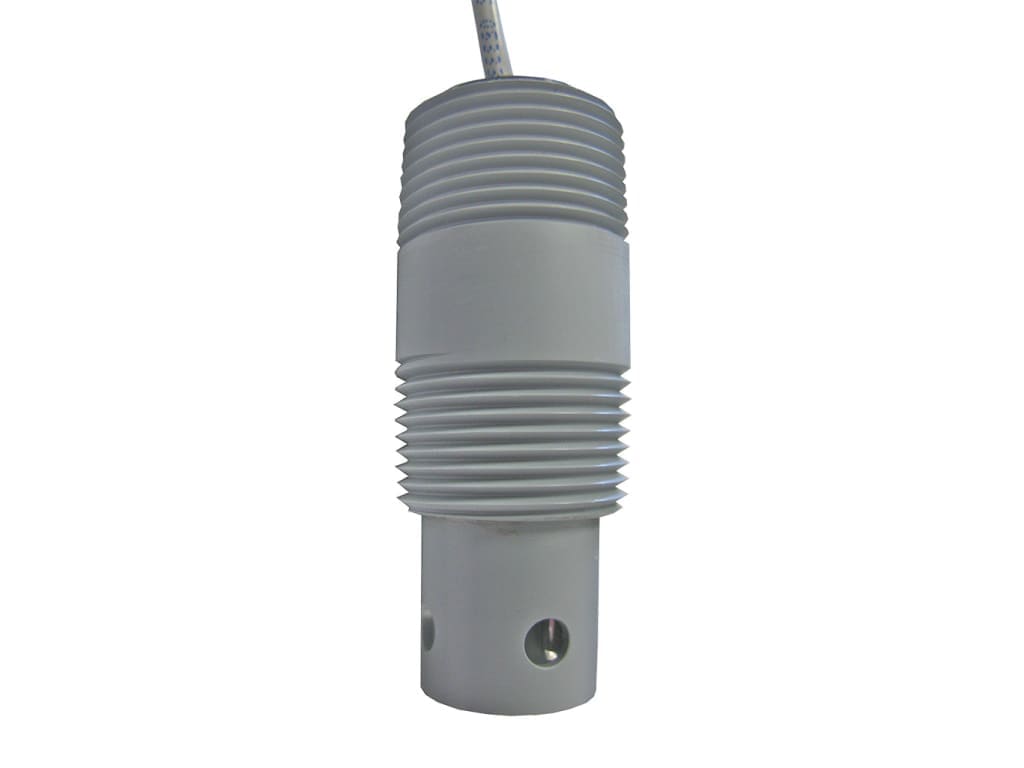

Please note, that this version has a 25 ft, 8 wire cable instead of the standard shown in the image below.
