NK AS3-CCDC-FF – Current Sensing Switch; Dual, 1 N.O., 1 N.C. Solid State, 0.15 A @ 30 VDC, Solid-core, Front Terminal, Standard
- AS3 Series
- Current sensing switch
- Output Rating = 1 N.O., 1 N.C. Solid State, 0.15 A @ 30 VDC
- Case Style = Solid-core, front terminal
- Options = Standard

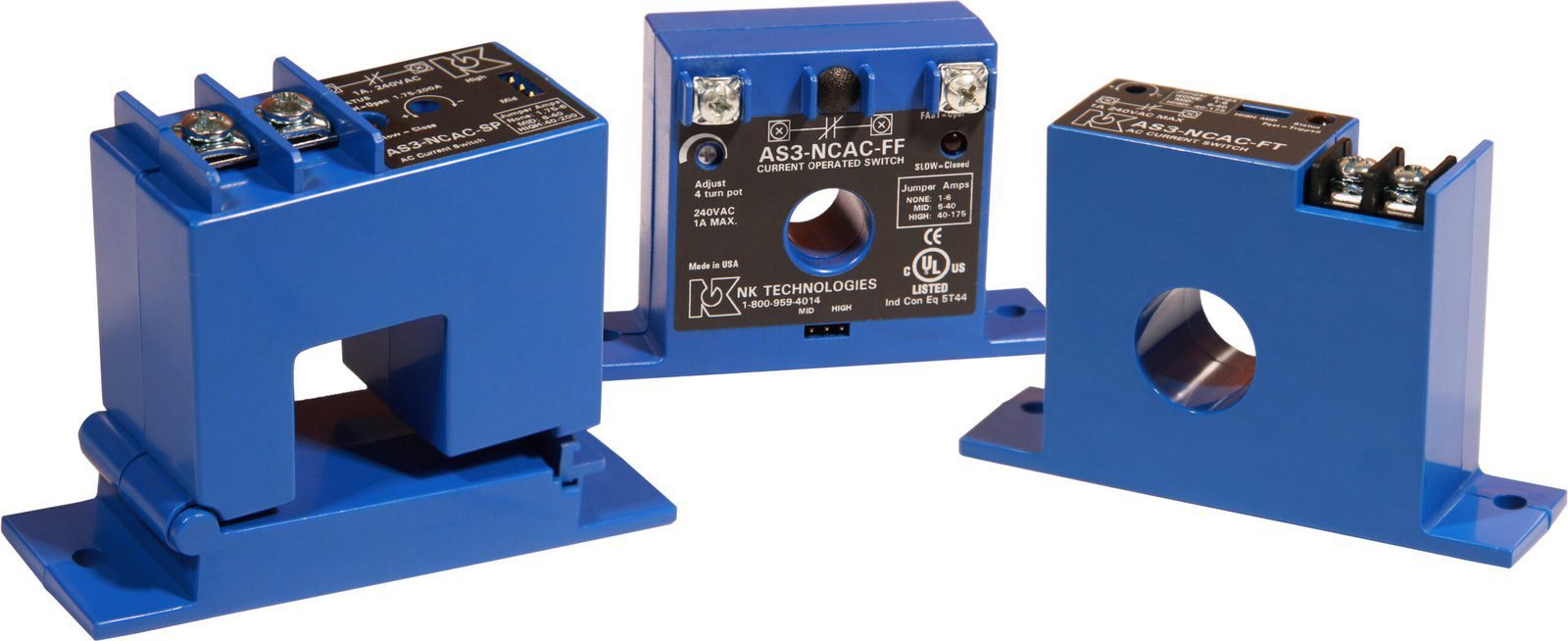

AS3 Series Current Sensing Switches provide the same dependable indication of status offered by the AS1, but with the added benefit of increased setpoint accuracy. A choice of three, jumper-selectable input ranges allows the AS3 to be tailored to an application, providing more precise control through improved setpoint resolution. Self-powering, isolated solid-state outputs, 1-6 A, 6-40 A and 40-200 A input ranges, and a choice of split- or solid-core case are standard.
Note: -15 Model must be mounted on a metal surface 144 sq. in. minimum in size to achieve a 15 amp rating.
Pump Jam & Suction Loss Protection
Current Sensing Switch Applications
Electronic Proof of Flow
- No need for pipe or duct penetrations.
- More reliable than electromechanical pressure or flow switches.
Conveyors
- Detects jams and overloads.
- Interlocks multiple conveyor sections.
Lighting Circuits
- Easier to install and more accurate than photocells.
Electrical Heaters
- Faster response than temperature sensors.
Current Sensing Switch Features
Choice of N.O. or N.C. Solid-state Outputs
- 1 A @ 240 VAC, 0.15 A @ 30 VDC.
- 15 A @ 120 VAC (-15 model).
- 3 A @ 120 VAC (-03 model).
Self-powered
- Cuts installation and operating costs.
Easily Adjustable Setpoint
- Speeds startup.
Solid- or Split-core Case
- Choose the appropriate version for each installation.
LED Indication
- Provides quick visual indiction of contact status.
Built-in Mounting Feet
- Provides the secure installation inspectors require.
UL/cUL and CE Approved
- Accepted worldwide.
AS1, AS3, ASX, ASXP Series Sample Output
Current Sensing Switch Connections
Current Sensing Switch Ordering Information
Sample Model Number: AS3-NOAC-FF-NL
Adjustable AC current sensing switch, normally open AC contacts, solid-core case, without indicating LED. (DIN rail adapters are included)
| (1) | (2) | (3) | |||||||||
| AS3 | – | – | – | ||||||||
| (1) Output Rating | |
| NOAC | Normally Open, 1 A @ 240 VAC |
| NCAC | Normally Closed, 1 A @ 240 VAC |
| NODC | Normally Open, 0.15 A @ 30 VDC |
| NCDC | Normally Closed, 0.15 A @ 30 VDC |
| AADC | Dual, Normally Open, 30 VDC (-FF only |
| CCDC | 1 N.O., 1 N.C. Solid State, 0.15 A @ 30 VDC (-FF only) |
| (2) Case Style | |

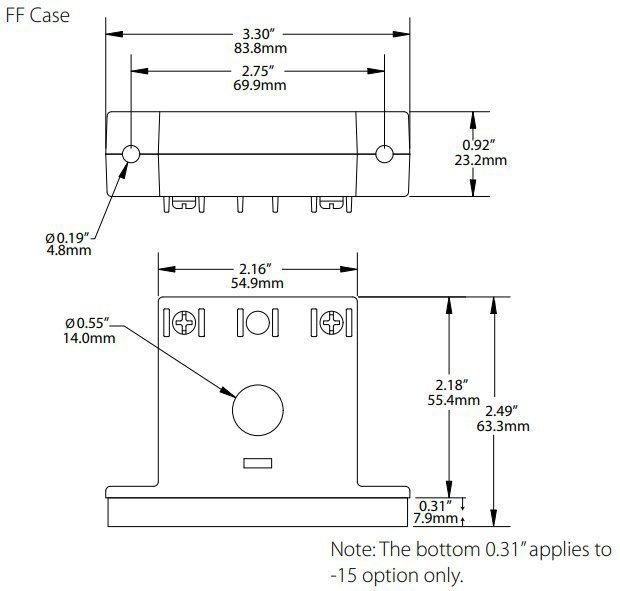

| FF | Solid-core, front terminal |

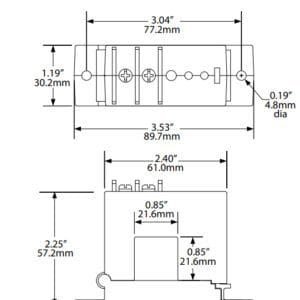

| SP | Split-core |
| FT | Solid-core, top termina |
| (3) Options | |
| NL | No LED |
| 03 | 3 A @ 120 VAC (-FT only, not UL listed) |
| 15 | 15 A @ 120 VAC (-FF only) |
| (Blank is standard) | |
Current Sensors/Current Switches Template | |
|---|---|
| Type (Current Sensors) | DC |
| Maximum Current Range | 150 mA (0.15 A) |
| Adjustable Current | Yes |
| Output Type | Solid State Relay |
| Relay Configuration | NC, NO |
Product General Attributes | |
| Product Height | 2.25 IN |
| Product Length | 4.75 IN |
| Product Width | 3.50 IN |
| Shipping Height | 2.25 IN |
| Shipping Length | 4.75 IN |
| Shipping Width | 3.50 IN |
