AT Series Current Transducers

• Amp ranges: 0-10, 0-20 and 0-50 amp
• Terminals: Front
• Isolation Voltage: UL listed to 1,270VAC (tested to 5KV)
• Input ranges: Field selectable ranges from 0–200A
• Case: UL94 V0 flammability rated

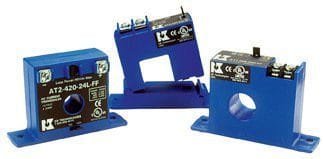

AT Series Current Transducers combine a current transformer and signal conditioner into a single package. The AT Series has jumper selected current input ranges and industry standard 4–20mA, 0–5VDC or 0–10VDC outputs. The AT Series is designed for application on ‘linear’ or sinusoidal AC loads. Available in a split-core case or two types of solid-core cases.

Designed to provide an analog current reading for monitoring, data logging and panel meter applications, these transducers offer a choice of 0–5VDC, 0–10VDC or 4–20mA average responding or True RMS outputs. Self-powered and split-core options make these a cost-effective choice as a PLC input in motor status applications or where VFDs are involved.

Connections:


Notes:

– Pressure plate screw terminals
– 12-22 AWG solid or stranded
– Field adjustable setpoint.
