NK ATR6-420-24L-MS AC Current Transducer
46 people are viewing this product right now
Original price was: $438.90.$390.62Current price is: $390.62.
Shipping calculated at checkout.
Estimated delivery:5 days
0-600 Amp Range, Base Terminals
- Industry Standard Output
- 4–20 mA signal proportional to the AC current.
- Compatible with most automation systems.
- Loop-powered
- Use the “live zero” output to verify proper connections, where the sensor output is 4 mA with no current through the sensing ring.
- Factory Calibrated
- Eliminates zero and span potentiometer adjustment.
- Split-core Case
- Sensing window provides ample space for bus bar, single or multiple conductors
- DIN Rail Mounted Case
- Simply snaps onto DIN rail for secure mounting.
- Designed to Meet UL, CUL and CE Approval
- Accepted around the world
- AC Current Transducer Applications
- Monitor Large Machines
- Water Delivery and Treatment
- Grinding and Shredding
Guarantee Safe and Secure Payment Checkout
Description
NK ATR6-420-24L-MS AC Current Transducer, 0-600 Amp Range

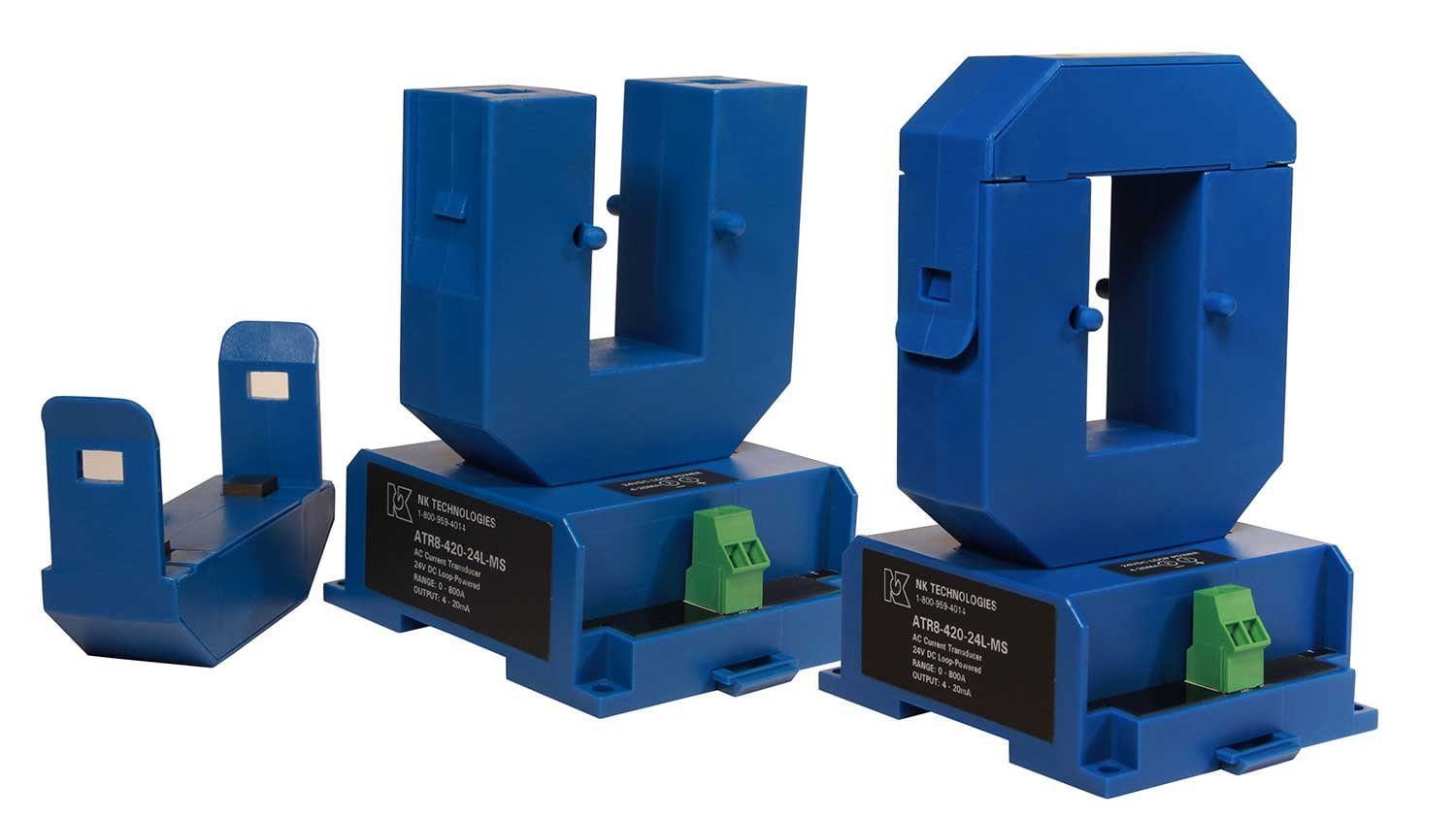

AT/ATR-MS Series Current Transducers combine a current sensing element and signal conditioner into a single package. The large, easy-to-install split-core design allows for installation over existing conductors without the need to disconnect the load, even in applications where there are multiple conductors per phase. Whether installing over existing conductors or in a new control system, installation is very simple and quick. Just remove the top portion of the sensing ring, place the conductors inside, and snap the top back in place. The transducer uses two wires to connect to the power supply or the load, (a programmable logic controller, a panel meter, or a data acquisition system).
AC Current Transducer Connections
Single Transducer Installation
Current Sensors/Current Transducers Template | |
|---|---|
| Maximum Current | 600 A |
| Adjustable Output | Yes |
| Accuracy | 1% from 10–100% of range |
| Response Time | 600 MILISECONDS (0.6 s) |
| Power Supply (Current Sensor) | VDC |
| Output Selection | Other |
Product General Attributes | |
| Unique Features | 0-600 Amp Range |
| Warranty | 5 YEARS |
| Safety Approval | RoHS, UL |
| Data Logging | No |
| Country of Origin | United States |
