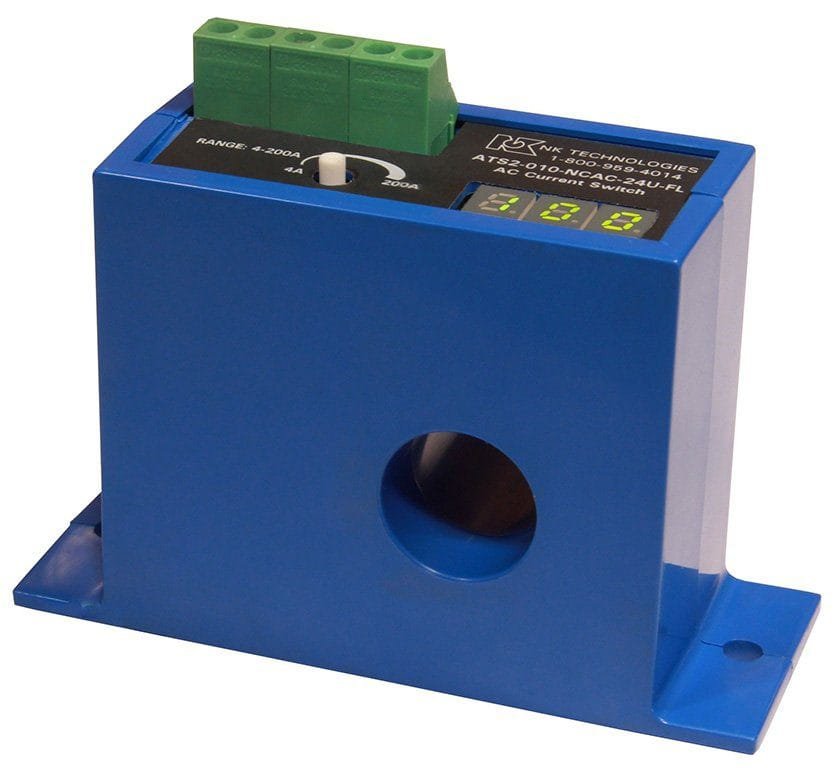

NK ATS2-420-NCAC-24U-FL – AC Current Transducer/Switch with Digital Setpoint Display, ATS Series

NK ATS2-420-NCAC-24U-FL – AC Current Transducer/Switch with Digital Setpoint Display, ATS Series

• ATS series
• AC current transducer/switch with digital setpoint display
• Range = 0-200 Analog, 4-200 switch adjustment
• Analog Signal Type = 4-20 mA (powered by sensor)
• Output Contact = Normally Closed, opens on current rise, AC control only
• Power supply = 24 VAC or DC
• Case style = solid-core

Pump Jam & Suction Loss Protection

AC Current Transducer Applications

Electronic Proof of Operation

• Current operated switches eliminate the need for multiple pipe or duct penetrations and are more reliable than electromechanical pressure or flow switches.

Conveyors

• Detect jams and overloads.
• Interlock multiple conveyor sections.

Pump Control

• Provides signal to measure current and shuts down the pump if the current rises over the setpoint.

Cooling Towers

• Analog monitors time of use and contact opens if a filter clogs.

AC Current Transducer Features

Solid-state Output

• N.O. or N.C. solid-state switch for control circuits up to 240 VAC.
• Compatible with most automation systems.

External Powered

• Allows for higher accuracy.

Easily Adjustable and Precise Setpoint

• Speeds startup.

Analog Output

• Measures the current used at all times.

LED Display

• Provides quick visual indication of where the contact changes. Display flashes on and off when current has exceeded the setpoint.
• Easiest and most accurate setpoint adjustment available.

Built-in Mounting Feet

• Simple, two-screw panel mounting or attach with DIN rail brackets (included).*

UL/cUL and CE Approved

• Accepted worldwide.

AC Current Transducer Connections

Display shows the trip point, and flashes when AC current exceeds that value. A trip point of 15 A is displayed as 015.

AC Current Transducer Ordering Information

Adjustable AC current operated switch/transducer, normally open, solid-core case. (DIN rail adapters are included)
