NK DT1-010-120-U-FL DT Series DC Current Transducers, Unipolar Output
21 people are viewing this product right now
Original price was: $242.00.$215.38Current price is: $215.38.
Shipping calculated at checkout.
Estimated delivery:4 days
0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC or 120 VAC Powered
- Single Range or Three Jumper
- Selectable Ranges
– Reduces set-up time
– Reduces inventory
– Eliminates zero and span pots - Isolation
– Output is magnetically isolated from the input for safety
– Eliminates insertion loss (voltage drop) - Internal Power Regulation
– Works well, even with unregulated power
– Cuts installation cost - Split-core Design/Built-in Mounting Brackets
– Makes installation a snap
Applications:
- Battery Banks
– Monitors load current
– Monitors charging current
– Verifies operation - Transportation
– Measures traction power or auxiliary loads - Electric Heating Elements
– Monitors heater loads
– Faster response than temperature sensors
Guarantee Safe and Secure Payment Checkout
Description
ADT Series Current Transducers combine a Hall effect sensor and signal conditioner into a single package for use in DC current applications up to 400A. The DT unipolar and bipolar models have jumper selectable current input ranges and industry standard 0–20mA, 4–20mA, 0–5VDC or 0–10VDC outputs. Available in split-core or solid-core enclosures. DT Bidirectional Output models produce a +10 VDC signal with current through the aperture in one direction, and -10 VDC with current passing in the reverse direction. Split-core enclosures only Designed to provide an analog current reading for monitoring, data logging and panel meter applications, these transducers offer a choice of 0–5VDC, 0–10VDC or 4–20mA average responding or True RMS outputs. Self-powered and split-core options make these a cost-effective choice as a PLC input in motor status applications or where VFDs are involved.
|
Dimensions
Click images to enlarge
 |  |

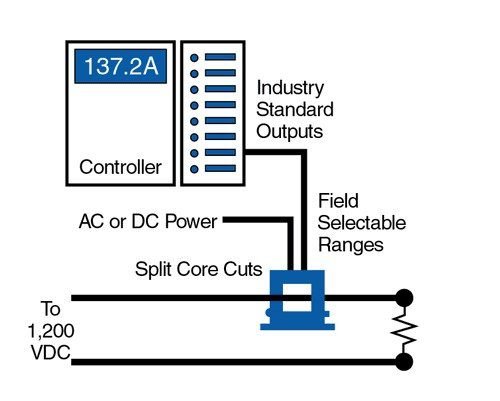

Connections
Click images to enlarge
 Unipolar and Bipolar Output |  Bidirectional Output |
| Notes: Deadfront captive screw terminals. 12-22 AWG solid or stranded. Observe polarity. | |
Current Sensors/Current Transducers Template | |
|---|---|
| Maximum Current | 100 A |
| Adjustable Output | No |
| Accuracy | 2% FS |
| Response Time | 200 MILISECONDS (0.2 s) |
| Power Supply (Current Sensor) | VAC |
| Aperture Size | 19.1 MM |
