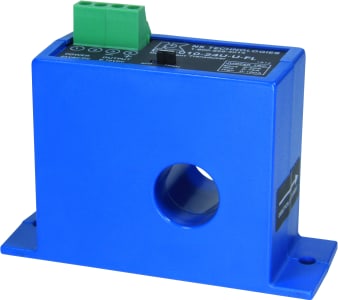

NK DT1-010-24D-BD-SP – DC Current Transducer, DT 4-Wire Split-Core Series; 100 A

NK DT1-010-24D-BD-SP – DC Current Transducer, DT 4-Wire Split-Core Series; 100 A

• Full scale range = 100 A
• Output signal = ±10 VDC
• Power supply = 24 VDC
• Output polarity = bidirectional
• Case style = split-core

DT Series DC Current Transducers combine a Hall effect sensor and signal conditioner into a single package for use in DC current applications up to 400 A. The DT Series DC Current Transducers unipolar and bipolar models have jumper-selectable current input ranges and industry standard 0-20 mA, 4-20 mA, 0-5 VDC or 0-10 VDC outputs. Bidirectional output models provide a single range. These transducers are available in a split-core case.

Battery Charging System – Bidirectional Output

DC Current Transducer Applications

Battery Banks

• Monitor load current.
• Monitor charging current.
• Verify operation.

Transportation

• Measure traction power or auxiliary loads.

Welding Processes

• Measure the current used while welding.
• Log processing time and number of operations.

Photovoltaic Panels

• Monitor panel or string current output.
• Monitor combiner box output.

DC Current Transducer Features

Single Range or Three Jumper-selectable Ranges

• Reduces set-up time.
• Reduces inventory.
• Eliminates zero and span pots.

Isolation

• Output is magnetically isolated from the input for safety.
• Eliminates insertion loss (voltage drop).

Internal Power Regulation

• Works well, even with unregulated power.
• Cuts installation cost.

Split-core Design/Built-in Mounting Brackets

• Makes installation a snap.

UL/cUL and CE Approved

• Accepted worldwide

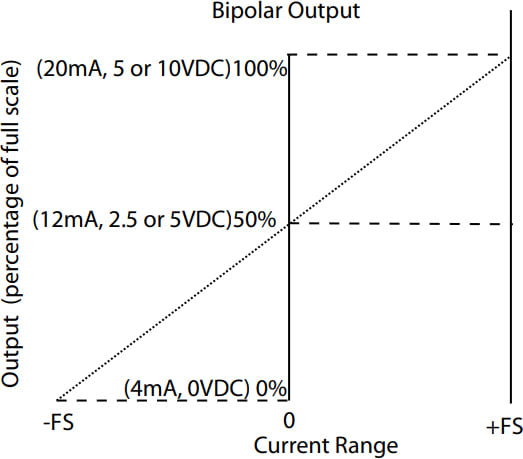

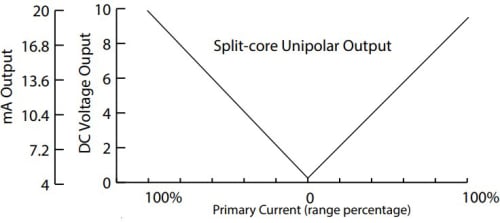

DC Current Transducer Output

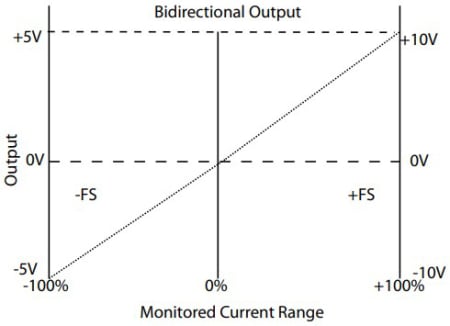

DT Series Bidirectional Output Models

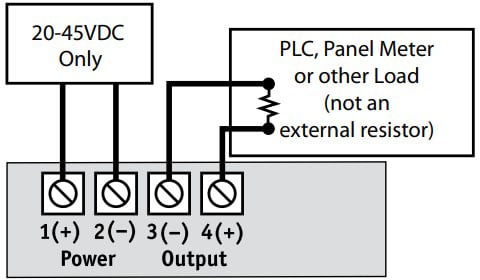

Notes:
Deadfront captive screw terminals.
12-22 AWG solid or stranded.
Observe polarity.
