Description

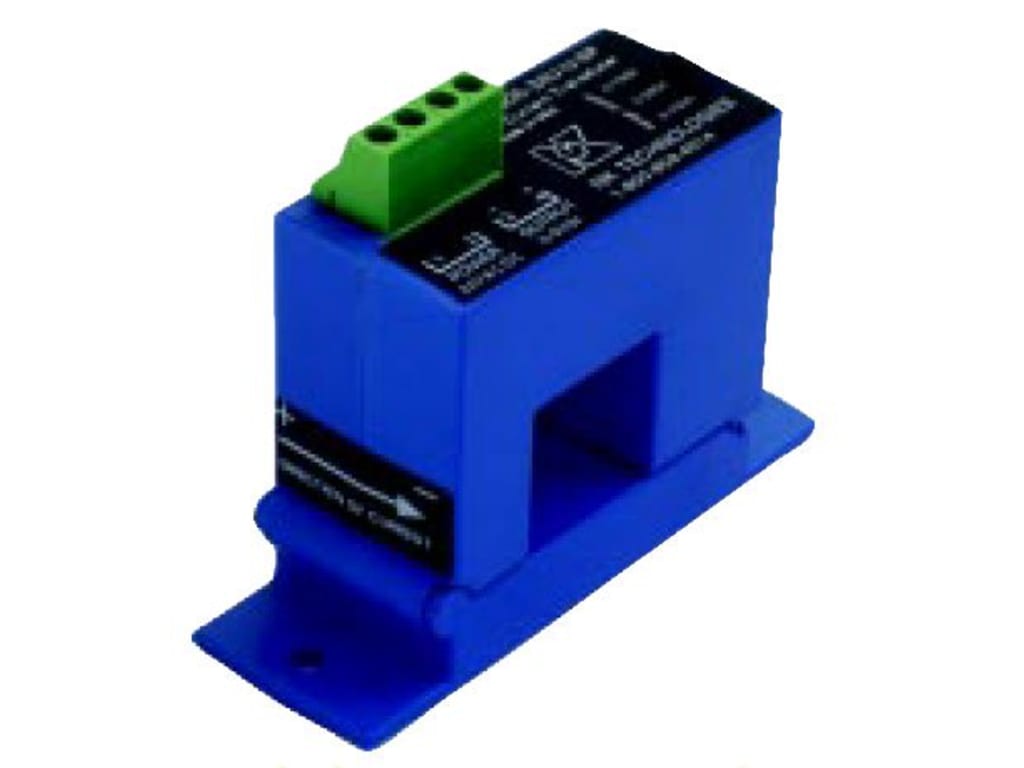

NK DT Series DC Current Transducers, Bipolar Output, Split-Core
NK DT1-010-24U-BP-SP 0-50, 0-75 and 0-100 Amp Ranges, 24 VAC/VDC Powered
- Output is magnetically isolated from the input for safety.
- Eliminates insertion loss (voltage drop)
- Reduces inventory
- Eliminates zero and span pots
Professional system for finding grounding cables and pipes
‘DT’ Current Transducers from NK Technologies combine a Hall effect sensor and signal conditioner into a single package for use in DC current applications up to 400A. The DT Series has jumper selectable current input ranges and industry standard 0–20mA, 4–20mA, 0–3VDC, 0–5VDC or 0–10VDC outputs. Available in solid or split-core packages.
Applications
Battery Banks
- Monitors load current
- Monitors charging current
- Verifies operation.
Transportation
- Measures traction power or
- auxiliary loads.
Electric Heating Elements
- Faster response than
- temperature sensors.
Connections
Know your power . . . because with knowledge comes control.
Current Sensors/Current Transducers Template | |
|---|---|
| Maximum Current | 100 A |
| Adjustable Output | No |
| Accuracy | 1% FS |
| Response Time | 100 MILISECONDS (0.1 s) |
| Power Supply (Current Sensor) | VAC/DC |
| Aperture Size | 21.6 MM |
