Oberon 100 Cal TCG Arc Flash Coat with Escape Strap

The Oberon 100 Cal TCG Ultralight Arc Flash Coats with escape straps are ultralight coats made from a proprietary blend of arc rated, inherently flame resistant, aramid fibers. The coat features reflective day/night striping on arms and legs for increased visibility, knit cuffs, a dual-stage zipper front closure, and an escape strap for both shock and arc flash rescue. The 100 Cal TCG Ultralight Arc Flash Coats meet ANSI/ISEA 125 Level 2 conformity with an arc rating of 100 cal/cm², NFPA 70E Arc Flash Category 4 or CSA Z462 Category 5. Please refer to your applicable standards for specific selection criteria. An arc flash risk assessment must first be completed by the employer before the appropriate protection level can be determined.

Tip: Update arc flash PPE specifications to require all new equipment purchases to include an escape strap feature or incorporate an arc-rated vest with a built-in escape strap that can be worn over any garment.

Please refer to the sizing guide in the documents section for height and size specifications.

• Configuration: Hip Length Coat with Escape Strap
• Arc rating: 100 cal/cm²
• NFPA 70E Arc Flash PPE Category: 4
• CSA Z462 Category: 5
• Color: Black
• Export USMCA Compliant: Yes

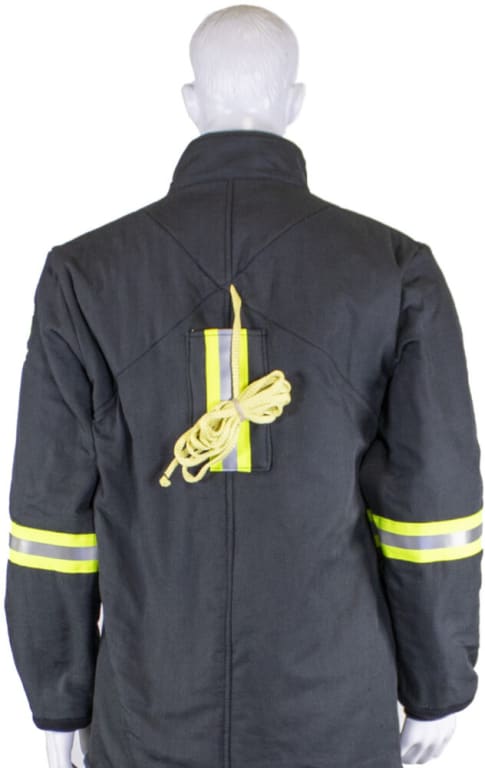

• Escape strap: Non-conductive 10ft Kevlar rope (sewn inside coat using continuous loop pattern around shoulders); For rescue from shock or arc flash
