Pace 6993-0330 – Wave Soldering Tip Kit for TD-200 Iron

• Wave soldering tip kit with the most popular Standard series tips
• For use with Pace TD-200 soldering iron
• See below for more information

The Pace 6993-0330 is a wave soldering tip kit with the most popular Standard series tips. These tips are compatible for use with the TD-200 soldering iron.

The following items are included with the 6993-0330:

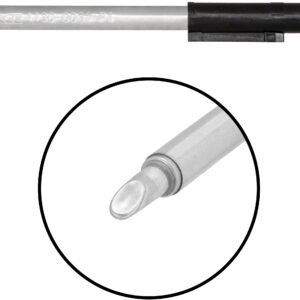

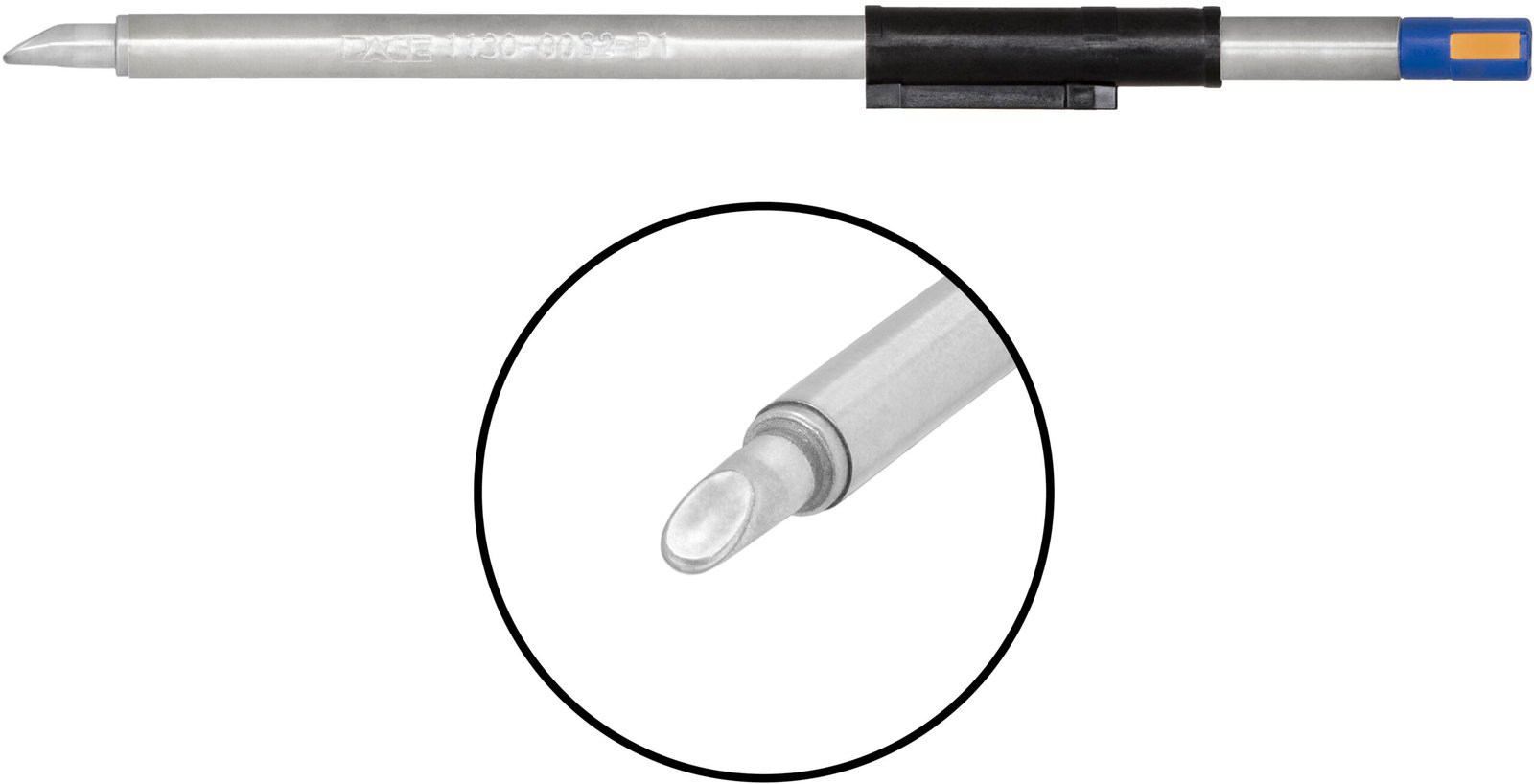

• Miniwave (3.05mm) (1130-0032-P1)
• Angled MiniWave (3.05mm) (1130-0033-P1)

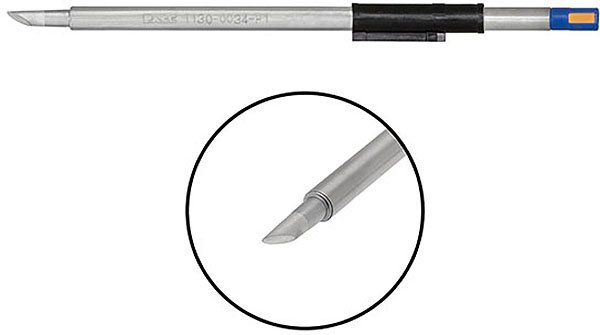

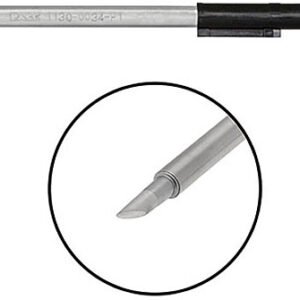

• Single Sided Chisel Tip (3.05mm) (1130-0034-P1)
• Angled MiniWave Surface Mount Installation Tip (2.11mm) (1130-0035-P1)
• 1/4″ Flat Blade (6.35mm) (1130-0037-P1)
• Angled Micro-Wave Tip (1.10mm) (1130-0045-P1)
• Miniwave Special Tip (1130-0049-P1)

Pace also offers two other tip kits for use with its TD-200 iron. They are as follows:

• Micro soldering tip kit (6993-0329)
• 1/64″ Conical Sharp (0.40mm) (1130-0002-P1)
• 1/64″ Conical Sharp Bent 30˚ (0.40mm) (1130-0003-P1)
• 1/64″ Conical Sharp Extended (0.40mm) (1130-0004-P1)
• 3/128″ Conical Sharp Tip (0.58mm) (1130-0027-P1)
• 1/128″ Conical (0.20mm) (1130-0036-P1)
• MicroFine Conical Tip (0.25mm) (1130-0042-P1)
• 1/128″ Conical Special (0.20mm) (1130-0050-P1)
• Chisel tip kit (6993-0331)
• 3/64″ 30˚ Chisel (1.20mm) (1130-0008-P1)
• 13/64″ Extra Large Chisel (5.15mm) (1130-0010-P1)
• 1/32″ 30˚ Chisel (0.80mm) (1130-0012-P1)
• 3/32″ 30˚ Chisel (2.38mm) (1130-0013-P1)
• 1/8″ 90 Chisel (3.18mm) (1130-0020-P1)
• 1/8″ 90 Chisel Extended Tip (3.18mm) (1130-0023-P1)
• 5/32” 45° Chisel (4mm) (1130-0051-P1)
