Pace 8007-0613 – Package with ST125 Rework Station and ADS200 Soldering Station

• Package with ST125 and ADS200
• ST125 is a single channel SensaTemp rework station with SX100 desoldering iron
• ST125 has soldering, desoldering and hot air functionality
• ADS200 is a single channel AccuDrive station with TD200 iron and standard tool stand
• ADS200 also comes with 1130-0019-P1 tip (1/16” chisel)

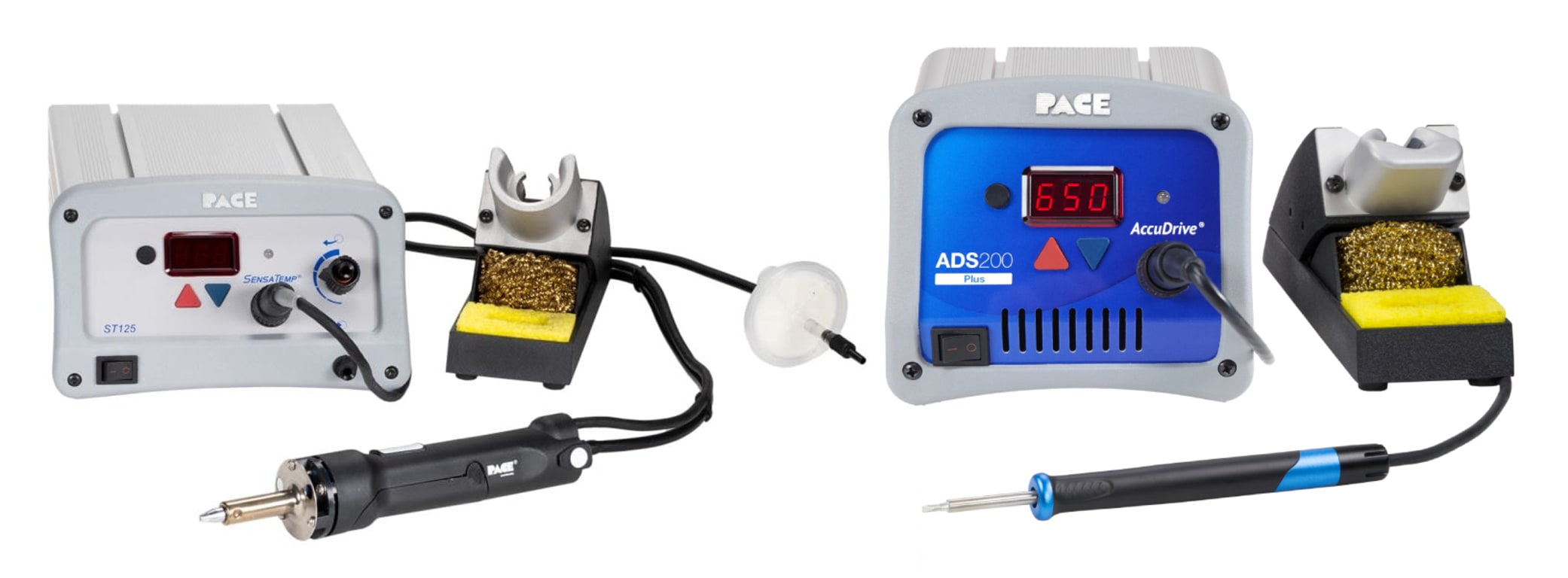

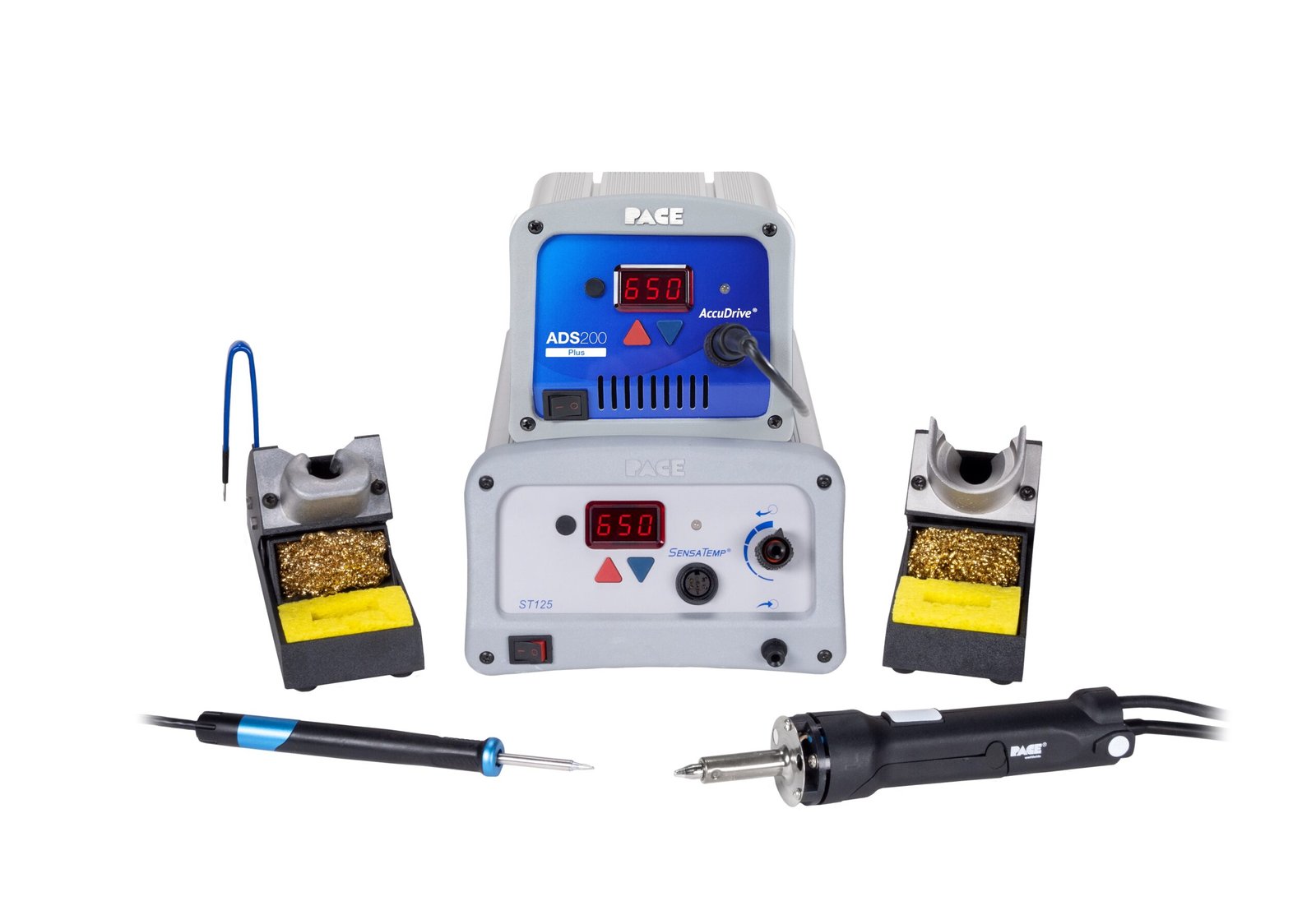

The Pace 8007-0613 is a package containing the ST125 and ADS200 stations, providing users with a full featured rework system.

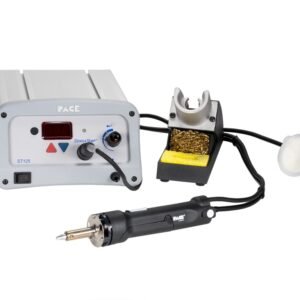

The ST125 has soldering, desoldering and hot air functionality and comes with the SX100 desoldering iron. It uses SenaTemp heating technology and is compatible with several SensaTemp handpieces. The system comes standard with PACE’s patented Hi-Flo Snap-Vac Pump technology to ensure quick, clean removal of solder from any through-hole joint or surface land.

Compatible tips

This station comes with an SX-100 desoldering iron and one 1121-0931 nozzle; 0.04 x 0.09” (note: one tip, not a five pack). Compatible tips can be viewed through the links below.

• Standard usage
• Surface mount

Compatible handpieces

The ST125 utilizes Pace’s SensaTemp technology and is compatible with the handpieces below. The names below are clickable and will take you to a page for that particular item.

• PS-90 soldering iron
• SX-100 Sodr-X-Tractor desoldering iron
• TJ-70 ThermoJet hot air handpiece
• TT-65 ThermoTweez tweezer

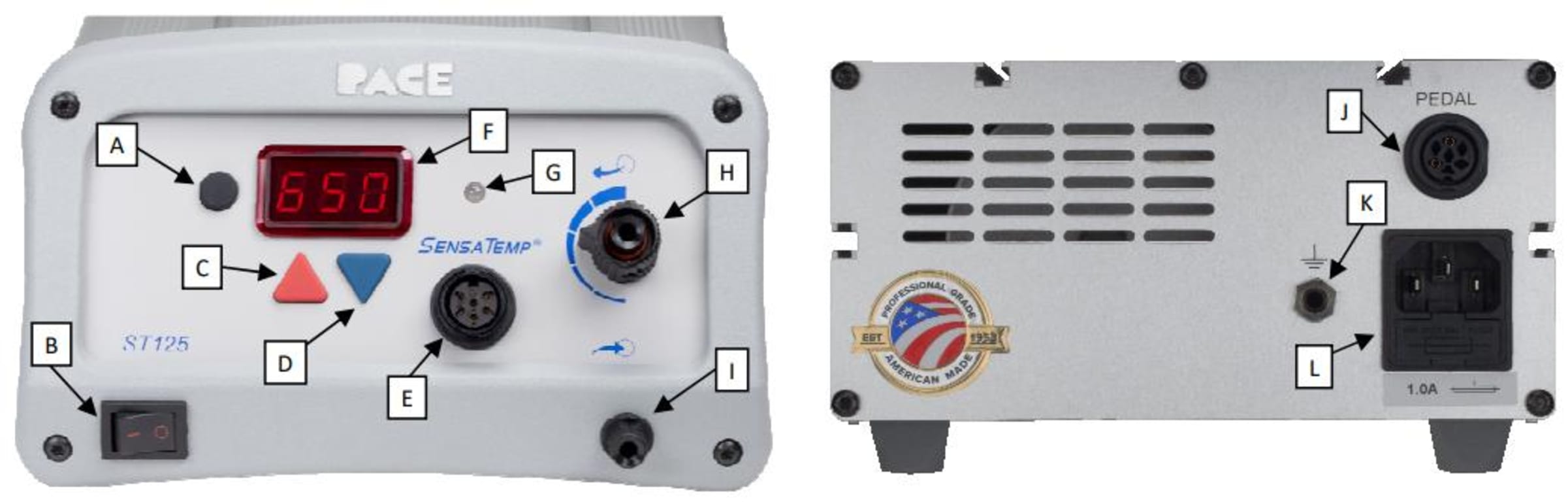

A: Program button

B: Power switch

C: Up arrow

D: down arrow

E: Power receptacle

F: Display

G: Digital control LED

H: Air pressure assembly

I: Vacuum port

J: Foot pedal receptacle

K: Ground jack

L: Power inlet and fuse

The ADS200 in a single channel soldering station and includes the TD200 iron, standard tool stand and an 1130-0019-P1 tip (1/16” chisel). The ADS200 uses Pace’s new AccuDrive heating technology and is also compatible with the MT-200 tweezer.

Compatible tips

The TD-200 soldering iron is compatible with the two tip series linked below. You can also view part numbers, drawings and dimensional information for each by clicking here.

• Blue series – Standard
• Blue series – Ultra

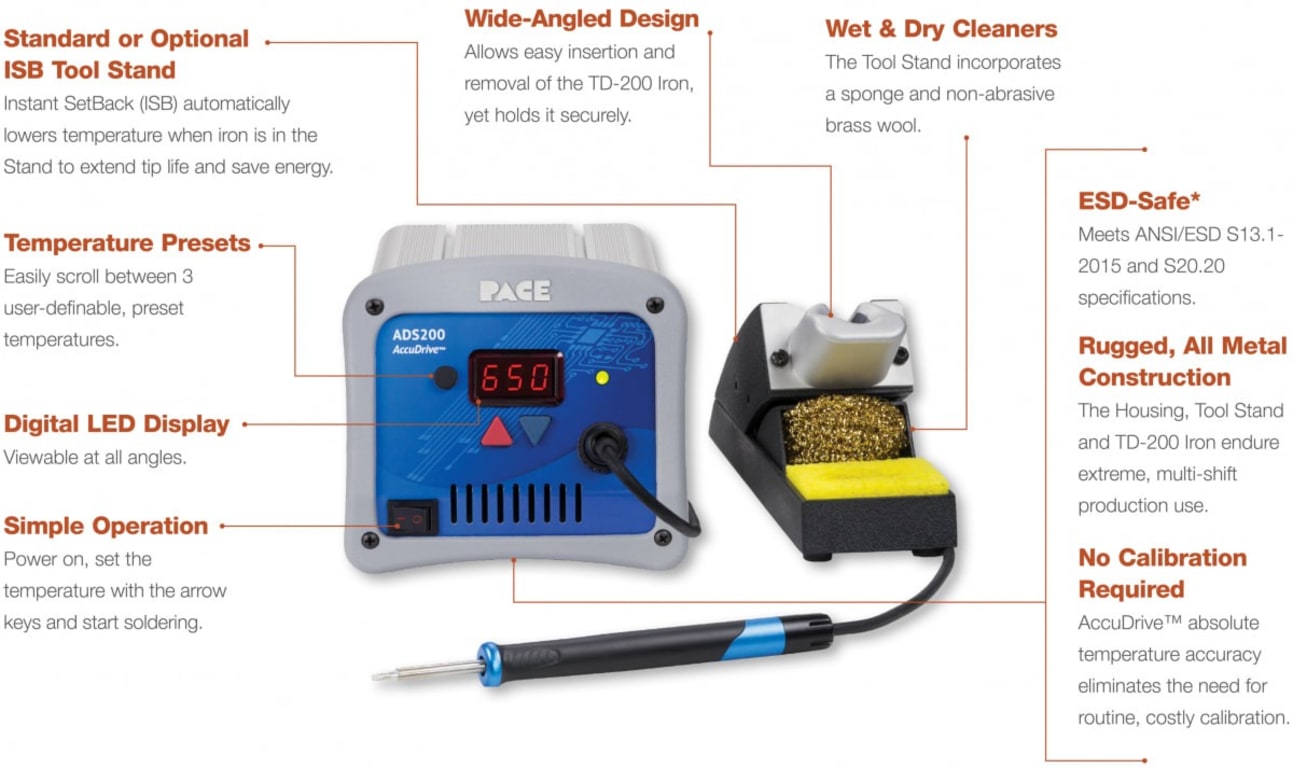

PACE’s ADS200 is a high power (up to 120 Watts), yet low-cost professional soldering station for serious cell-phone repairers, electronics techs, engineers, DIYers & production solder techs. It features the groundbreaking TD-200 Tip-Heater Cartridge Soldering Iron, with its sleek and ergonomic aluminum handle designed to stay cool and comfortable during continuous production soldering. Blue Series Tip-Heater Cartridges integrate a high accuracy sensor with a robust heater, delivering up to 120 Watts of pure power.

At the heart of the ADS200 lies PACE’s new AccuDrive temperature control technology, which delivers unsurpassed thermal performance and highly accurate temperatures, without the need to change tip cartridges or calibrate. Its advanced electronics provide instantaneous load sensing and on-demand power to quickly reflow solder joints at the lowest, safest temperature required, regardless of the mass of the application. Intended for extreme, multi-shift production use, the ADS200 features a rugged, all-metal design, including housing, soldering iron and tool stand. The system is intuitive and easy to operate – just power it on, set the temperature with arrow keys and start soldering. No training required.
