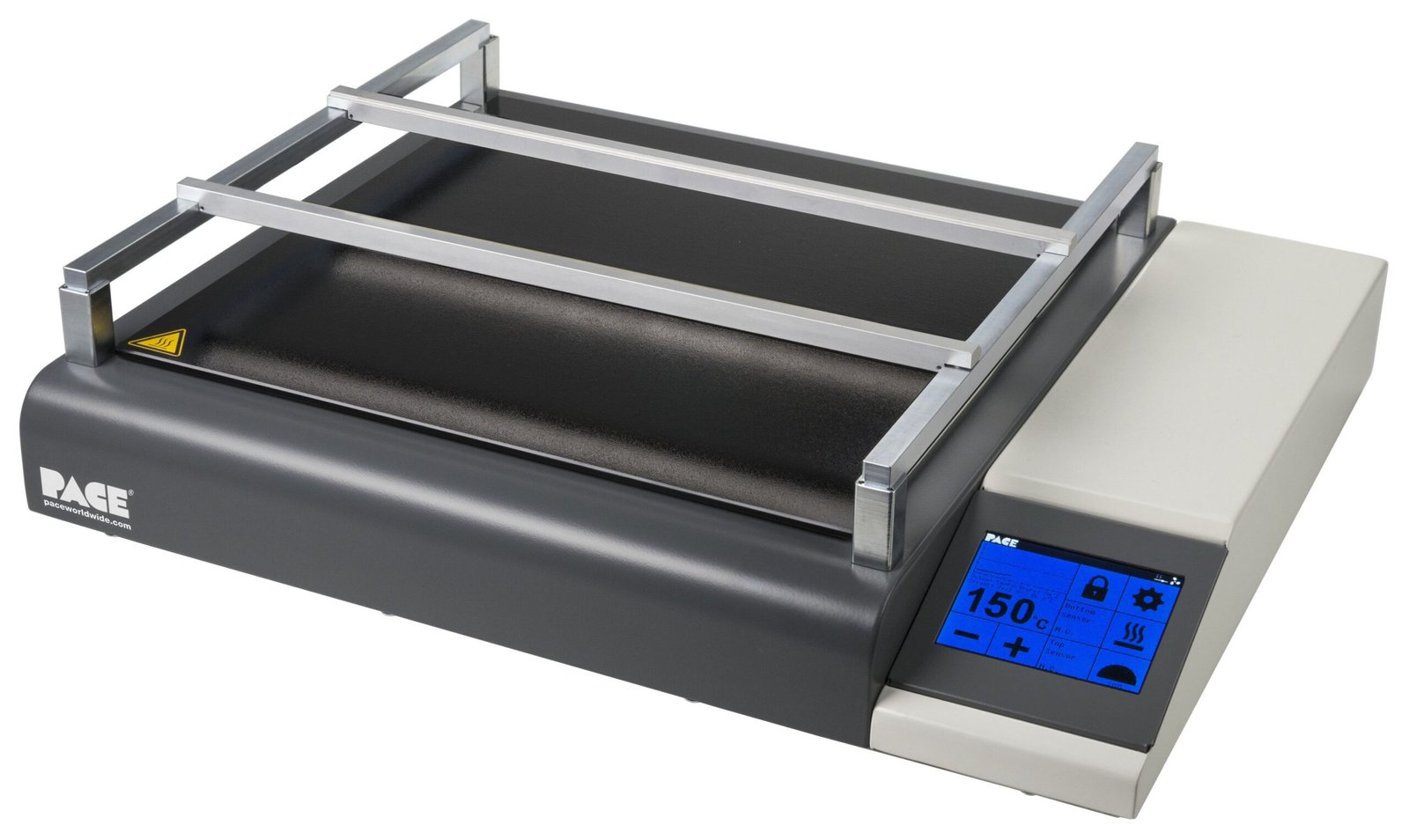

Pace PH-100 – Low Profile PCB Preheater

Name: Pace PH-100 - Low Profile PCB Preheater - NESTES Instruments
SKU: Pace PH-100 8007-0572
Price: 2443.41 USD
Availability: InStock

Brand:

Pace

Please, activate Wishlist option to use this widget.

Please, activate Compare option to use this widget.

40 people are viewing this product right now

Original price was: $2,572.02.Current price is: $2,443.41.

Shipping calculated at checkout.

Add to quote

Estimated delivery:5 days

PH-100, 115V A16

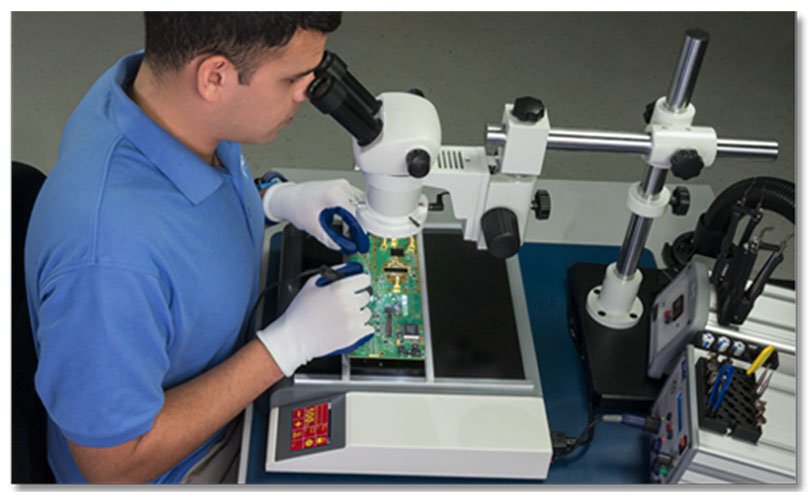

Sleek, incredibly low working height improves operator comfort and reduces fatigue, perfect for under microscope
Intuitive 3.5″ resistive Touch Screen Display provides easy adjustment of all operational, temperature and power settings
Customize color scheme and button layout at will
4 Robust IR Heating Elements provide 1600W of power
Large 300mm x 300mm (11.8″ x 11.8″) heating area
Efficiently transmits heat without emitting irritating visible light as other IR systems do
Glass-ceramic surface re-emits heat in uniform manner, providing fast and even preheating with minimal shadowing
Closed-Loop Temperature Controlled by either internal sensor or one of two external thermocouples which can precisely monitor and control temperature on the PCB top or bottom-side
Front and Back Heating Zone temperatures can be independently controlled, or turned off completely
Magnetic PCB Holder is easily adjusted to a variety of height/size combinations
Handles large assemblies (295mm/11.6″ x unlimited) as well as small or irregularly shaped boards
Set-temperature range of 20° – 200°C (68° – 392°F)
Independent temperature offset adjustment of heating zones +/- 50°C (90°F)

SKU: Pace PH-100 8007-0572 Tags: Pre-Heater, Soldering Equipment Categories: Pre-Heater

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Description

Reviews (0)

Manuals/Guides

Additional information

Description

HOBO by Onset Case Vented Lock Security Case

Why Use Bottom-Side Preheat? Benefits include:

Promotes rapid solder reflow while preventing heat damage and thermal stress or shock
Ensures homogenous temperatures across package/PCB
Decreases warping & maintains planarity of the rework site
Reduces top-side temperature and dwell-time requirements
Increases soldering iron tip-life by allowing lower tip temperatures

Rapid, Safe Soldering or Desoldering on High Mass, Heat-Sinking Assemblies

The PACE PH100 is a high powered (1600W), non-contact infrared heating system with an ergonomic, low-profile design which permits operators to safely pre-heat PCBs for fast, efficient soldering, rework or repair, even on the highest mass, heat-sinking, lead-free PCBs.
