Pace SMR 8007-0565 – SMR Multi-Function Pulse-Heat Rework Station

Pace SMR 8007-0565 – SMR Multi-Function Pulse-Heat Rework Station

Applications include:

• Removal and installation of small SMD’s
• Thermal wire stripping
• Resistance soldering of wires to connector cups
• Lap repairs for conductors and traces
• Removal of conformal coatings
• Picture shows optional tweezers – Please see “What’s in the Box” for exact contents

Compact, Stand-Alone Pulse-Heat System

The SMR features a Pulse Heat power output which provides controlled temperature ramp-up to reflow temperatures, reducing thermal shock risk and unwanted heating of adjacent solder joints. The system can be used for the removal and installation of small SMD’s, thermal wire stripping, resistance soldering of wires to connector cups, lap repairs for conductors and traces and removal of conformal coatings. The SMR system comes standard with PACE’s TS-15 StripTweez Handpiece (see image at left) for thermally stripping wires.

LF-15 LapFlo/Thermopart, CT-15 ConducTweez, TW-15 ResisTweez and TS-15 StripTweez Handpieces are cordless and rapidly attach to a single quick-connect Universal Power Cord. Switching from one Handpiece to another rakes under 2 seconds!

TS-15 StripTweez (supplied with the standard SMR SystemPulse-Heat Handpiece Drawings) is a Thermal Wire Stripper that allows for temperature controlled, damage free removal of all wire insulation, including Teflon. TW-15 ResisTweez (optional) Resistance Tweezer allows for fast resistance heating for soldering or desoldering of closely spaced connector pins, cup terminals and lugs. CT-15 ConducTweez (optional) is a fast heat-up conductive tweezer, excellent for desoldering and/or removing SMD chips and other 2-sided surface mount components from PCB’s. LF-15 LapFlo/ThermoPart (optional) uses quick-connect, plug-in tips that allow for single point or multi-point (hot bar) soldering of flat packs, SOIC’s and other extended lead devices. When used with the Thermal Parting Tip, it acts as a hot knife, overcuring epoxy conformal coatings for easy removal.

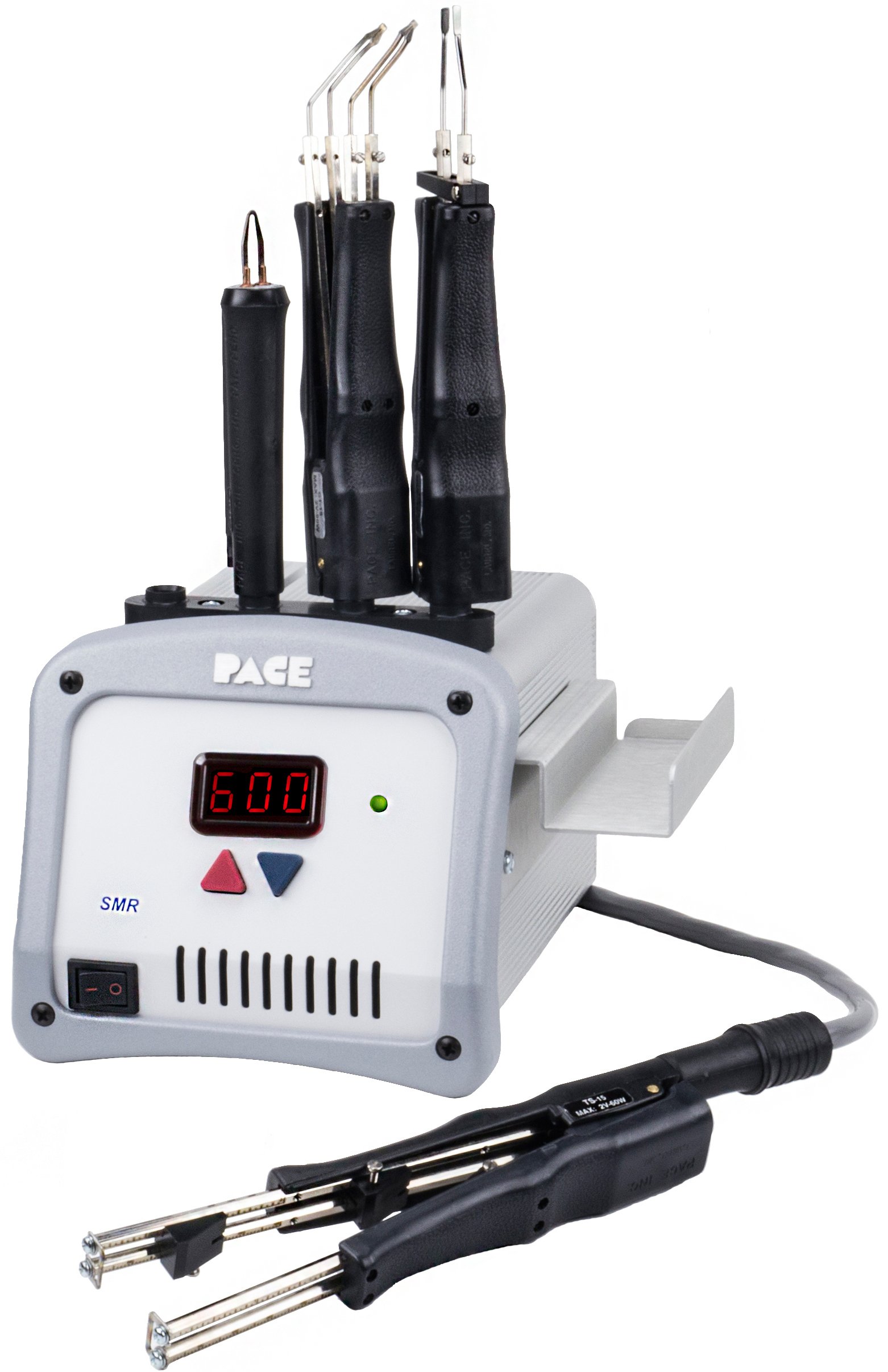

From left to right: TS-15 StripTweez, CT-15 ConducTweez, TW-15 ResisTweez, LF-15 with ThemoPart and LapFlo Tips
