Panavise 209 Vacuum Base PV Jr

Panavise 209 Vacuum Base PV Jr

Lever locks vacuum pad into place on any smooth, flat, non-porous surface
Arm movement is 140°; positive indents control movement to prevent “flopping”
Easy-to-use single knob controls head movement through 3-planes: 210° Tilt, 360° Turn & 360° Rotation

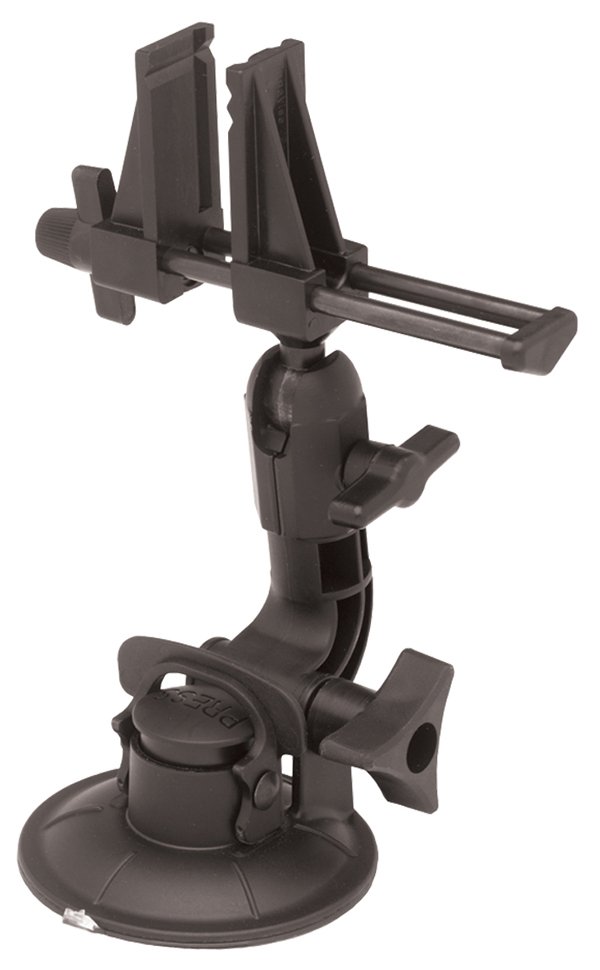

The Panavise 209 / Vacuum Base PV Jr is the most PORTABLE precision vise you’ll ever own! Ideal for light-duty field repairs, electronics and hobbies and more, it attaches securely to any smooth, flat, non-porous surface. The 209’s easy-to-use single knob controls head movement through 3-planes – 210° Tilt, 360° Turn & 360° rotation, while a fine/coarse adjusting knob controls jaw pressure for delicate work.

The 209’s grooved jaws are excellent for holding small objects and are made of reinforced thermal composite plastic. The jaws have a continuous heat tolerance to 350°F (177°C), and intermittent heat up to 450°F (204°C).

Arm movement on the Panavise 209 is 140°, and it has positive indents to control movement and prevent “flopping”. A control knob locks the arm firmly into place, while a lever locks vacuum pad into place on any smooth, flat, non-porous surface. To release the vise from the surface, simply lift the tab.

Vacuum Base PV Jr. shown on a metal work surface. A vise that tilts, turns, and rotates that you can take almost anywhere.

Another example of using the Vacuum Base PV Jr almost anywhere. Here it is pictured on the side of a pick-up truck.
