PCE Instruments PCE-830-1 – Three-Phase Datalogging Power Meter (with 100A Clamps)

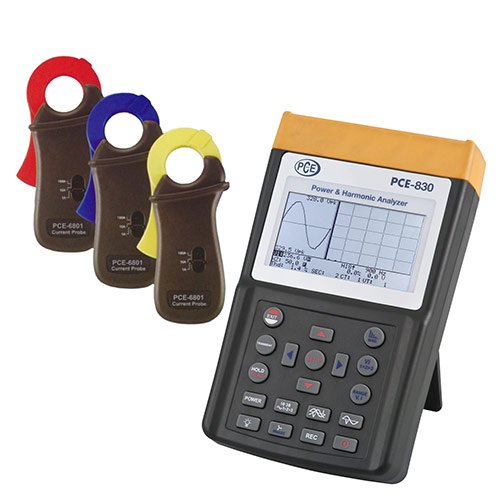

• Power meter with 3x 100A clamps (PCE-6801)
• Electrical conductor pickup: 30mm diameter
• Clamp range selection: Manual (1A, 10A, 100A)
• Analysis of a network of 3 phases / 4 conductors, 3 phases / 3 conductors, 1 phase / 2 conductors, 1 phase / 3 conductors
• Measures effective real value, active power, apparent and reactive power, Power Factor, phase angle, energy and work

PCE-830-1 Power Meter

with 3 phases / Measures power and analyses, harmonics / Includes memory, interface, and software

The PCE-830 Power Meter is used for measuring one to three phases of electrical quantities for alternating current (AC). This 3-Phase Power Meter also measures parameters such as voltage, current, frequency, harmonics, and power as well as indicating, according to standard EN50160, harmonic values, interharmonics, and asymmetric. Interference, such as interruptions, leaks, overloads, or transience (from 16 µs) are detected with their corresponding values. The backlit LCD, with high resolution, can show up to 35 parameters simultaneously. Up to 3 clips can be attached at the same time to the Power Meter.

In data logger mode, it can save up to 17,470 readings (3 phases / 4 conductors), in a simpler setup (1 phase / 2 conductors) it can save up to 52,400 readings, split into 85 groups. All this makes the PCE-830 Power Meter the ideal instrument for taking measurements over long durations. Measurement values obtained can be sent to a computer and processed with the included analysis software. The device comes with everything needed to be measured and analyzed from the moment it arrives.
