Description

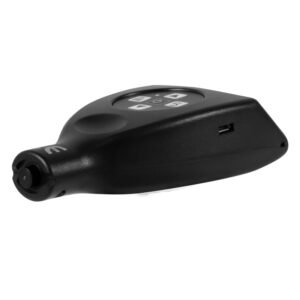

PCE Instruments PCE-CT 22BT
- Internal probe
- Measuring range: 0 – 1500 um
- Measures ferrous and non-ferrous metals
- Micro USB and Bluetooth wireless interface
- Adjustable alarm values
Coating Thickness Tester with Internal Probe
Material Tester with 5-point calibration / various interfaces / for measurement on ferrous and non-ferrous metals / app connection / internal probe / data storage
With this Material Tester, layer thicknesses on metallic surfaces can be reliably determined. The Material Tester has a measuring range of 1500 µm. This means that the Material Tester is used, for example, in a paint shop, for incoming goods inspection, or for an expert. With the Bluetooth interface on the Material Tester, all data can be transferred to a mobile iOS or Android device and exported as a CSV, PDF, or TXT file. A live view with analysis of the measured values is also possible via the free app with the Material Tester.
In addition to the Bluetooth interface, the Material Tester has a micro-USB interface. All data can also be transferred to the PC and analyzed via this interface in the Material Tester. Another special feature of this interface is that the Material Tester can also be operated without batteries via this interface. As a result, many measurement processes are no longer dependent on the battery charge level.
Thickness Gauges/Coating Thickness Gauges Template | |
---|---|
Material Type | All-Metals |
Range Max (Coating) | 1500 microns |
Range Min (Coating) | 0 microns |
Probe Type | Straight |
Probe Style | Integral |
Tester Type | Digital |
Product General Attributes | |
Warranty | 2 YEARS |
Safety Approval | CE, FCC, RoHS |
Interfaces I/O | Bluetooth, Micro USB |
Storage | Internal Memory |
Product Weight | 97 GRAMS (0.214 LBS) |
Product Height | 126 MM (4.96 IN) |
Product Length | 69 MM (2.72 IN) |
Product Width | 35 MM (1.38 IN) |
Shipping Weight | 2.80 LBS |
Calibration Included | Factory Calibration |
Battery Type | AA |
Power Supply Voltage | Battery Powered |
Shipping Height | 3.00 IN |
Shipping Length | 10.00 IN |
Shipping Width | 8.00 IN |
