PCE Instruments PCE-CT 80 – Thickness Meter for Ferrous or Non Ferrous Metals

• For ferrous and non-ferrous metals
• Fe measuring range: 0 -5000 um (0 -196.9 mils) (depending on sensor)
• NFe measuring range: 0 – 3000 um (0 – 118.1 mils) (depending on sensor)
• Practical V-groove on the measuring heads
• Measurements are not influenced by vibrations

Automotive tester PCE-CT 80

Coating thickness gauge for Fe and NFe / USB interface / Battery operation / Integrated data memory / Various sensors available

The paint layer thickness gauge PCE-CT 80 is a measuring device for the nondestructive measurement of coatings (paints, lacquers, plastics …) on steel/iron and non-ferrous metals. Thanks to the externally connected sensor on the PCE-CT 80 ink layer thickness gauge, even difficult-to-reach measuring points can be easily achieved. The menu navigation of the paint thickness gauge allows easy adjustment and setting to new parameters and makes this handy paint coating thickness gauge an indispensable tool for control measurements in production, workshop and quality assurance. Includes FN1.5 probe in kit for 0 … 1500 μm or 0 … 59 mils measurements.

The color coating thickness gauge PCE-CT 80 is also ideally suited for detecting and assessing eg accident damage to motor vehicles immediately, but also in the industrial sector, the paint thickness gauge can be optimally used in incoming and outgoing inspections as well as material testing in production.

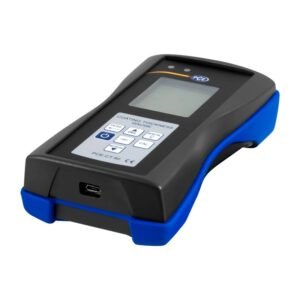

The ergonomically shaped PCE-CT 80 ink layer thickness gauge with an external sensor allows you to quickly determine measurement results with high accuracy. The paint thickness gauge measures non-magnetic layers such as paint, plastic, chrome, copper, zinc, enamel, etc. on steel/iron, and non-electrically conductive layers such as paint, plastic, enamel, paper, glass, rubber, etc. on copper, aluminum, brass and stainless steel, as well as anodized aluminum.
