PCE Instruments PCE-DD-A – Durometer (Shore A Hardness)
30 people are viewing this product right now
$143.60
Shipping calculated at checkout.
Estimated delivery:4 days
Digital Durometer, Material Tester
- Measurement range: 0 – 100 Shore A
- Resolution: 0.5 degrees of hardness
- Accuracy: ± 2
- Depth of indentation: 0 mm – 2.5 mm / 0 in – 0.01 in
- Easy-to-read digital display
- Pressure force: 1 kg (2.2 lbs)
- Indenter: 35 degrees
Guarantee Safe and Secure Payment Checkout
Description
PCE Instruments PCE-DD-A
- Measurement range: 0 – 100 Shore A
- Resolution: 0.5 degrees of hardness
- Accuracy: ± 2
- Depth of indentation: 0 mm – 2.5 mm / 0 in – 0.01 in
- Easy-to-read digital display
Durometer (Shore A Hardness)

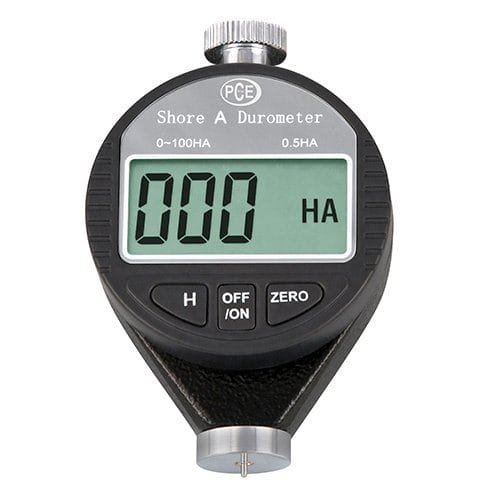

PCE-DD-A Durometer
To measure Shore A hardness in soft gums, rubber and elastomers / Easy-to-read digital display / Resolution of 0.5 degrees of hardness
The PCE-DD-A Durometer is an ergonomic device that checks Shore hardness in gum, plastic and other non-metallic materials. The PCE-DD-A Durometer is used primarily for soft gums, elastomers, natural rubber, neoprenes, casting resin, white PVC, leather, etc. If the material thickness is not enough, it should be tightened on the back with the same material to increase its thickness. Calibration is not an option.
Product General Attributes | |
|---|---|
| Unique Features | 0 – 100 Shore A |
| Warranty | 2 YEARS |
| Storage | Internal Memory |
| Product Weight | 2.2 LBS |
| Product Height | 3.14 IN |
| Product Length | 2.36 IN |
| Product Width | 0.4 IN |
| Battery Type | NimH |
| Power Supply Voltage | Battery Powered |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 2.2 lbs |
|---|---|
| Dimensions | 2.36 × 0.4 × 3.14 in |
