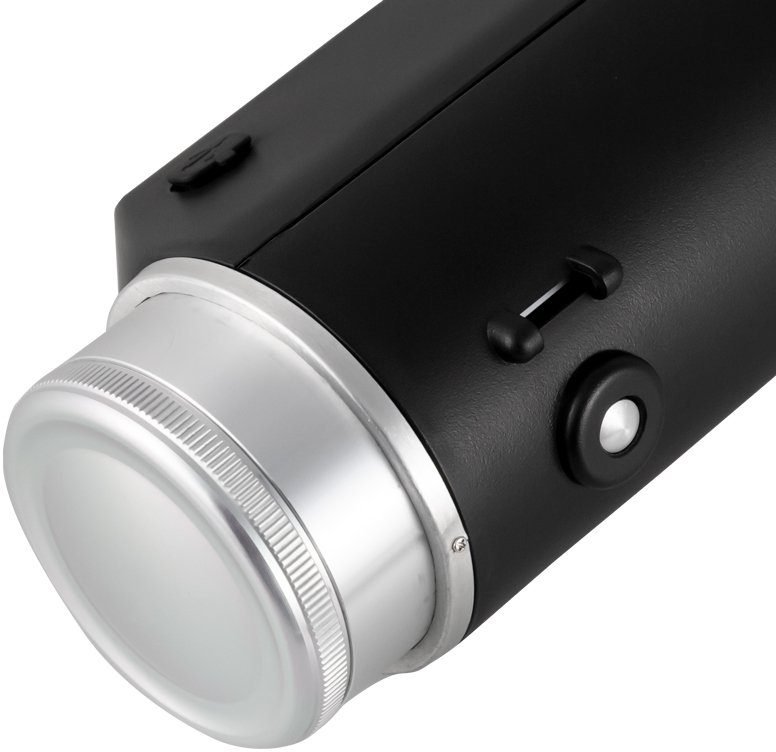

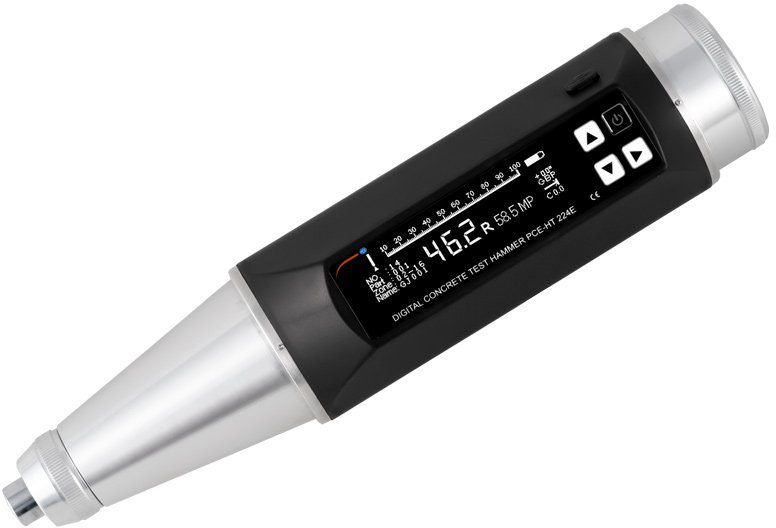

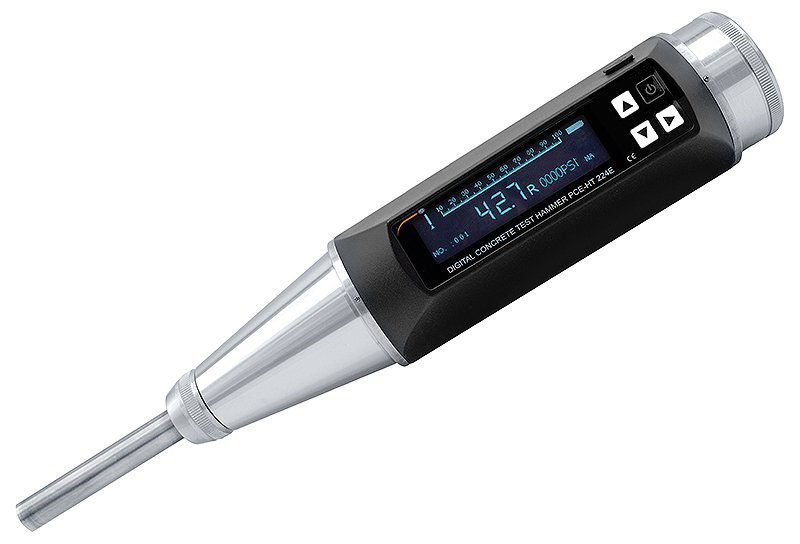

PCE Instruments PCE-HT 224E – Mechanical Concrete Hardness Tester with OLED Display

• Measuring range: 10 – 60 N (1500 – 8500 PSI or lbs/in2
• Measures the hardness of concrete
• Accuracy: ± 0.1 R

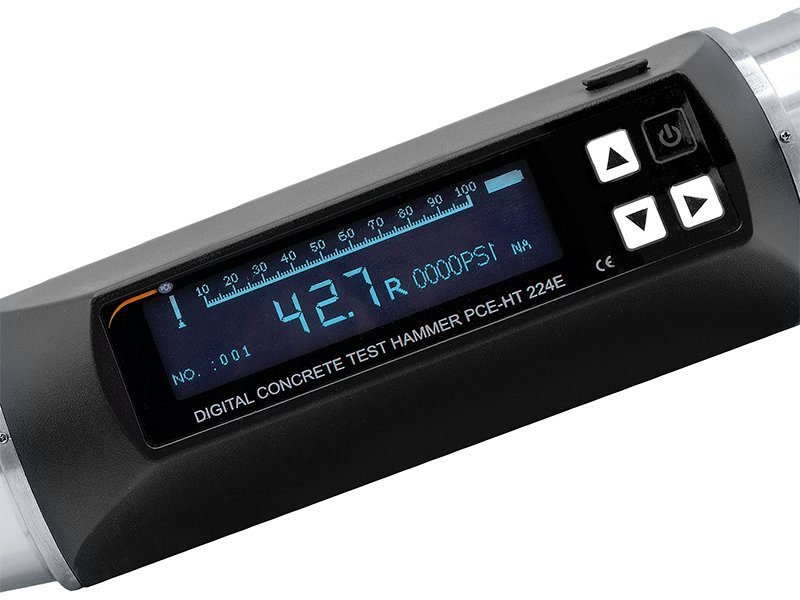

• OLED display
• Nominal kinetic energy: 2.207 Nm, 0.225 kgm

Material Tester PCE-HT 224E with Digital Display

Mechanical concrete hardness tester with OLED / Measuring range 10 … 60 N/mm² (1500 … 8500 pSI or lbs/in²) / Built-in battery for mobile use / Test load 2.207 J / For measuring the quality of concrete surfaces

The Material Tester is a measuring tool for testing the strength of concrete. The Material Tester measures strength according to the Schmidt principle. According to this measurement method, the quality of concrete can be measured with the Material Tester. Thus, the Material Tester finds its essential application in the construction and in the construction sector. The Material Tester is also suitable for testing hardness of rolled paper. The built-in mechanism on the hardness tester always ensures the same impact energy of 2.207 Nm.

The Material Tester displays measurements Rebound Value and can display force in PSI, MPa, kgF/cm², or N/mm². The Material Tester can be setup to measure at test angles of downward (-90°), downward (-45°), horizontal (0°), upward (45°), or upward (90°).
