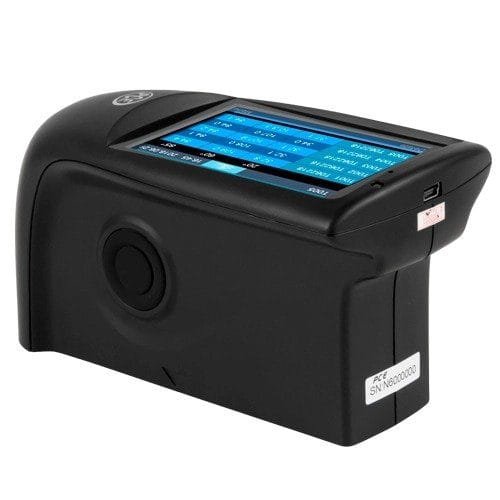

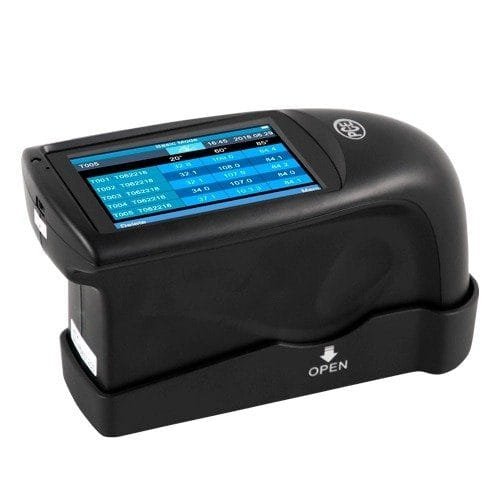

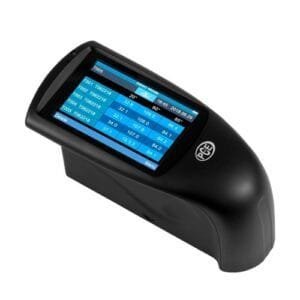

PCE Instruments PCE-IGM 100 – Gloss Meter (20 ° / 60 ° / 85 °)

• Measuring geometries: 20 / 60 / 85 degrees
• Measuring range: 20°: 0 -1000 GU; 60°: 0 -1000 GU; 85°: 0 -160 GU
• Measuring surface: 20°: 10 x 10 mm (0.4 x 0.4 in); 60°: 9 x 15 m (0.4 x 0.6 in); 85°: 5 x 36 mm (0.2 x 1.4 in)
• Standards: ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457

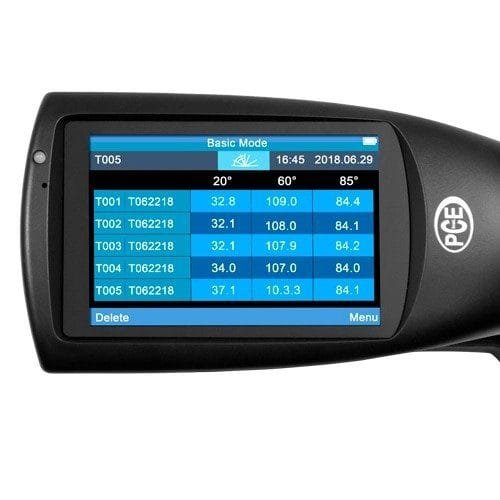

• 3.5 in TFT touch display (320 x 480 Pixel)

Gloss meter for mobile use / Different measuring geometries / 3.5″ TFT-Display / Fast measurement time / Internal data memory /Including evaluation software

A gloss meter is a tester for determining surface gloss. Thereby, with the gloss meter, spectral reflections of a light beam that hits the surface, are measured. The touch screen allows for easy navigation.

The gloss meter is applied especially in areas where it is important that the surfaces have the same structure, and thus have the same surface characteristics. This often happens in quality control. Thus, the gloss meter is a measuring instrument which can be used in many different companies.

Included with this gloss meter there is also a CD-Rom with special evaluation software. So the measured data can be first stored on the device and later transferred to a computer. The software of the gloss meter also has an analysis function that serves for precise evaluation.
