PCE Instruments PCE-LED 20 – Light Meter

• Measuring range: 40, 400, 4000, 40000, 400000 Lux; 40, 400, 4000, 40000 Footcandles
• Displays measurements in lux or footcandle
• Display: 4000 count, maximum display 3999
• MIN / MAX / AVG / HOLD functions
• Overload indicator

PCE-LED 20 Photometer

Handheld light meter with automatic range selection displays measuring units in lux or footcandle

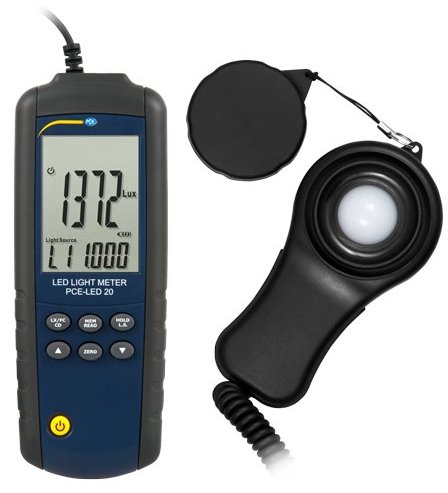

PCE-LED 20 is a photometer with an external LED light sensor. The cable of the sensor has an extended length of approx. 1.5m / 4.9ft. Different work or production processes require different lighting conditions. In school, office, and factory environments, lighting must also meet applicable safety standards. Indoor lighting conditions can be assessed quickly and easily using this meter. The LED light meter or lux meter can display measured values directly on the display. Direct measurement is thus immediately possible. By means of various presets, the functions installed in the device can also be activated or deactivated. These functions include the normal HOLD function, in which the measured value is frozen in the display. In addition, the extreme values as well as the average value can be frozen in the display. Further functions of the LED lux meter are zero adjustment, automatic shutdown, and automatic range selection.

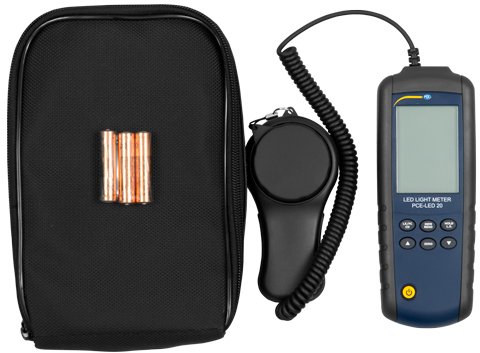

Measurements are possible with the LED lux meter in lux or footcandle. The unit has only seven keys, allowing for one-hand operation. This also makes the instrument simple to use. The LED lux meter is a battery-powered handset, making the device portable and ideal for measurements in the field.

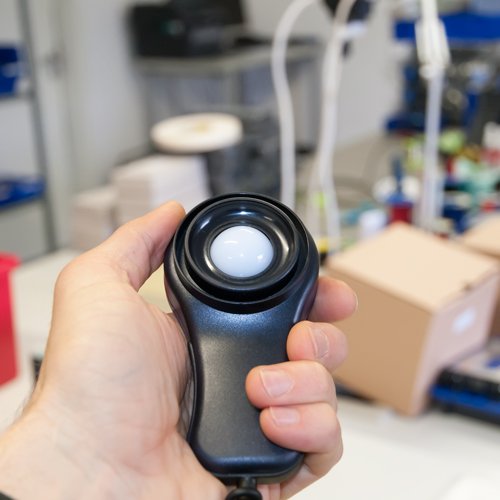

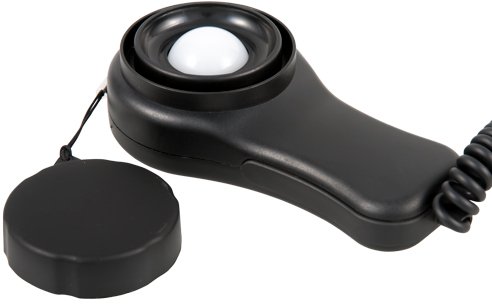

The measuring sensor of the LED lux meter has a large exposure area. For convenience, the sensor is located on a coiled cable that can be extended to full length only when needed. A protective cap on the sensor prolongs its life. This protective cap should be placed on the sensor during storage. In addition, the protective cap is required when a zero adjustment is to be performed on the LED lux meter.
