PCE Instruments PCE-LT 12 – Digital Multimeter with Telephone Connection Test

• Voltage tester with many measuring functions
• Telephone connection test
• AC measuring range: 200 mV, 2 V, 20 V, 200 V, 750 V
• DC measuring range: 200 mV, 2V, 20V, 200 V, 1000 V
• Alternating current measuring range: 200 uA, 2000 uA, 20-mA, 200-mA, 2 A, 20 A

Voltmeter PCE-LT 12

Voltage tester with many measuring functions / For electricians and IT employees / Analysis of network connection cables / Telephone connection test / Voltage and current measurement / NCV / backlight

The voltage tester is a versatile measuring instrument. In addition to the standard voltage and current measurements, the voltage tester also has a network analysis. With this network analysis, the voltage tester can be used to check, for example, LAN connections for their correct wiring and function. Telephone connections can also be checked for their function with this voltage tester. If cables can not be found again, the voltage tester also helps here.

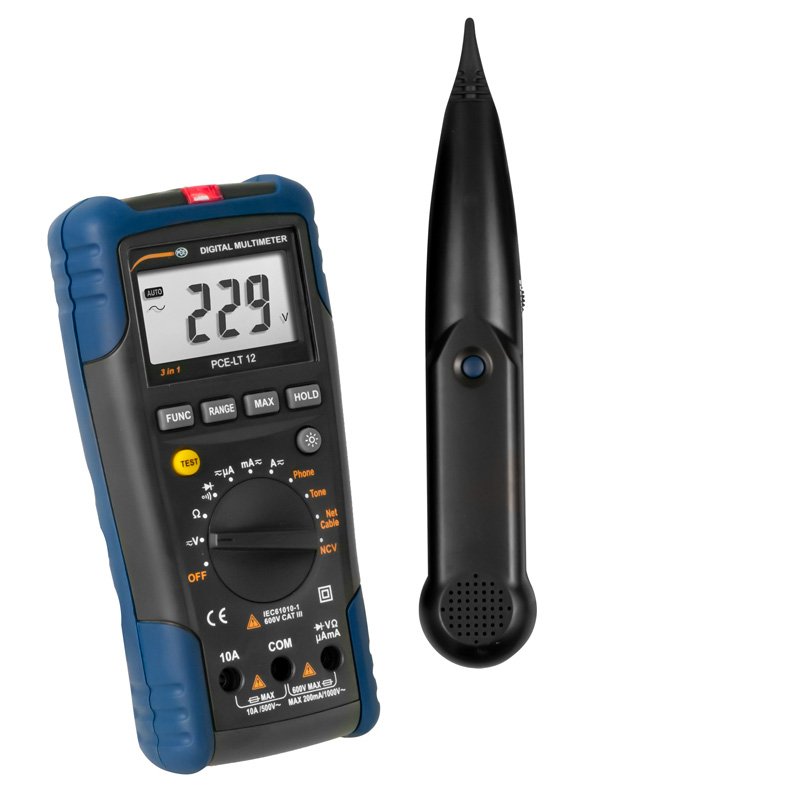

Thanks to the cable finder function of the voltage tester, the operator can find the required cable in no time at all. To do this, the voltage tester must be connected to the connection of a cable. The voltage tester now acts as a transmitter. With the supplied receiver you can now easily find the desired cable in, for example, a wiring harness or behind walls with the voltage tester.

To check whether a voltage is applied to a cable, the voltage tester has an NCV (Not Connected Voltage) function. With this function, the voltage tester must only be held to the line. Both acoustically and visually, the voltage tester signals the operator that a voltage is applied to the line. Thanks to this contactless measuring function, the voltage tester reduces accidents at work due to electric shock.
