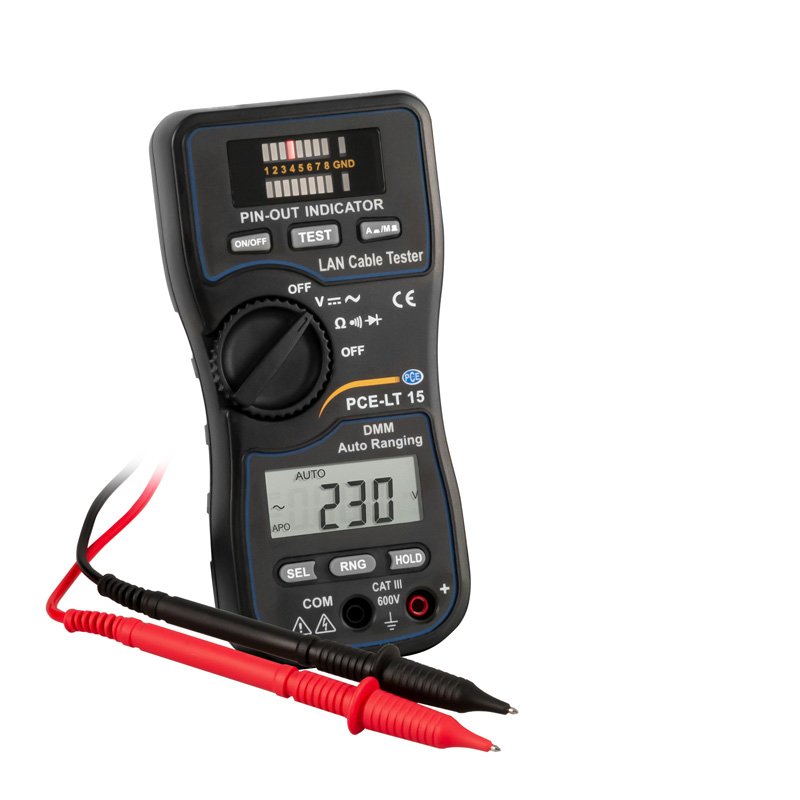

PCE Instruments PCE-LT 15 – Digital Multimeter with LAN Tester

• Combination device of LAN tester and multimeter
• Checks Lankabel and patch fields
• AC Voltage measuring range: 400 mV, 4 V, 40 V, 400 V, 750 V
• DC Voltage measuring range: 400 mV, 4 V, 40 V, 400 V, 1000 V
• Resistance measuring range: 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ

Digital Multimeter PCE-LT 15

LAN tester for fast network cable inspection / Combination device consisting of LAN tester and multimeter with voltage and resistance measurement

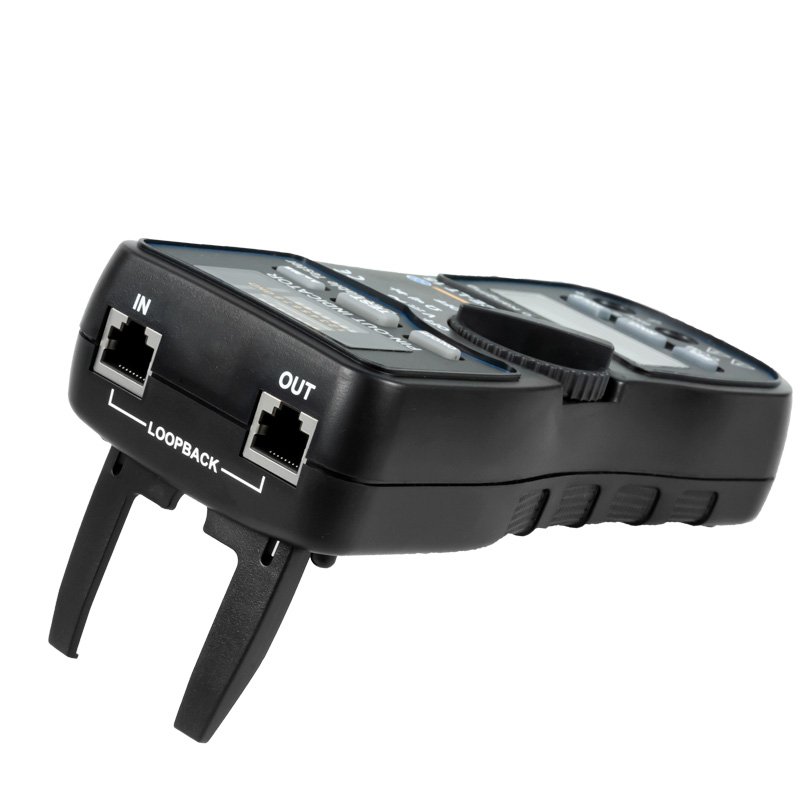

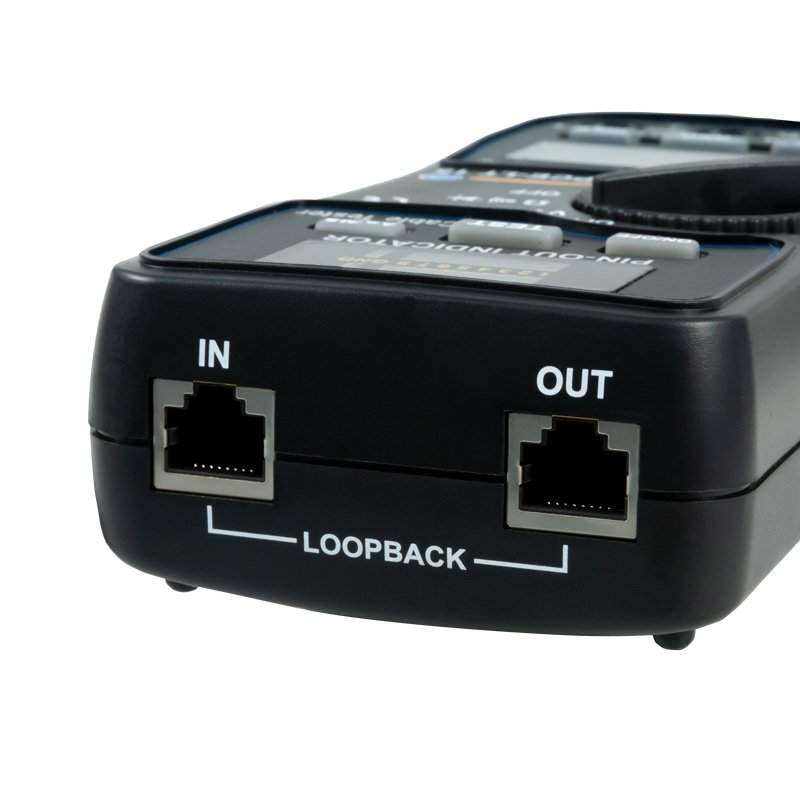

The LAN tester PCE-LT 15 is a combination device which detects configuration errors in the network and at the same time can be used as a multimeter. Thus, the periphery of a network can be quickly checked with the LAN tester. With the LAN tester PCE-LT 15 it is possible to check 8-pin data cables with RJ-45 connectors for continuity, open connections, and short circuits. In addition to the LAN test function, the LAN Tester can also measure DC and AC voltages.

With the LAN tester, which also serves as a multimeter, it is possible to perform a continuity test with buzzer and a diode test. The LAN tester is also a device that identifies the most common network installation errors. The two-row LEDs successively indicate the pin assignment of the cable to be tested. In the event of a short circuit, more than two LEDs light up simultaneously.
