Description

PCE Instruments PCE-MPM 10
- Pa measuring range: ± 5000 Pa
- 11 different pressure units (Pa, hPa, mbar, mmH2O, mmHg, inH2O, inHg, psi, ozin2, bar, kPa)
- For gaseous media
- Zero point calibration
- Relative pressure gauge

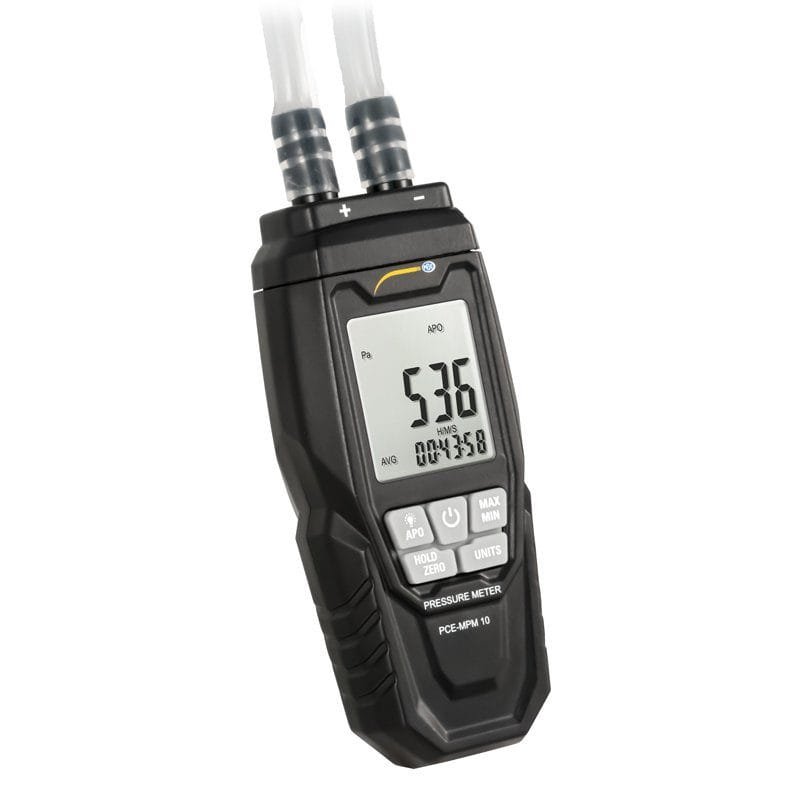

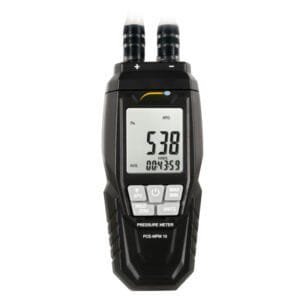

Handheld Manometer (5000 Pa)
Manometer for determining differential pressure / For gaseous media / LC display / Measuring range ±5000 Pa / For mobile use / 11 different pressure units

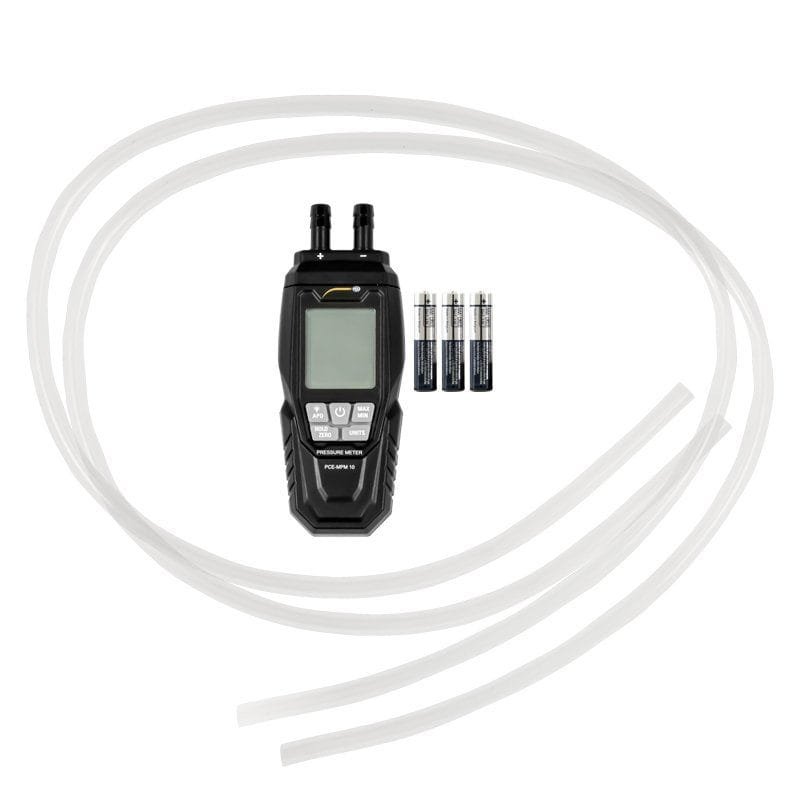

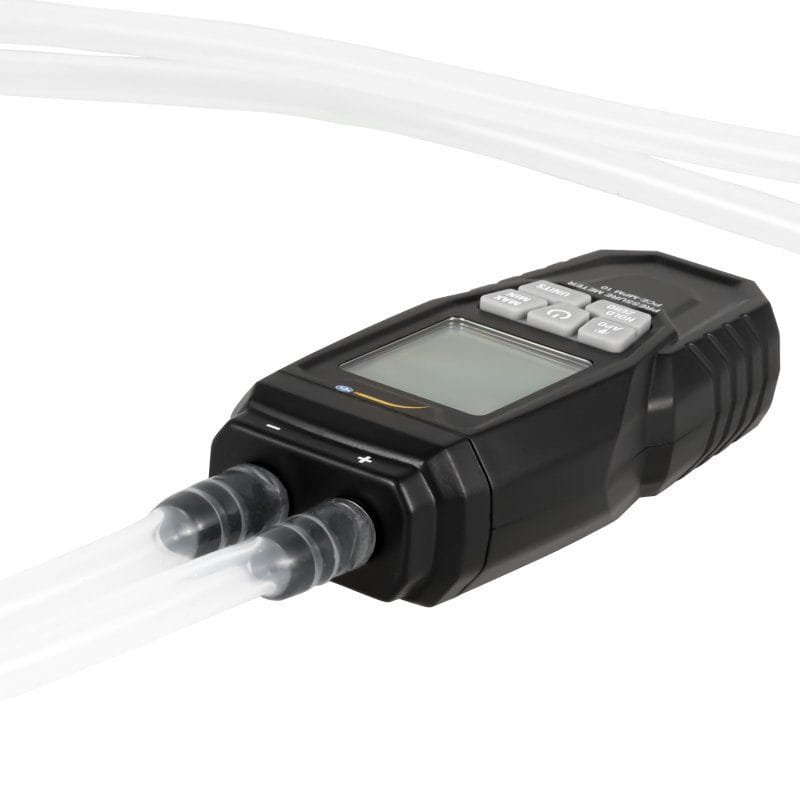

The manometer is a small and handy measuring device for determining the differential air pressure. The pressure meter has a measuring range of ±5000 Pa. The pressure meter is connected via two hose connections with a diameter of 8 mm. After switching on, the pressure meter shows the differential pressure directly. The measured value can be displayed in 11 different pressure units. The pressure meter is used, for example, in ventilation and air conditioning technology or in educational institutions such as technical colleges and universities.
In addition to the normal display of measured values, the manometer can also display the smallest, largest and average measured values. This makes it the pressure meter easier to analyze the measured values. To save the batteries, the pressure meter switches itself off automatically within five minutes.
HVAC Equipment and Instruments/Manometer Template | |
|---|---|
| Type (Manometer) | Digital |
| Max Pressure | 0.725 psi (20.07 IN of H2O) |
| Engineering Units (HVAC) | bar, hPa, inch H2O, inch Hg, kPa, mbar, mmH2O, mmHg, ozin2, psi |
| Measurement | Differential |
Product General Attributes | |
| Warranty | 2 YEARS |
| Product Weight | 130 GRAMS (0.287 LBS) |
| Product Height | 5.5 IN |
| Product Length | 2.0 IN |
| Product Width | 1.1 IN |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
