PCE Instruments PCE-PA6000 – Power Quality Analyzer with RS-232

• Measures effective power, apparent power, power factor, energy consumption, current, continuous voltage, resistance, and frequency
• Multimeter function
• Safety standards: IEC-1010-1; CAT II 600V
• Data hold / Peak hold
• Function Hold / Alarm function High / Low

Power analyzer with RS-232 interface and software to analyze power consumption

The PCE-PA6000 power analyzer is a tabletop device for measuring effective power, apparent power, power factor, energy consumption, current, continuous voltage, resistance, and frequency. The power analyzer also offers the possibility to connect industrial current converters with a transmission relation of 100/5A or 1000/5A. Its large 93 x 52mm LCD is easy to read and provides a variety of results, including Watts, cos, ACV, and ACA. With the optional PCE-PA ADP current adaptor with ground wire (up to 10ACA) it can safely and quickly measure and analyze with the help of the power analyzer. Measurement of current and power can be done directly with test cables that come with the device or indirectly using the clamps. The device has an RS-232 interface, and software to analyze results and transfer data to a computer. This makes it the ideal device for any workshop or for measuring power to determine faults in devices.

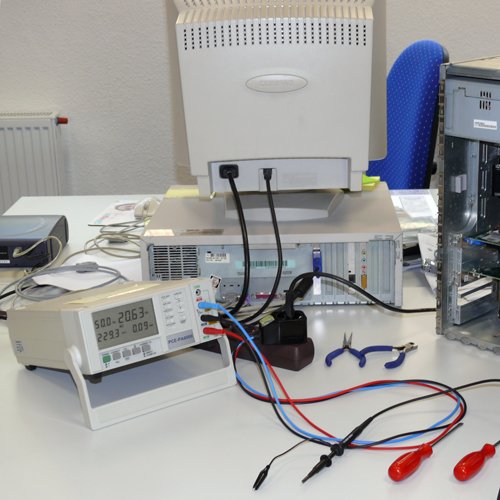

In the following image, there is a PCE-PA 6000 being used to repair a computer. Using the current adaptor, it can quickly take measurements of consumption and measurements of power without the need to use too many cables.

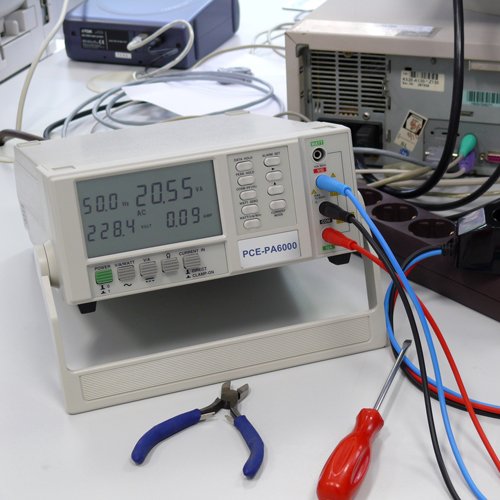

Here is an image of the power meter’s large LCD that can show four different readings simultaneously. The display mode depends on the function setting. It can also show readings taken by the current adaptor. It just needs to be connected to the device with the grounding wire of the adaptor.

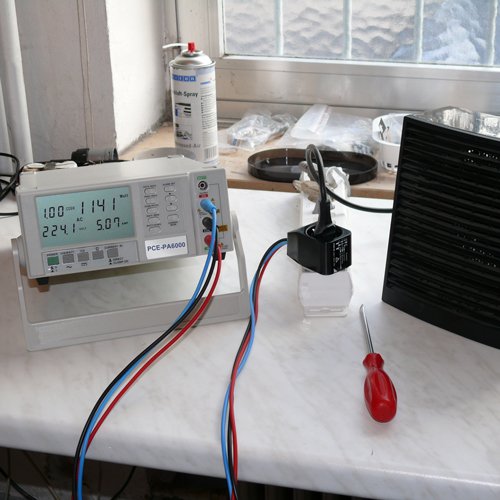

In this instance, the device is being used to test the thermal value of an electronic thermal ventilator once repaired with our PCE-PA 6000 power meter. The usefulness of the current adaptor can be appreciated here, and it is easy to attach safely without the mess of external cables. With the power meter, tests can be done easily, safely, and accurately on all types of small electrical appliances up to 10A, including high consumer electronics.
