PCE Instruments PCE-PI 10 – Rotary Field indicator with Voltage Tester
29 people are viewing this product right now
$72.60
Shipping calculated at checkout.
Estimated delivery:5 days
Digital Multimeter, CAT III 600V
- 3-phase rotating field detection
- Measuring range of rotating field detection: 75 – 600 V AC
- Frequency range of rotary field recognition: 40 – 400 Hz
- AC voltage measuring ranges: 600 mV / 6 V / 60 V / 600 V
- DC voltage measuring range: 600 mV / 6 V / 60 V / 600 V
- CAT III 600V safety rating
- Alligator clamps test leads
- Two LCD displays
Guarantee Safe and Secure Payment Checkout
Description

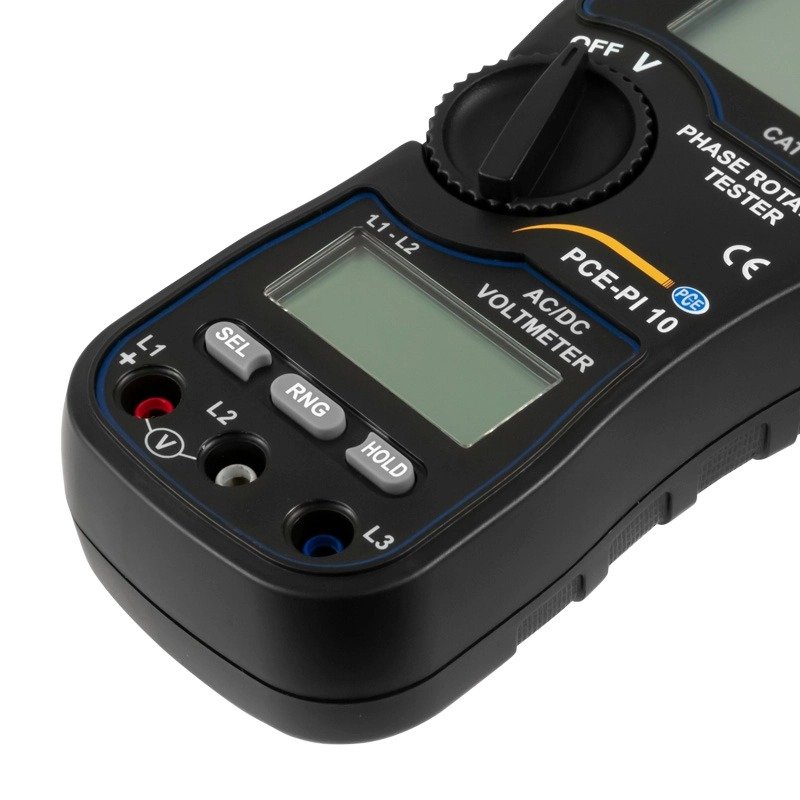

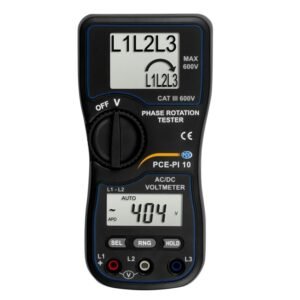

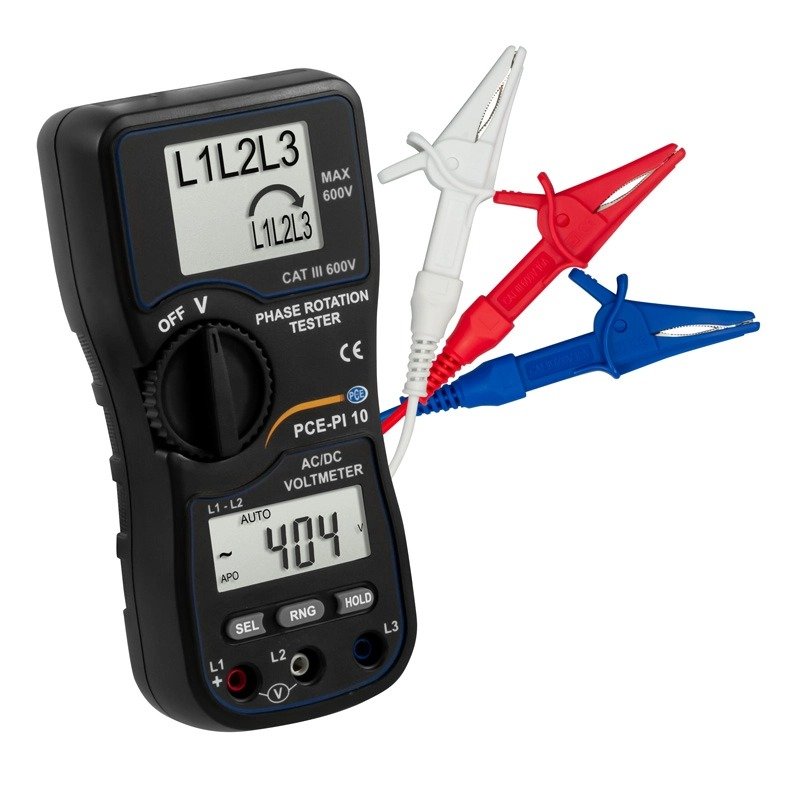

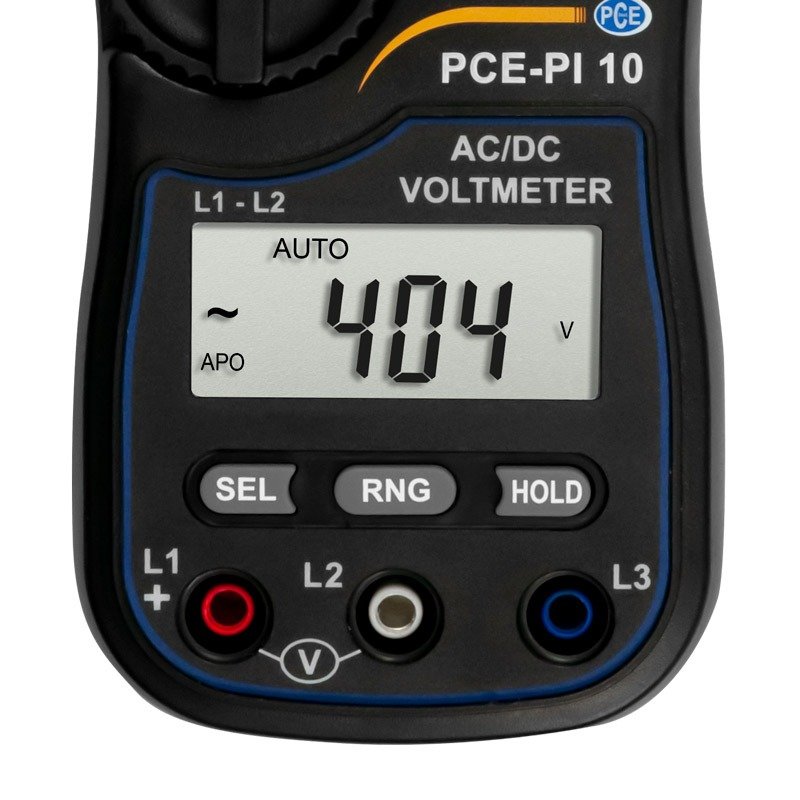

PCE Instruments PCE-PI 10
- 3-phase rotating field detection
- Measuring range of rotating field detection: 75 – 600 V AC
- The frequency range of rotary field recognition: 40 – 400 Hz
- AC voltage measuring ranges: 600 mV / 6 V / 60 V / 600 V
- DC voltage measuring range: 600 mV / 6 V / 60 V / 600 V
Rotary Field indicator with Voltage Tester
Phase rotation meter PCE-PI 10
The rotating field indicator PCE-PI 10 is used to determine the direction of rotation of 3-phase voltage networks. Furthermore, the rotating field indicator can measure voltages up to 600V AC / DC. The rotating field direction is important for machines and plants. If the phases are not connected correctly, damage to connected motors and pumps can occur, for example.

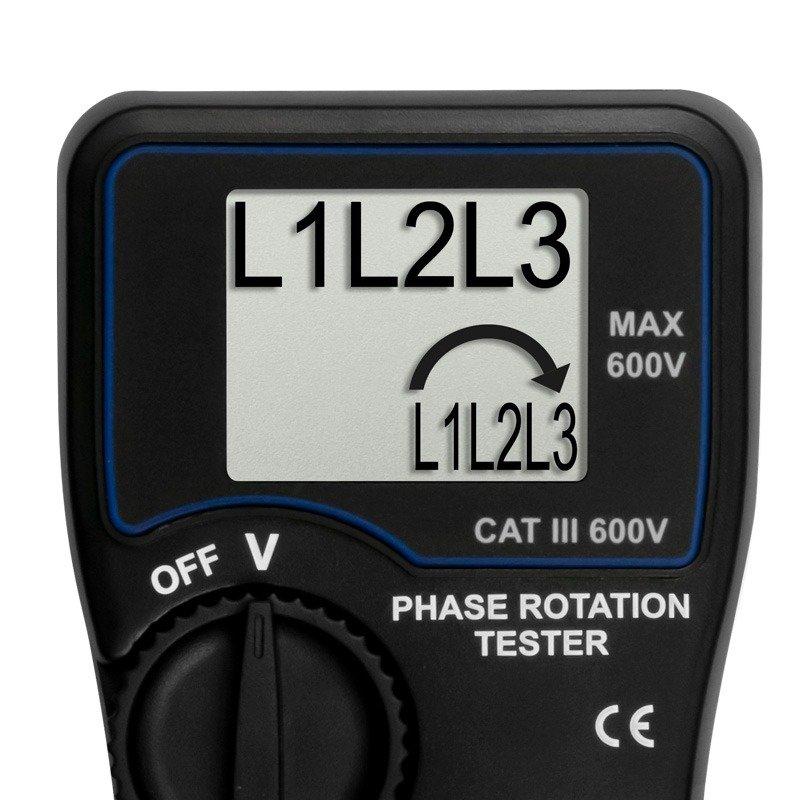

The rotating field indicator shows the direction of rotation on an LCD display. Furthermore, the display of the rotary field indicator shows whether a phase has been connected to the measuring lines or not. The measuring cables of the rotating field indicator are equipped with crocodile clips so that the measuring device can be connected directly to cables or screw contacts.
Phase / Motor / Transformer Testing/Phase and Rotation Meters Template | |
|---|---|
| Maximum Frequency Range | 400 Hz (0.0004 MHz) |
| Phases | Three phase |
| Rotation Direction | Yes |
| Measure Voltage | Yes |
| Maximum Voltage | 600 V |
| Type (Phasing Sequence) | Portable |
Product General Attributes | |
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Product Weight | 245 GRAMS (0.540 LBS) |
| Product Height | 6.5 IN |
| Product Length | 1.8 IN |
| Product Width | 8.2 IN |
| Shipping Weight | 2.80 LBS |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Shipping Height | 6.00 IN |
| Shipping Length | 7.00 IN |
| Shipping Width | 3.00 IN |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 245 lbs |
|---|---|
| Dimensions | 1.8 × 8.2 × 6.5 in |
Related products
Sale

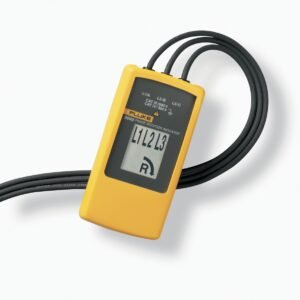

Fluke 9040 Phase Rotation Indicator Meter
