PCE Instruments PCE-RM 100 – Gloss Meter
36 people are viewing this product right now
$966.88
Shipping calculated at checkout.
Estimated delivery:5 days
Gloss Meter
- Measuring range: 0 -100 (transparent to opaque
- Optical measurement angle: 45 degrees
- Measures the surface reflectance according to international standards ISO3906-1980, ISO3905, ISO2814
- Large LCD display
- Includes calibration standard
- USB interface works with included software
- Resolution: 0.1
- Measuring surface: 7 x 14 mm (elliptical)
Guarantee Safe and Secure Payment Checkout
Description

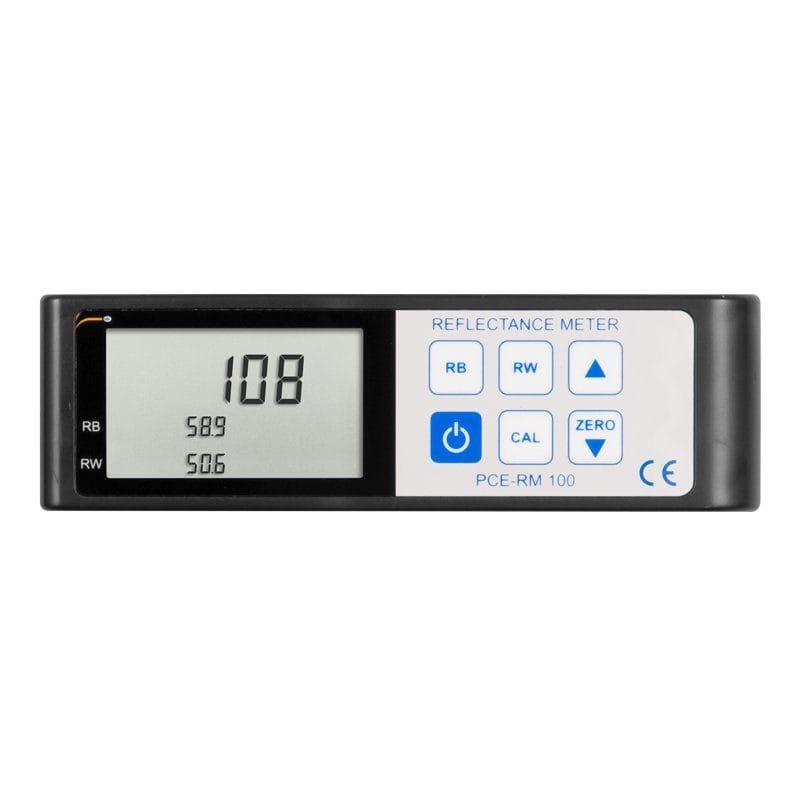

PCE Instruments PCE-RM 100
- Measuring range: 0 -100 (transparent to opaque
- Optical measurement angle: 45 degrees
- Measures the surface reflectance according to international standards ISO3906-1980, ISO3905, ISO2814
- Large LCD display
- Includes calibration standard
PCE-RM 100 Gloss meter for Opacity
The reflectometer is used to measure the reflection properties of surfaces related to opacity. The PCE-RM 100 reflectometer is used in furniture construction, workplace control, lighting design etc. The reflectometer measures the reflectance off the surface in which a light is reflected from the surface. Subsequently, the reflection of the light is compared with an absolute black and an absolute white background, and from this the degree of opacity is determined mathematically. The reflectometer measures the surface reflectance according to the currently valid international standards ISO3906-1980, ISO3905, ISO2814.
The surface reflection is an important measure to detect, for example, whether a furniture surface for the human eye is too reflective and so unpleasant. The reflectometer PCE-RM 100 can measure this reflection directly in the development of furniture decors and the engineer can make a statement of quality.
Color and Appearance/Gloss Meters Template | |
|---|---|
| Angle | 45° |
| Area of Measurement | 7x14mm |
| Measurement Range | 100 Gloss Units |
Product General Attributes | |
| Warranty | 2 YEARS |
| Safety Approval | CE, FCC |
| Interfaces I/O | USB |
| Product Weight | 0.68 LBS |
| Product Height | 5.6 IN |
| Product Length | 1.8 IN |
| Product Width | 3.1 IN |
| Shipping Weight | 2.80 LBS |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
| Shipping Height | 7 IN |
| Shipping Length | 11 IN |
| Shipping Width | 3 IN |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 2.8 lbs |
|---|---|
| Dimensions | 1.8 × 3.1 × 5.6 in |
