Description
PCE Instruments PCE-RT 10
- Roughness parameters: Ra and Rz
- Ra range: 0.05 ~ 10.00 µm
- Rz: 0.1 ~ 50.0 µm
- Induction principle
- Diamond sensor

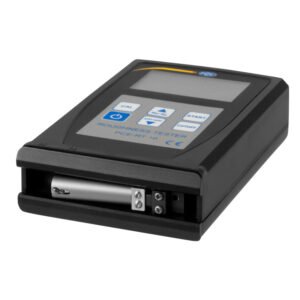

PCE-RT 10 Roughness Tester

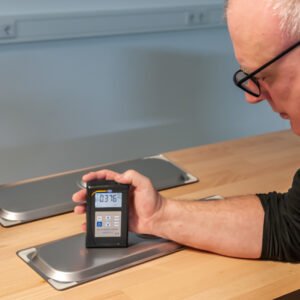

The Roughness Tester PCE-RT 10 is a small, lightweight device with simple navigation. Despite the fact that the device functions on a very complex and elaborate level, the measurement results can be gained quickly and easily. Due to its rugged design, the device has a long lifetime. This device is calibrated on ISO, DIN, ABSI, and JIS standards. The surface texture meter can be applied for various mechanical manufacturing processes as controlling equipment. The device indicates all calculated measurement results on its LCD display at any time. In order to measure the roughness of a surface, the sensor is to be placed on that surface. Afterward, the sensor samples the surface evenly following its guide rail. Now the device will calculate the measuring values. Thus the indicated values are a result of the sensor’s movement, while it is induced with electricity. The fast DSP processing supports quick measurement results, which are then shown on the surface texture meter’s display.
Thickness Gauges/Coating Thickness Gauges Template | |
---|---|
Range Max (Coating) | 0.05 microns |
Range Min (Coating) | 10 microns |
Probe Type | 90 Degrees |
Product General Attributes | |
Unique Features | Ra, Rz |
Warranty | 2 YEARS |
Safety Approval | CE |
Product Weight | 0.62 LBS |
Product Height | 5.03 IN |
Product Length | 3.14 IN |
Product Width | 1.18 IN |
Shipping Weight | 2.80 LBS |
Battery Type | AA |
Power Supply Voltage | Battery Powered |
Shipping Height | 2.00 IN |
Shipping Length | 10.00 IN |
Shipping Width | 8.00 IN |
