PCE Instruments PCE-RT 11 – Material Roughness Tester (Ra, Rz, Rq and Rt)

• Roughness parameters: Ra, Rz, Rq, Rt
• Measuring area Rz, Rt: 0.1 – 50 µm
• Measuring area Ra, Rq: 0.05 – 10 µm
• Probe system: Piezoelectric probe
• OLED display with backlight

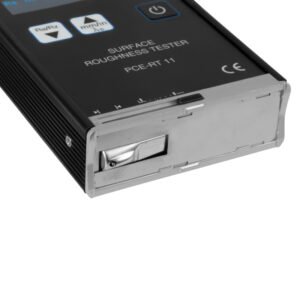

The Roughness Tester PCE-RT-11 is a portable measuring instrument for the determination of surface roughness according to Ra, Rz, Rq, and Rt in just one device. The small roughness tester is specially designed for fast measuring of roughness. Roughness is a term of surface physics that describes unevenness of surface height. The roughness tester works according to the same piezoelectric micro probe principle as the highly accurate laboratory measuring instruments. The easy handling of the roughness tester as well as the high repetitive accuracy characterizes this device. After touching the button, the piezoelectric microprobe of the roughness tester scans the surface within seconds and shows digitally, according to the preselected cut-off length, either the value Ra, Rz, Rq, or Rt.
