PCE PCE-428 – Class 2 Sound Level Meter with Data Logging
21 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
Sound Level Meter, Data Logger with USB Interface
- Accuracy Class 2 sound level meter with datalogging
- A, B, C, and Z frequency weightings
- db(A) range: 25 – 136 dB
- Octave filtering: 20 Hz – 8kHz
- Frequency range: 20 Hz – 12.5 kHz
- Fast, slow and impulse time weightings
- 1/1 octave band filter (optional 1/3 octave band filter upgrade)
- Adjustable data-recording interval from 1 second to 24 hours
- Real-time numerical and graphical LCD display
- Adjustable alarm
Guarantee Safe and Secure Payment Checkout
Description
PCE PCE-428
- Accuracy Class 2 sound level meter with data logging
- A, B, C and Z frequency weightings
- dB(A) range: 25 – 136 dB
- Octave filtering: 20 Hz – 8kHz
- Frequency range: 20 Hz – 12.5 kHz
Class 2 Sound Level Meter with Data Logging

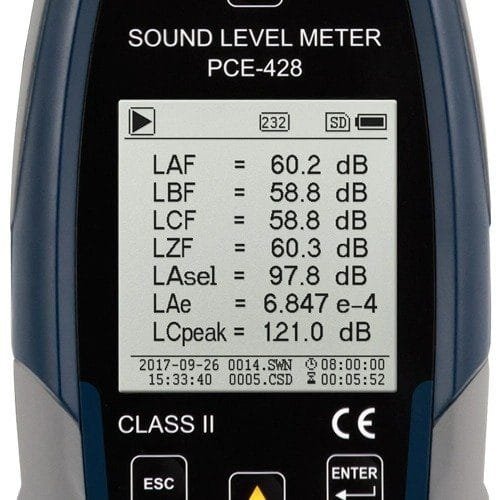

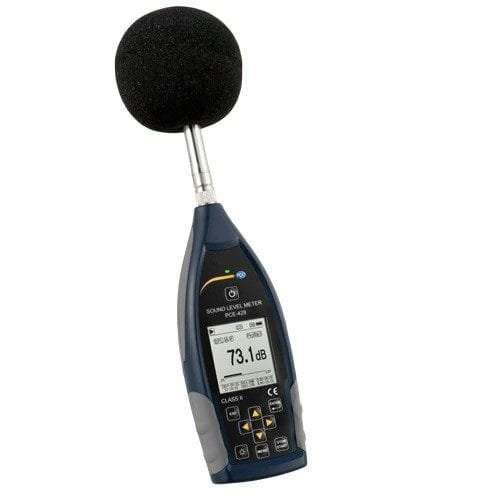

The environmental meter is a class 2 data-logging sound level meter that meets IEC 60651:1979, IEC 60804:2000, IEC 61672-1:2013, ANSI S1.4-1983 and ANSI S1.43-1997 requirements. This portable high-accuracy sound level meter has a large easy-to-read illuminated LCD screen that displays the sound pressure level (SPL) numerically and graphically in real-time. Thanks to octave band filtering, even the slightest difference in frequency is detected.

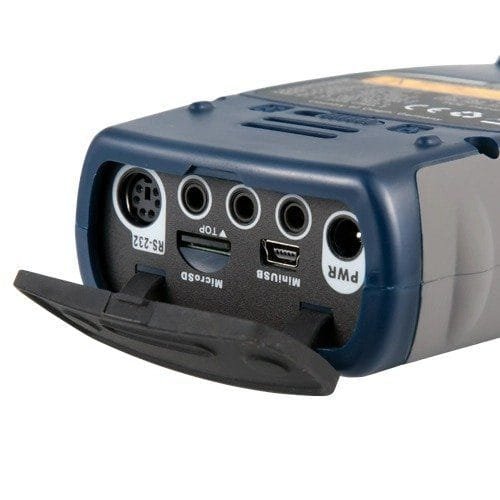

The handheld environmental meter also functions as a data logger, recording measurements at an adjustable interval from 1 s … 24 h and storing the recorded measurement data to a micro SD card memory. The SD card can be removed from the meter and inserted into the SD card reader of a PC. Alternatively, the decibel meter can be connected directly to a PC via USB. The provided PC-compatible software allows for quick and easy data analysis.
This device measures from 25 … 136 dB(A) at a frequency of 20 Hz … 12.5 kHz. The meter features A, B, C and Z frequency weightings as well as fast, slow and impulse time weightings. The PCE-428 decibel meter is commonly used by professionals to ensure compliance with environmental noise regulations and workplace noise permissible exposure limits.
Environmental Testers / Physical Property/Sound Level Meters Template | |
|---|---|
| Minimum Sound Level | 25 dB |
| Maximum Sound Level | 136 dB |
| Display (Sound Level Meter) | Digital |
| A Frequency Weighting | Yes |
| B Frequency Weighting | Yes |
| C Frequency Weighting | Yes |
| Frequency Range Max | 20 kHz (20000 Hz) |
| Accuracy | Class 2 |
| Fast/Slow Time Adjustment | Yes |
| Min/Max Display | Yes |
| Tripod Mount | Yes |
| Type (Sound Level Meter) | II |
Product General Attributes | |
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Interfaces I/O | USB |
| Storage | Micro SD |
| IP Rating | IP65 |
| Product Weight | 1.4 LBS |
| Product Height | 11.81 IN |
| Product Length | 1.42 IN |
| Product Width | 2.76 IN |
| Data Logging | Yes |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
You must be logged in to post a review.
Manuals/Guides
| Weight | 1.4 lbs |
|---|---|
| Dimensions | 1.42 × 2.76 × 11.81 in |
