PCE PCE-AT 5 – Condition Monitoring Rotation Meter
8 people are viewing this product right now
$71.00
Shipping calculated at checkout.
Estimated delivery:5 days
Condition Monitoring Rotation Meter
- Measuring range: 100 – 20,000 rpm
- Resolution: 1 rpm
- Measurement intervals: 0.5 seconds
- Measures revolutions in all common combustion engines with electric ignition starters
- Compatible with one-cylinder two-stroke engines as well as eight-cylinder four-stroke engines

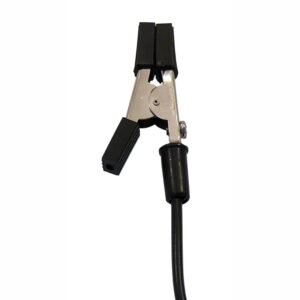

- 1.1 m / .04 in cable with inductive clip to be placed on ignition cable
- 6-digit backlit LCD display and flashlight functionality for low-light applications
- Durable ABS plastic housing ensures longevity
Guarantee Safe and Secure Payment Checkout
Description
PCE PCE-AT 5
- Measuring range: 100 – 20,000 rpm
- Resolution: 1 rpm
- Measurement intervals: 0.5 seconds
- Measures revolutions in all common combustion engines with electric ignition starters
- Compatible with one-cylinder two-stroke engines as well as eight-cylinder four-stroke engines
Condition Monitoring Rotation Meter
Measures revolutions in one-cylinder two-stroke and eight-cylinder four-stroke combustion engines with electric ignition starters
The PCE-AT 5 condition monitoring rotation meter is a portable compact device used to measure revolutions per minute (rpm) in one-cylinder two-stroke and eight-cylinder four-stroke combustion engines with electric ignition starters. The PCE-AT 5 handheld automotive ignition tachometer features an easy-to-read, backlit digital LCD and flashlight functionality for low-light applications. When the inductive clip is placed on the ignition cable, revolutions are measured quickly and easily. Compatible with motorcycles, cars, trucks, and more, the PCE-AT 5 rotation meter is a versatile tool for use in garages, repair shops, factories, and research and development (R&D) laboratories alike.
Reliability / Preventative Maint / Rotational/Tachometers Template | |
|---|---|
| Detection Type | Contact |
| Display (Tachometer) | LCD |
| Style of Tachometer | Handheld |
| Max RPM | 20000 RPM |
| Min RPM | 100 RPM |
| Accuracy for Tachmometers | ± 10 rpm |
| Housing | Plastic |
Product General Attributes | |
| Warranty | 2 YEARS |
| Product Weight | 177 GRAMS (0.390 LBS) |
| Product Height | 6.3 IN |
| Product Length | 2.3 IN |
| Product Width | 1.5 IN |
| Shipping Weight | 2.80 LBS |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Shipping Length | 10.00 IN |
| Shipping Width | 6.00 IN |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 177 lbs |
|---|---|
| Dimensions | 2.3 × 1.5 × 6.3 in |
