PCE PCE-CM 3 – Fork Current Clamp Meter (200A AC)

• Up to 200A AC measurement
• AC / DC voltage measurements
• DC measuring range: 4V DC, 40V DC, 400V DC, 600V DC
• AC measuring range: 4V AC, 40V AC, 400V AC, 600V AC
• Resistance measuring range: 400 ohms, 4 k ohms, 40 k ohms, 400 k ohms, 4 M ohms, 40 m ohms

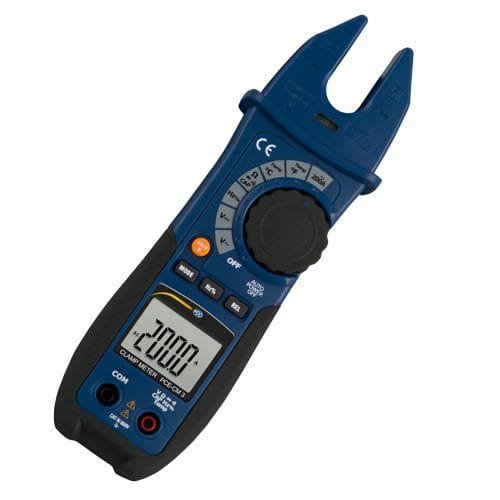

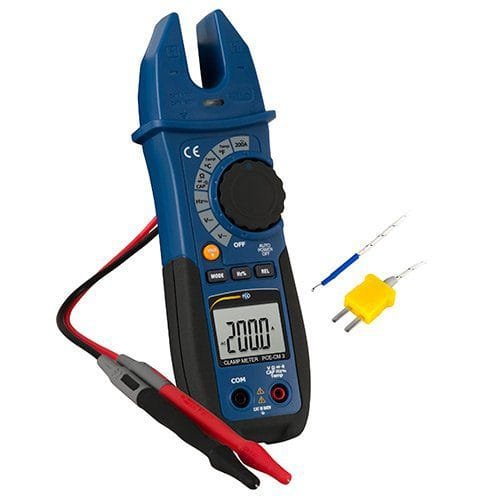

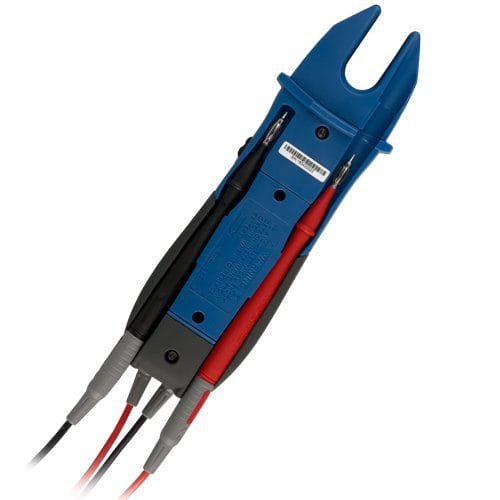

Clamp meter PCE-CM 3

Fork Clamp Up to 200 A AC / AC / DC Voltage Measurement / Simple Current Measurement / LC display / Continuity test / Thermometer

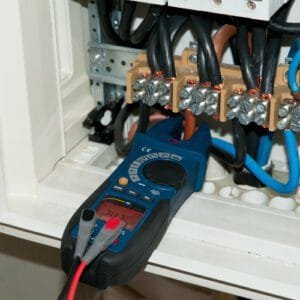

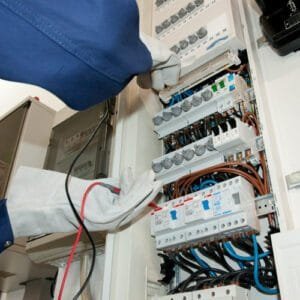

The fork current clamp PCE-CM 3 is used for quick and easy AC measurements. For current measurement, the fork current clamp is placed over the current-carrying conductor. The PCE-CM 3 Fork Clamp is particularly suitable for the measurement of AC in distributions and wherever circuits must not be interrupted. The current measuring range extends from 0 … 200 A. In addition to the current measurement, the fork current clamp can be used to measure DC and AC voltages up to 600V, resistances, capacitances and even temperatures. The measured values ​​are displayed on the illuminated display of the fork current clamp.

The compact dimensions and the low weight distinguish this current clamp as well as the robust housing. This makes the PCE-CM 3 fork clamps the perfect companion for installers and service technicians.
