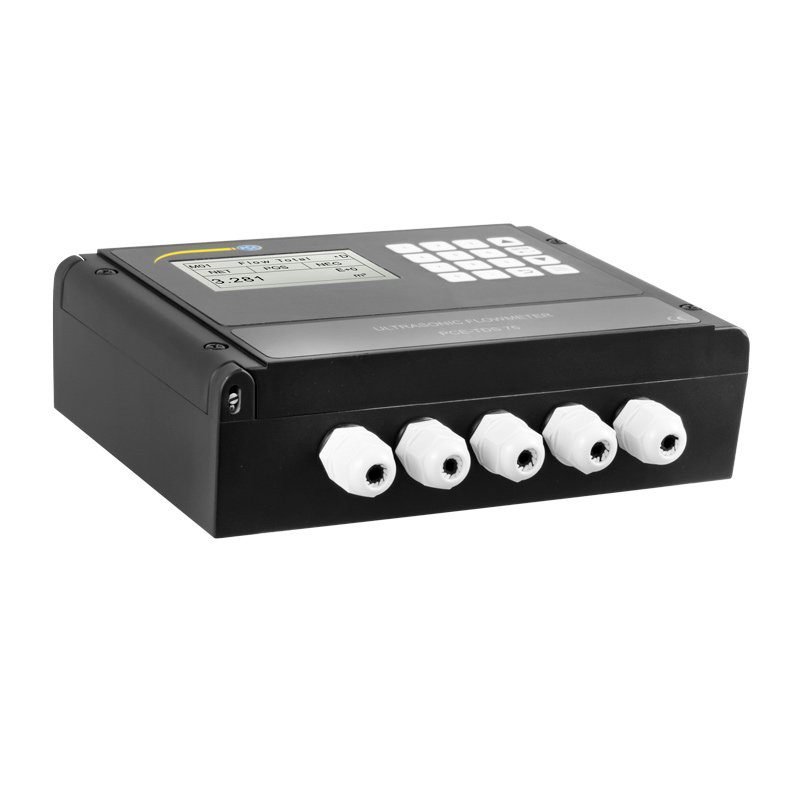

PCE PCE-TDS 75 – Ultrasonic Flow Meter for Fixed Installation
35 people are viewing this product right now
$2,059.07
Shipping calculated at checkout.
Estimated delivery:3 days
Ultrasonic Flow Meter for Fixed Installation
- Measures flow rate of liquids in pipes 25-1200 mm (1-47.2 inches) in diameter
- Two flow sensors included
- Various output signal options for process control connection – Analog, pulse, or relay
- RS232 & RS485 communication interface
- Power supply: 10-36V DC, power consumption: 1A
- Sensors mount directly on pipes without having to cut them open
- Measurement accuracy of ±1% of measured value
- LCD with backlight, 256 x 128 pixels
- Wall mounting set and hose clamps (2) included
- Housing protection class: IP 65, Sensor protection class: IP 68
Guarantee Safe and Secure Payment Checkout
Description
PCE PCE-TDS 75
- Measures flow rate of liquids in pipes 25-1200 mm (1-47.2 inches) in diameter
- Two flow sensors included (9 m cable length)
- Various output signal options for process control connection – Analog, pulse, relay
- RS232 & RS485 communication interface
- Power supply: 10-36V DC, power consumption: 1A
Ultrasonic Flow Meter for Fixed Installation
The PCE-TDS 75 is an ultrasonic flow meter for fixed installation that measures the flow rate of liquids in pipes from 25 – 1200 mm (1- 47.2 inches) in diameter. The sensors from the flow meter can be mounted directly on the pipes without having to cut them open, enabling installation even during operation.
The PCE-TDS 75 offers various output signal options. The flow rate can be converted into an analog 4-20 mA signal. Any other measurement can be transmitted via the pulse output (OCT) from the flow meter. It is possible to receive the measured values directly via the Modbus outputs RS232 and RS485. This allows the flow meter to be integrated directly into the process control.
Product General Attributes | |
|---|---|
| Warranty Details | Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty |
| IP Rating | IP65, IP68 |
| Product Weight | 7.1 LBS |
| Product Height | 9.1 IN |
| Product Length | 11 IN |
| Product Width | 6.3 IN |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 7.1 lbs |
|---|---|
| Dimensions | 11 × 6.3 × 9.1 in |
