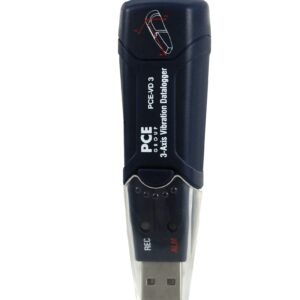

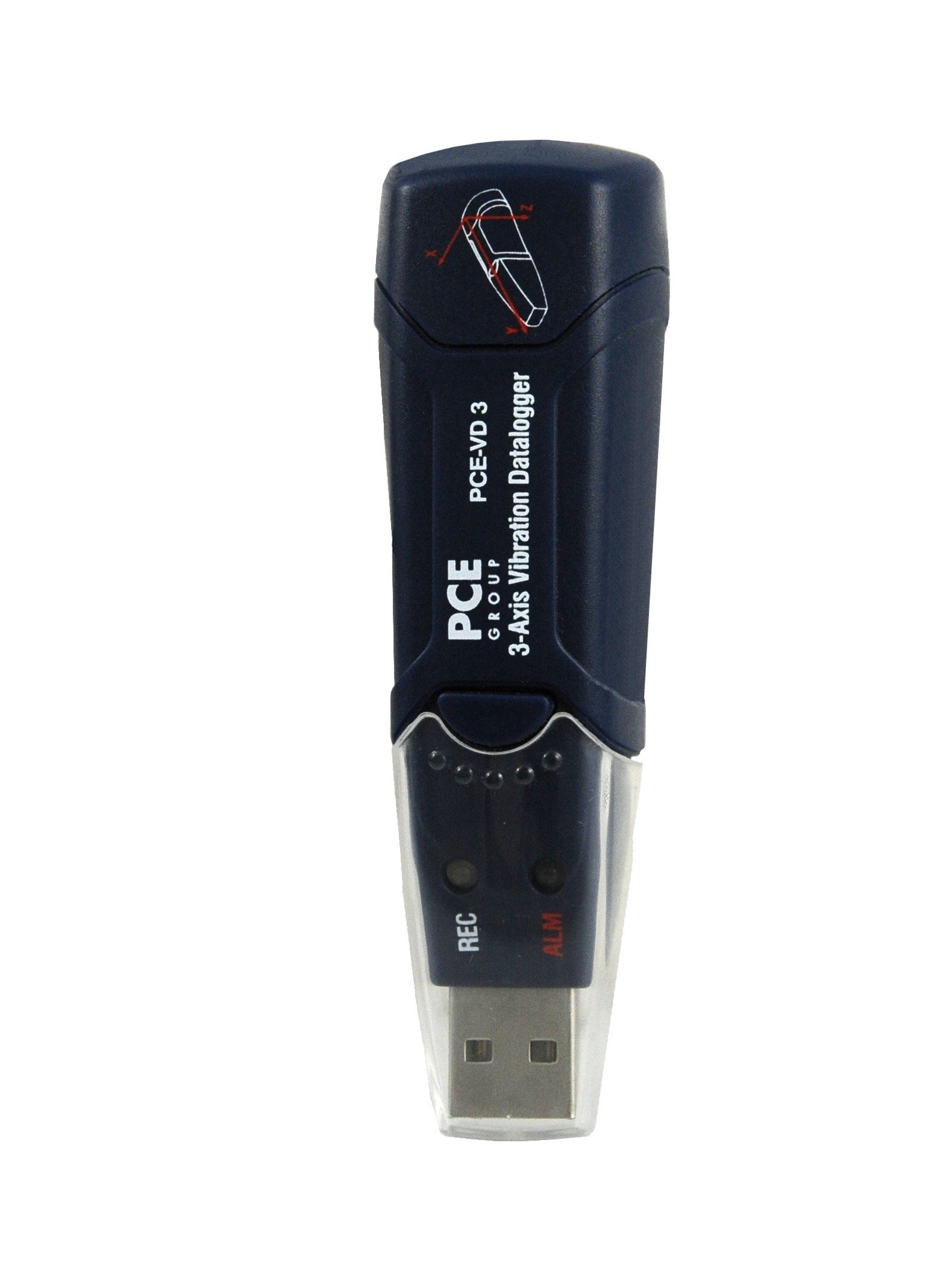

PCE PCE-VD 3 – Compact 3-Axis Vibration Recorder

• Compact, light-weight vibration recorder with built-in sensor
• Measures 3-axis acceleration/shock
• Easily programmed through the included software
• Magnetic mount allows easy placement
• Storage capacity of 8Mbit (up to 168,042 records)

The PCE-VD 3 is a compact, light-weight vibration recorder that measures and records three axis acceleration with a measurement range of ±16 g per axis and accuracy of ±0.5 g. It has 8Mbit of memory and can hold up to 168,042 normal measuring mode records or 112,028 motion detection records. The recorder is programmed easily through the included software via USB to computer connection. Recorded data is sent to a computer via the USB port.

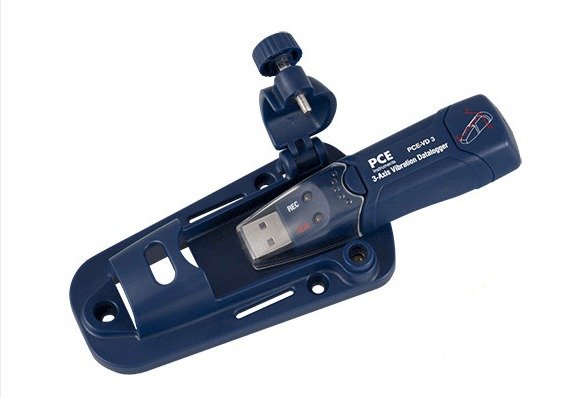

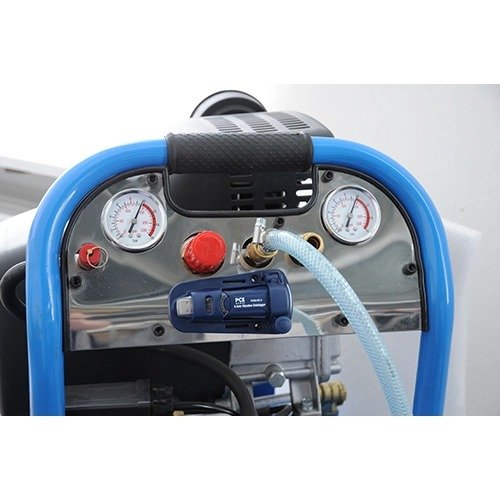

The PCE-VD 3 vibration recorder can be placed almost anywhere due to its robust, magnetic bracket. Due to its small size and light weight, the vibration recorder can be used for many different applications, such as shipment control, sports, medicine, endurance testing, or for any application requiring the recording of movements of 1 to 3 axes.

Functions Overview

• Records 3-axis shock/vibration
• Built-in accelerometers
• Measures dynamic and static acceleration
• Real-time operation
• Normal and motion detection mode
• Real-time FFT for frequency analysis
• Manual and automatic start

Please note, in motion detection mode, the recorder only takes data when the trigger level (user preset) is exceeded.
