PCE PCE-VDL 16I – Vibration Data Logger with Temperature, Humidity, Air Pressure, 3-Axis Acceleration and Light Measurement

• Measures 3-axis Acceleration, sampling rate up to 800 Hz
• Measures temperature, humidity, air pressure, and light (lux), sampling rate up to 1 Hz
• 32 GB SD memory card for data logging included,
• USB – USB Micro cable and PC software included
• Sensor and logging settings are set via the software

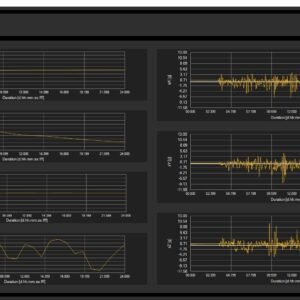

The PCE-VDL 16I is a vibration data logger that measures three-axis acceleration, temperature, humidity, air pressure, and light (lux). The measured values are stored on the included 32 GB SD memory card. PC software and a USB to USB microdata/charging cable are included. With the included software, the sensor and data logging settings can be set including but not limited to record intervals and alarm parameters. The software also allows tabular, statistical, and graphical analysis of the measured values.

The PCE-VDL 16I vibration data logger measures 3-axis acceleration with a max sampling rate of 800 Hz and temperature, humidity, air pressure, and light with a max sampling rate of 1 Hz. It is ideal for use in fault diagnosis, stress testing, machine inspection, shock measurements, and preventative maintenance.

Please note, optional magnetic mounting plate shown in images is sold separately.

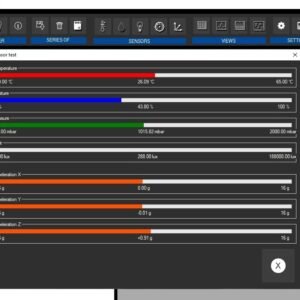

When a connection to the PCE-VDL 16I is active, a window with the current values of all available sensors can be displayed in the software by clicking on the lightbulb icon in the group data logger. The values displayed in that window are continuously queried. This means that the data is live.

1.Data cable/micro-USB connection

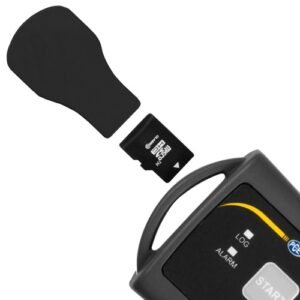

2. SD card slot

3.Log status indicator

4. Alarm indicator (red when limit exceeded)

5. Charge indicator (green when charging)

6. USB indicator (green when connected to PC)

7. On/off

8. Stop (stop the measurement)

9. Start (start the measurement)

10. Humidity Sensor

11. Light sensor
