PCE PCE-VDR 10 – Vibration Meter with Automatic SD Card Data Logging
26 people are viewing this product right now
$1,103.37
Shipping calculated at checkout.
Estimated delivery:3 days
Vibration Meter with Automatic SD Card Data Logging
- Measures acceleration (m/s, g, ft/s) and velocity (mm/s, cm/s, in/s)
- Automatic SD card data logging (adjustable from 5 – 3600 seconds)
- To set up SD card for the 1st time the meter must be connected to AC power (adapter sold separately)

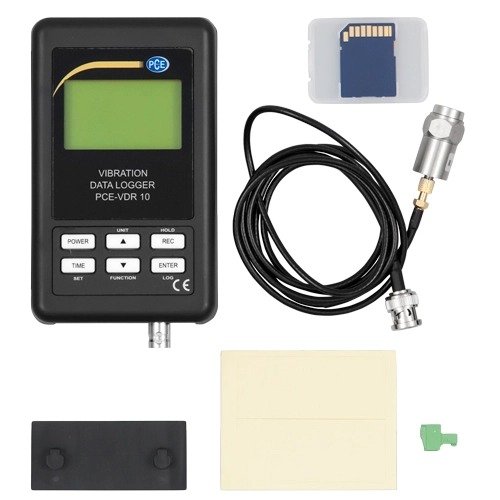

- Vibration sensor and magnetic base included
- RMS, max hold, peak value measurements
- Min/max memory function with recall; data hold button
- Frequency range: 10 Hz – 1kHz
- Import data from SD card to Excel for further data or graphic analysis
- Easy-to-read backlit LCD
- Auto-off or manual power off option
Guarantee Safe and Secure Payment Checkout
Description
PCE PCE-VDR 10
- Measures acceleration (m/s, g, ft/s) and velocity (mm/s, cm/s, in/s)
- Automatic SD card data logging (adjustable from 5 – 3600 seconds)
- To set up the SD card for the 1st time the meter must be connected to AC power (adapter sold separately)
- The vibration sensor and magnetic base included
- RMS, max hold, peak value measurements
Vibration Meter with Automatic SD Card Data Logging
The PCE-VDR 10 is a vibration meter and SD card data logger that measures acceleration and velocity in metric or imperial units. A vibration sensor and magnetic base are included with the meter. The sampling time for the real-time data recording meter with built-in clock and calendar can be set from 5 – 3600 seconds.
The PCE-VDR 10 features RMS, max hold and peak value measurement functions. It also has a min/max memory function with recall and data hold button, as well as a max hold reset and zero buttons.
Measurement Specifications
| Unit | Acceleration | Velocity |
| m/s2 | 0.5 to 199.9 | |
| g | 0.05 to 20.39 | |
| ft/s2 | 2 to 656 | |
| mm/s | 0.5 to 199.9 | |
| cm/s | 0.05 to 19.99 | |
| inch/s | 0.02 to 7.87 |
Accuracy: ± ( 5%rdg + 2 d ) @80 and 160Hz
Reliability / Preventative Maint / Rotational/Vibration Meter Template | |
|---|---|
| Frequency Range | 1 kHz (1000 Hz) |
Product General Attributes | |
| Interfaces I/O | RS-232, USB |
| Product Weight | 199 GRAMS (0.439 LBS) |
| Product Height | 5.20 IN |
| Product Length | 3.15 IN |
| Product Width | 1.26 IN |
| Shipping Weight | 2.80 LBS |
| Data Logging | Yes |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Shipping Height | 4.00 IN |
| Shipping Length | 9.00 IN |
| Shipping Width | 3.00 IN |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 199 lbs |
|---|---|
| Dimensions | 3.15 × 1.26 × 5.2 in |
