Description
PCE PCE-VM 20
- Measures vibration acceleration, velocity, displacement, frequency, amplitude
- Real-time FFT spectrum
- Metric units (Hz, mm/s², mm/s, μm, RPM, Hz)
- Route mode for route-based data acquisition
- Readings are evaluated and classified by colors according to ISO 10816
Vibration Meter with Real-time FFT Analysis

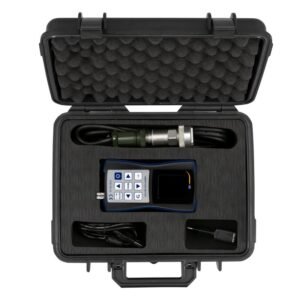

The PCE-VM 20 is a compact vibration meter that measures all vibration parameters (acceleration, velocity, displacement, frequency, amplitude). Via Fast Fourier Transformation (FFT), machine vibration is directly analyzed and represented graphically. The graphical representation can be adapted to the respective vibration mode. In line with the standard ISO 10816, the readings are also evaluated and classified by colors. For machine monitoring, the meter has a route mode for route-based data acquisition and the collected data can be organized via the included computer software.
The PCE-VM 20 vibration meter can evaluate and display signals from IEPE standard piezoelectric vibration sensors as well as piezoelectric vibration sensors with charge output.Â
ISO 10816 Analysis Mode
In ISO 10816 analysis mode, readings are compared to the following chart according to the standard ISO 10816. As shown in the following images, in ISO 10816 mode the meter will show the current RMS value in the color it has in the ISO 10816 chart.
Reliability / Preventative Maint / Rotational/Vibration Meter Template | |
|---|---|
| Number of Channels | 1 |
Product General Attributes | |
| Unique Features | Real-time FFT analysis |
| IP Rating | IP68 |
| Product Weight | 1 LBS |
| Product Height | 1.3 IN |
| Product Length | 5.2 IN |
| Product Width | 2.8 IN |
| Shipping Weight | 2.80 LBS |
