Description
PCE PCE-VM 5000
- Measures vibration acceleration, velocity and displacement
- 4 channels of simultaneous vibration metering through remote vibration sensors (2 sensors included)
- SD card memory for data recording
- RMS, max hold, peak value
- Metric and Imperial measurement units

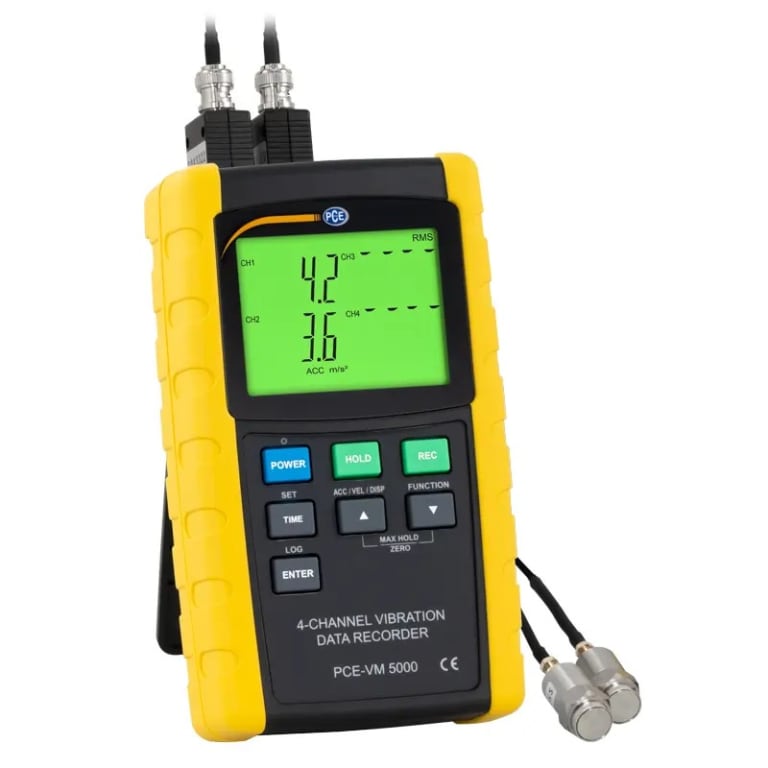

4 Channel Vibration Meter and Data Recorder
The PCE-VM 5000 is a four-channel vibration meter and data recorder that measures vibration acceleration, velocity and displacement. The PCE-VM 5000 indicates on a large, backlit LCD display, up to four channels of simultaneous vibration measurements from remote vibration sensors. Two sensors are included with the meter. The Vibration Meter measures in a frequency range of 10 Hz to 1 kHz for speed, acceleration, and displacement. Measurement units can be changed by the user: for acceleration, the units m/s², g, and ft/s² are able to be selected, for speed, mm/s, cm/s and inches/s, and for the displacement, mm and inches.
The measured values are saved on an SD memory card. Storage can be set to automatic or manual. For auto logging, the sampling time can be set from 1 second to 3600 seconds. Stored values are saved as XLS files for further analysis with Excel.
Measurement Specifications
| Range | Accuracy | Frequency | |
| Acceleration | 0.5 – 199.9 m/s2 | ±5 % rdg + 5 d @ 80 and 160 Hz | 10Hz – 1kHz |
| Velocity | 0.5 – 199.9 mm/s | ±5 % rdg + 5 d @ 80 and 160 Hz | 10Hz – 1kHz |
| Displacement | 1.999 mm | ±5 % rdg + 5 d @ 80 and 160 Hz | 10Hz – 1kHz |

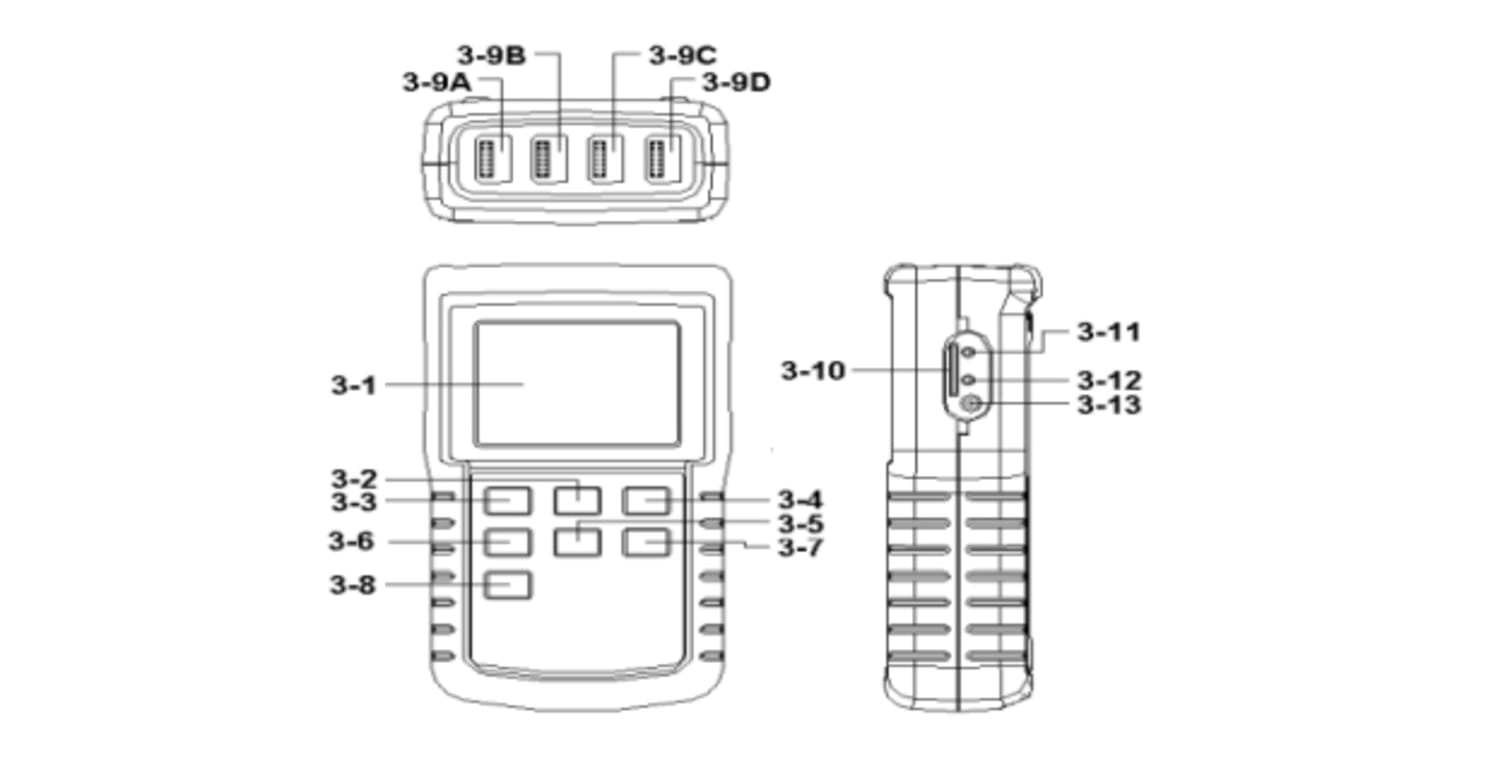

Front, Side and Bottom Panel Description
- 3-1. Display
- 3-2. Power Button/Backlight button
- 3-3. Hold button
- 3-4. REC button
- 3-5. ACC/VEL/DISP button
- 3-6. Set button
- 3-7. Function button
- 3-8. Log button
- 3-9A. CH1 VB-83 socket
- 3-9B. CH2 VB-83 socket
- 3-9C. CH3 VB-83 socket
- 3-9D. CH4 VB-83 socket
- 3-10. SD Card Port
- 3-11. RS-232 output terminal
- 3-12. Reset button
- 3-13. DC 9V power adapter socket
Back Panel and Sensor/Cable Description
- 3-14. Battery cover
- 3-15. Battery cover screws
- 3-16. Stand
- 3-17. Magnetic base
- 3-18. Vibration sensor
- 3-19. Sensor socket
- 3-20. Mini plug
- 3-21. Sensor cable
- 3-22. BNC plug
- 3-23. BNC socket
- 3-24. VB-83 plug
Reliability / Preventative Maint / Rotational/Vibration Meter Template | |
|---|---|
| Number of Channels | 4 |
| Peak/Hold | Yes |
Product General Attributes | |
| Product Weight | 1.1 LBS |
| Shipping Weight | 2.80 LBS |
| Battery Type | AA |
