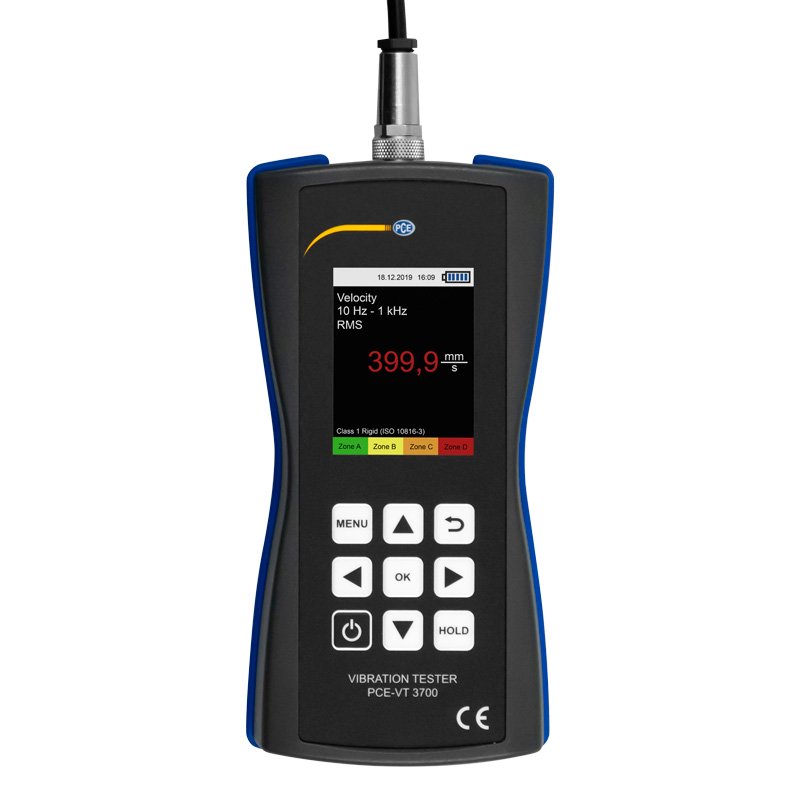

PCE PCE-VT 3700 – Vibration Meter

• Measures vibration acceleration, velocity, and displacement
• Measurement range: acceleration 0.0 – 399.9 m/s2, velocity 0.00 – 399.99 mm/s
• Displacement measurement range: 0.000 – 3.999 mm
• Results display on the 2.4-inch LCD screen
• Measurement parameters: RMS, peak, peak-peak, crest factor

The PCE-VT 3700 is a vibration meter that measures vibration acceleration, vibration velocity, and vibration displacement. It is ideal for users to quickly check vibrating parts, machines, and systems and view the measured values directly on the LCD screen. The PCE-VT 3700 can be used to quickly and reliably detect machine imbalances that can lead to, for example, bearing damage. The vibration meter is equipped with a mode that allows a measurement according to ISO 10816-3 to be carried out. The vibration meter analyzes the measured values and automatically shows a good/bad evaluation on display.

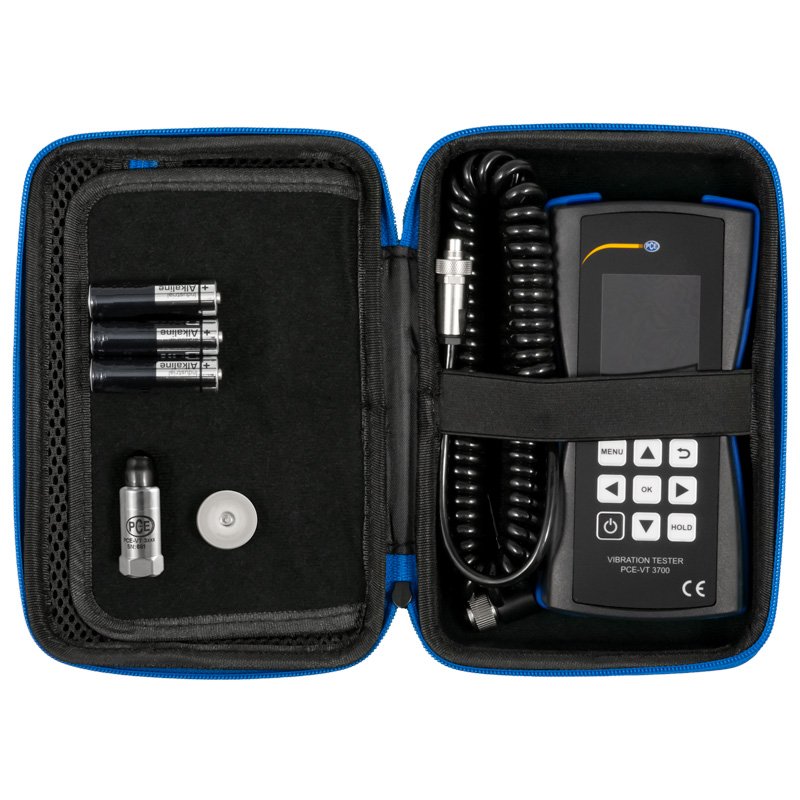

The vibration meter is supplied with a sensor on a spiral cable, magnet adapter, service bag, and batteries. The display of the vibration meter is a colored graphic display, which makes operation easier since all instructions and menu items are shown in plain text. The 12 available languages in the menu of the vibration meter are easily switchable.
