Description
PCE PCE-VT 3900
- Measuring range up to 399.9 m/s² / 15744 in/s²
- FFT analysis
- Route measurement
- Manual measured value memory, can be transferred via micro-USB
- Automatic ISO 10816-3 evaluation
Vibration Meter
The PCE-VT 3900 is a vibration meter ideal for fast and precise measurement of vibrating parts, machines and systems. This vibration meter uses the external vibration sensor to determine the vibration displacement (measuring range 0.000 to 3.9 mm), the vibration velocity (measuring range 0.00 to 399.9 mm/s) and the vibration acceleration (measuring range 0.0 to 399.9 m/s²). Various measurement parameters are available for the vibration meter, such as RMS, peak, peak-peak and crest factor. The vibration meter is equipped with a mode that allows a measurement to be automatically evaluated according to the limit values of ISO 10816-3. The vibration meter analyzes the measured values and shows a corresponding good/bad rating on the display. The built-in battery in the vibration measuring device has a capacity of 2500 mAh and can be recharged directly via the built-in micro-USB interface.
FFT Analysis and Route Measurement Functions
In addition to the normal measuring mode, the vibration meter has an FFT mode. In the FFT mode, the frequency spectrum for the measured vibration speed or vibration acceleration is calculated and displayed.
The calculated FFT lines are displayed in a graphic representation in an overall view for the entire frequency band and in a zoom view to display the individual lines.
An additional function is route measurement. The route measurement is specially designed for recurring measurements at identical measuring points. This enables an orderly measurement of different measuring points. Because of its extensive measuring functions, the PCE-VT 3900 is ideal for maintenance and repair work on machines.
Measurement Specifications
Acceleration | Velocity | Rotational Speed | Displacement | |
| Range | 0.0 – 399.9 m/s2 | 0.00-399.99mm/s | 600-50000 RPM | 0.000-3.9 mm |
| Resolution | 0.1 m/s2 | 0.1 mm/s | 1 µm / 39.4 µin | |
| Accuracy | ±2 % (@160Hz) | ±2 % (@160Hz) | ±2 % (@160Hz) | |
| Frequency | 10Hz–10kHz, 1kHz-10kHz | 10Hz-1kHz | 10Hz-200Hz |
FFT Acceleration: 10 Hz – 8 kHz
FFT Velocity: 10 Hz – 1 kHz
Number of FFT lines: 2048
Route Measurement: 100 routes each with 100 machines each with 100 measuring points with 1000 measured values each
1.Sensor connector
2.Display
3.Function keys

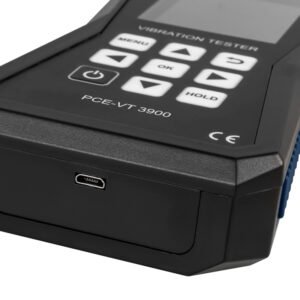

4.USB port
5.Sensor cable
6.Vibration sensor
Magnet adapter
Data Storage and Transfer
The measurement data displayed for the various measurement functions can be stored in the internal memory of the vibration meter. After a measurement, the measurement data stored on the vibration meter can be transferred to a PC via the built-in micro-USB interface. The software for the vibration meter then enables a graphic and tabular analysis of the measured values. The software can export the measurement data as a CSV file for further processing. In order to keep the vibration measuring device up to date, the software can also perform an automatic firmware update in addition to analyzing the measurement data.
Reliability / Preventative Maint / Rotational/Vibration Meter Template | |
|---|---|
| Velocity Range | 399.99 RPM |
| Velocity Resolution | 0.1 mm/sec |
| Accerlation Range | 399.9 m/sec2 |
| Accerlation Resolution | 0.1 m/sec2 |
| Number of Channels | 1 |
Product General Attributes | |
| Unique Features | FFT Analysis Rotational Speed: 600-50000 RPM |
| Warranty Details | Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. |
| Product Weight | 0.526905 LBS |
| Product Height | 6.5 IN |
| Product Length | 3.3 IN |
| Product Width | 1.3 IN |
| Shipping Weight | 2.80 LBS |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
