PCE PCE-WO2 10 – Portable Dissolved Oxygen Meter

• Measures oxygen content, oxygen saturation and sample temperature in water
• Range: oxygen content 0 – 20 mg/l, oxygen saturation 0 – 200%
• Resolution: oxygen content 0.1 mg/l, oxygen saturation 0.1%
• Accuracy: oxygen content ±0.5 mg/l, oxygen saturation ±2.0 %
• Temperature compensation: 32-104°F (0-40°C), automatic

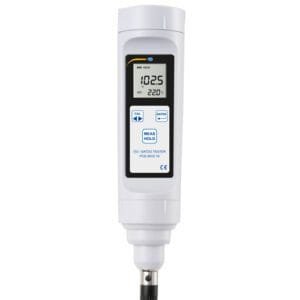

The PCE-WO2 10 is a portable dissolved oxygen meter that provides measurement of oxygen content, oxygen saturation, and sample temperature in water. Measured values are displayed in real time on the LCD screen. The meter features a hold function that allows measured values to be recorded with the touch of a button. One- or two-point calibration can be achieved quickly in the air.

The simple three button design makes the PCE-WO2 10 oxygen meter easy-to-use. The LCD display clearly shows the measured values, mode icons and battery level indicator. The unit features an automatic shutdown feature to preserve the battery life when not in use.

MEAS/HOLD

Switches the unit on/off, Locks the measured value, Returns to measurement mode

CAL

Press to start calibration, Press and hold to enter the setup menu, In setting mode, press to select the default option

Enter

Confirms the calibration or selected option

The oxygen content is the concentration of dissolved oxygen in the water. Most organisms require a minimum concentration of dissolved oxygen in the water to live. Oxygen is absorbed from the atmosphere, whereby the oxygen uptake mainly depends on the size of the water surface, the water temperature, the saturation deficit, the water turbulence and the air movement. The oxygen meter is indispensable in the analysis of different waters. This includes industrial wastewater, pond water, sewage and municipal wastewater. In addition to these applications, the oxygen meter PCE-WO2 10 also plays an important role in businesses. For example, the corrosion in pipelines has to be considered. Even in the private sector, the oxygen meter is a useful tool in fields such as fish farming or private aquaristics.
