PCE PCE-XXM 30 – Colorimeter with Bluetooth, 400 – 700 nm

• Fast and precise color measurements of surfaces
• Color ranges: CIE-LAB, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy RGB
• Wavelength: 400 – 700 nm
• Light source: LED (full and visible wavelength range)
• Bluetooth interface; free Android app *app required to use all features

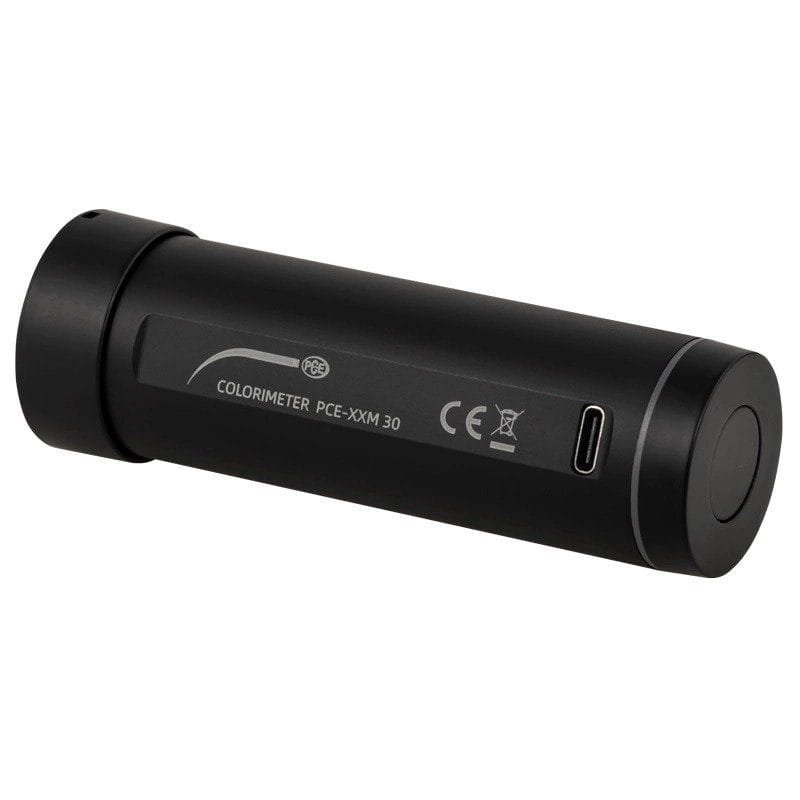

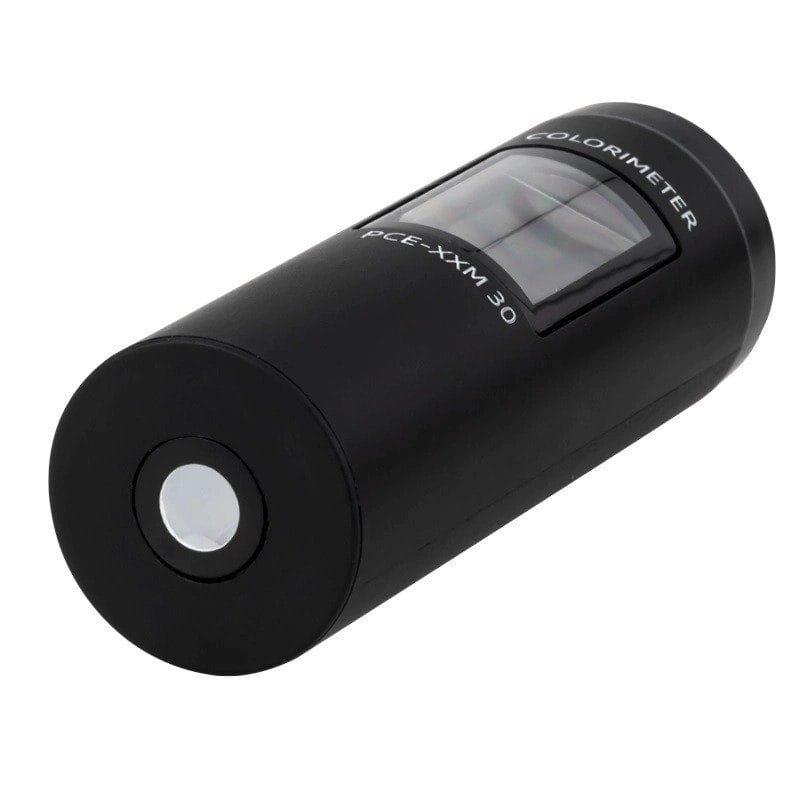

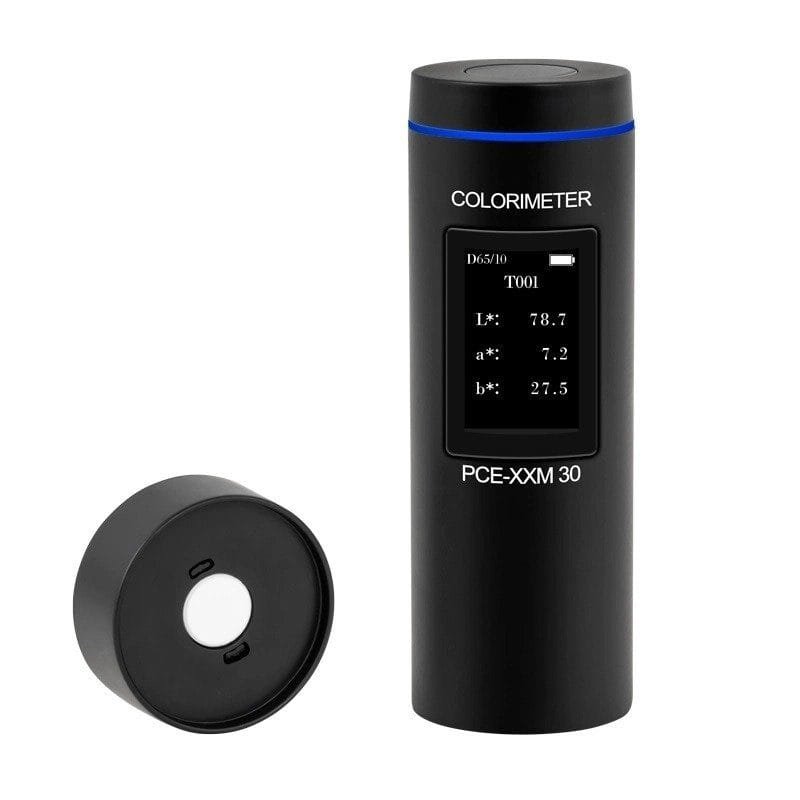

The PCE PCE-XXM 30 is a colorimeter designed to carry out fast and precise color measurements of surfaces. The built-in LED light source provides a wavelength of 400 to 700 nm. The measurement aperture is 8 mm. Despite the PCE-XXM 30’s compact design, the colorimeter has a repeatability of ΔE* from ≤0.1. The color ranges CIE-LAB, CIE-LCh, HunterLab, CIE-Luv, XYZ, and RGB of the color can be determined with the colorimeter. The battery life of the colorimeter is approximately 10,000 measurements. If the battery is discharged, it can be recharged in the colorimeter via the USB-C interface.

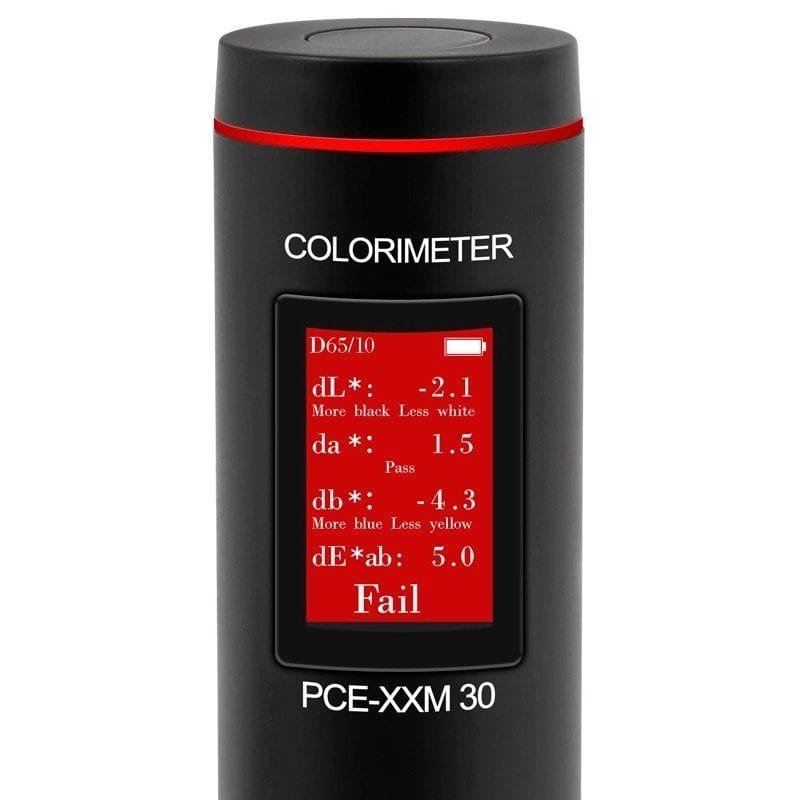

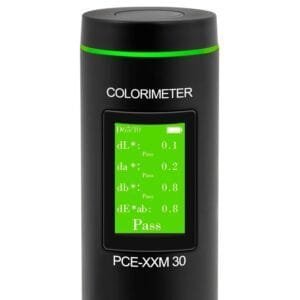

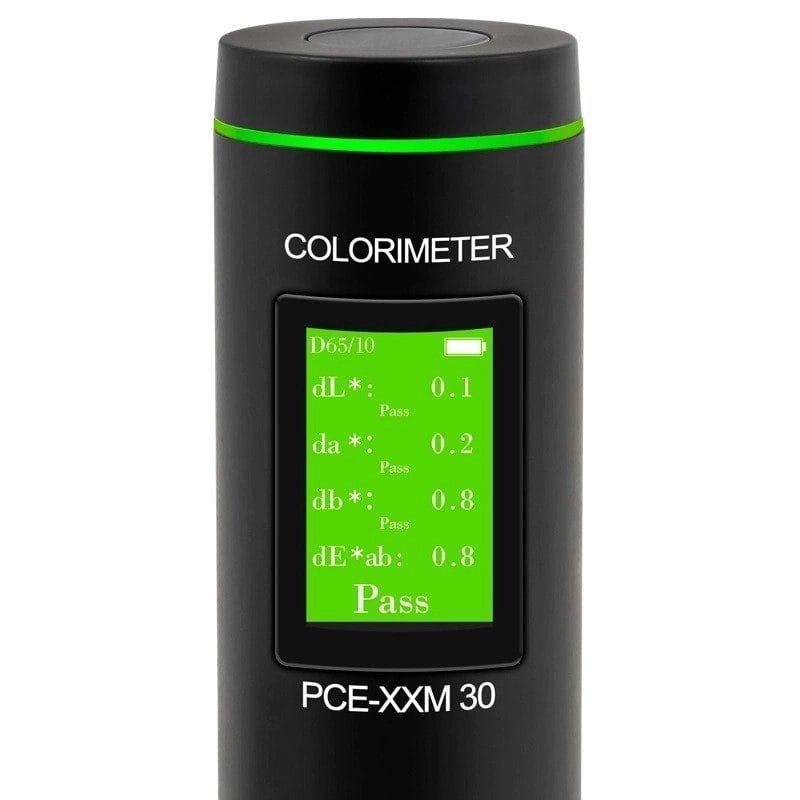

In addition to normal color measurement, the colorimeter can also determine color differences. For this purpose, a reference measurement is first carried out with the colorimeter on any reference. Then measurements can be carried out on test objects with the colorimeter. The colorimeter in turn shows the difference between the reference and the test item. A permissible tolerance can also be stored in the colorimeter. If the tolerance is adhered to, this is indicated by a green display on the colorimeter. If the measured color is outside the tolerance, this is indicated by the colorimeter with a red display.

The PCE-XXM 30 is ideal for use in quality control, such as in a print shop to check the print result or in the automotive industry to check the paint that has been sprayed on, as well as any application where color measurement and/or comparison is required.

Through the Bluetooth interface of the colorimeter, a connection to an Android-capable device can be established. The free app for the colorimeter can be downloaded from the Play Store. Measurement parameters can be changed from the app to the colorimeter. In addition, the measurement can be carried out via the app. The measurement result is then displayed directly in the app. For example, measurement comparisons can be carried out via the app to the colorimeter. If measured values ​​are saved on the colorimeter, they can be read out via the app.

*** Free application (for Android, available in Play store) required to use all features
